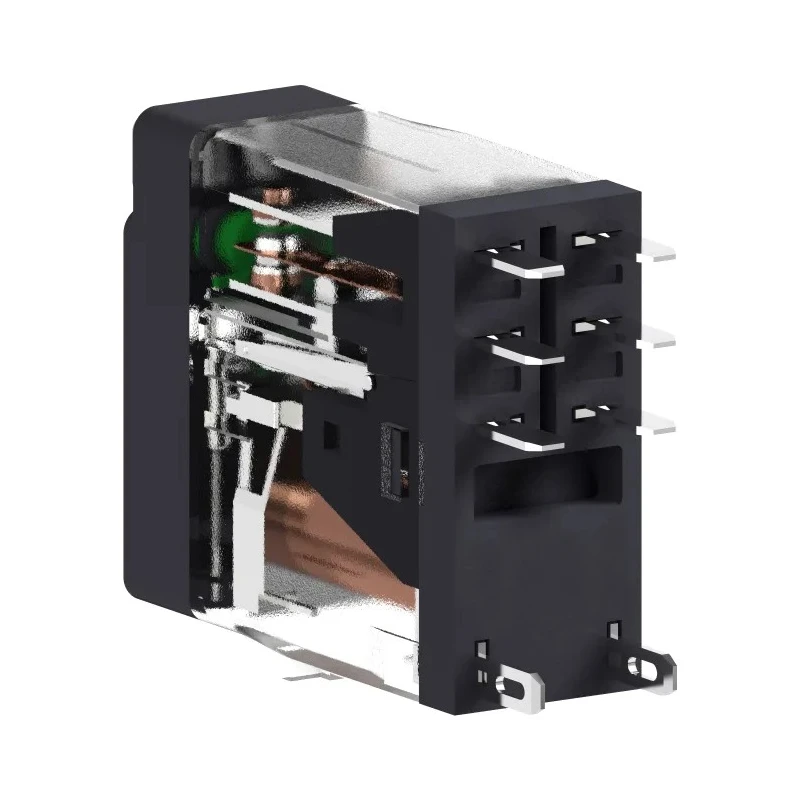

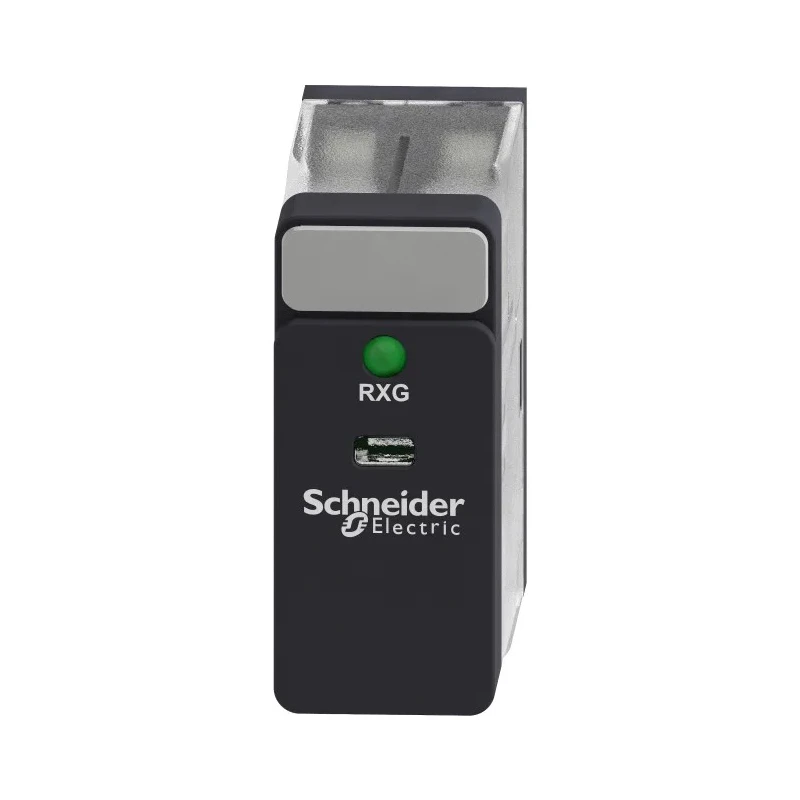

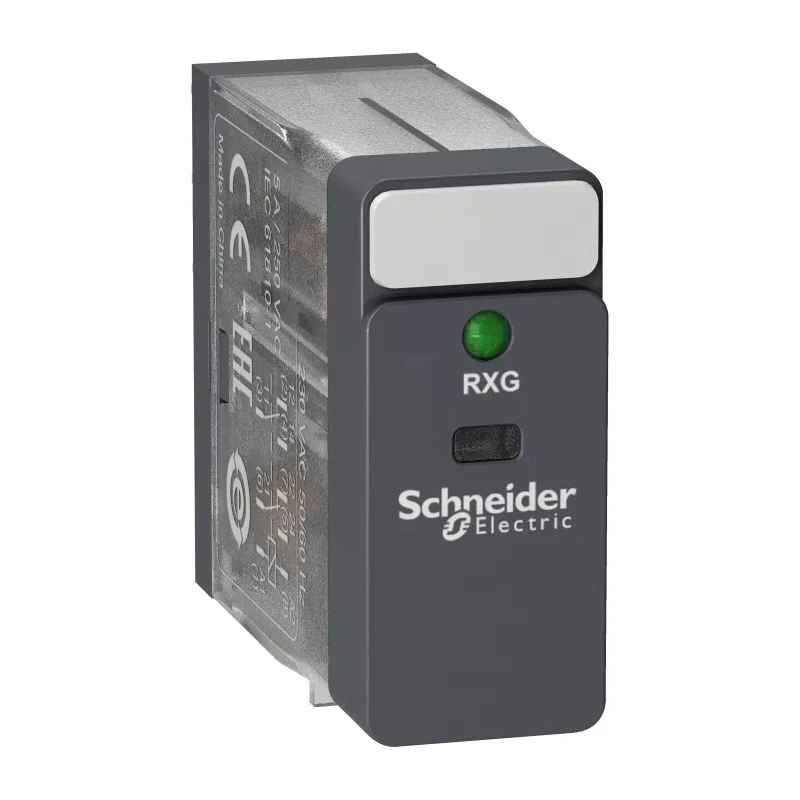

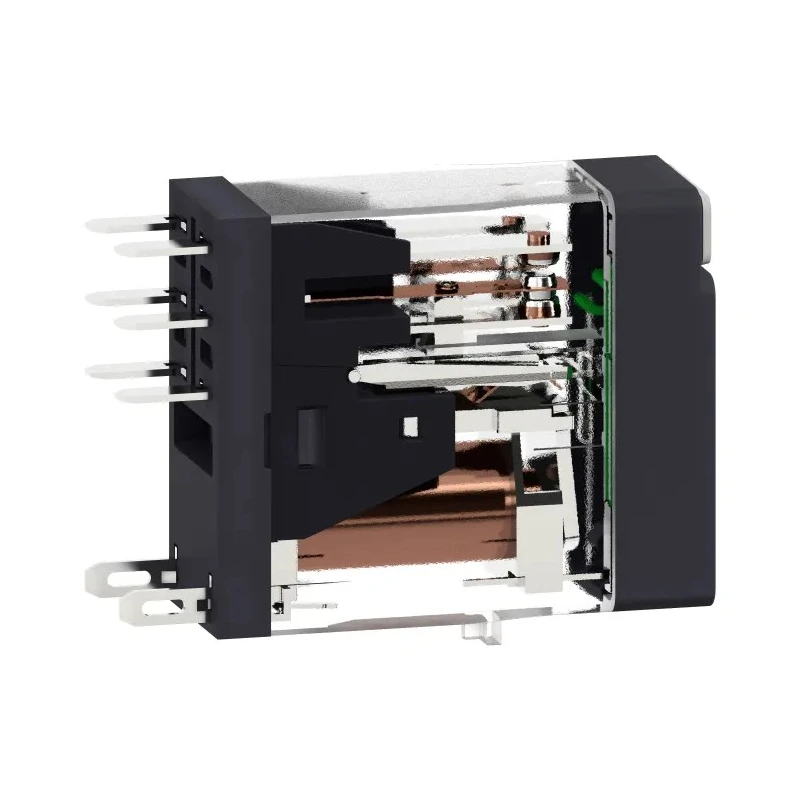

Schneider Electric Power Relay 48V AC Coil 5A Switching Current 2 CO Contacts Harmony Relay RXG RXG23E7
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 30.6mm |
| Length | 13mm |
| Model | RXG23E7 |
| Width | 37.1mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXG |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 2 CO |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Plug-In |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CE, CSA |
| Coil Resistance | 1.1kΩ |
| Coil Voltage | 48V ac |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 820mW |
| Better World Claim | Designed for Disassembly |
Key Features
- Designed for compact, space-saving installations with plug-in terminal type.
- Operates across a wide temperature range from -40°C to 70°C.
- Switching capability supports up to 250V AC and 30V DC voltages.
- Constructed with silver alloy contacts ensuring durability and low contact resistance of 100mΩ.
- Coil power consumption is 820mW with coil resistance at 1.1kΩ for energy-efficient operation.
- Compliant with CE and CSA standards for safety and performance.
- Suitable for use in automation systems, PLC interfaces, and industrial control panels.
Product Description
Schneider Electric RXG23E7 power relay features a 48V AC coil and is equipped with 2 changeover contacts (2 CO) with a switching current rating of 5A, suitable for varied industrial automation and control applications.
This Harmony RXG series plug-in relay offers a compact form factor (37.1mm width, 30.6mm height, and 13mm length) designed to fit space-constrained enclosures, enhancing machine reliability and reducing panel size.
The relay tolerates harsh environments with an operating temperature range from -40°C up to 70°C, making it ideal for demanding electrical and automation uses. It supports switching voltages up to 250V AC and 30V DC, maintaining performance stability.
Constructed with high-quality silver alloy contact material, it provides low contact resistance (100mΩ) ensuring efficient electrical conduction and longevity. Coil power consumption is a low 820mW with a coil resistance of 1.1kΩ, contributing to energy efficiency.
Designed with plug-in faston pin terminals, it enables quick and secure installation, simplifying maintenance and testing. The device is compliant with CE and CSA certification standards, supporting its safety and industrial reliability.
This Schneider Electric relay is commonly used in programmable logic controllers (PLC), relay sockets, interface applications, and industrial control systems to complement hard-wired logic and automation functions effectively.
Designed for compact, space-saving installations with plug-in terminal type. Operates across a wide temperature range from -40°C to 70°C. Switching capability supports up to 250V AC and 30V DC voltages. Constructed with silver alloy contacts ensuring durability and low contact resistance of 100mΩ.
Coil power consumption is 820mW with coil resistance at 1.1kΩ for energy-efficient operation. Compliant with CE and CSA standards for safety and performance. Suitable for use in automation systems, PLC interfaces, and industrial control panels.
Explore EnvMart's extensive range of Power Relays and Schneider Electric automation components for your industrial and electrical control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 48V AC.
The maximum switching current for this model is 5A.
This relay has dimensions of 37.1mm in width, 30.6mm in height, and 13mm in length.
The contact configuration of this relay is 2 changeover contacts (2 CO).
The operating temperature range for this relay is from -40°C to 70°C.
This model uses plug-in faston pin terminals for installation.
The contact material used in this relay is silver alloy.
This relay supports switching voltages up to 250V AC and 30V DC.
The coil power consumption of this relay is 820mW.
The contact resistance of this relay is 100mΩ.
Yes, this relay is compliant with CE and CSA standards for safety and performance.
This relay is suitable for use in automation systems, PLC interfaces, and industrial control panels.
