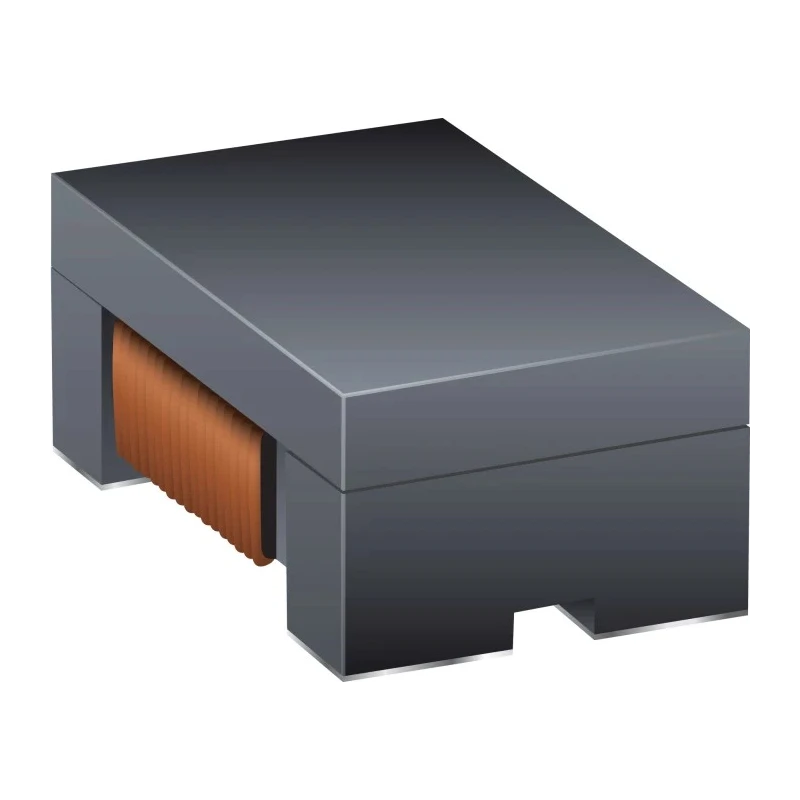

Bourns 4532 Unshielded Surface Mount Inductor Ferrite Core 1µH 25% Tolerance 1.2A Max DC Current SRF4532
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Bourns |
| Height | 2.8mm |
| Length | 4.5mm |
| Model | SRF4532 |
| Depth | 2.8mm |
| Packaging | 500 pieces per 7 in Reel |
| Series | SRF4532 |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 1μH |
| Standards/Approvals | 863, Mar 31, RoHS Directive 2015, 2015 and Annex |
| Package/Case | 4532 |
| Maximum DC Current | 1.2A |
| Maximum DC Resistance | 0.12Ω |
| Inductance Tolerance | 25 % |
| Termination Style | Tin Plated Red Copper(DSn) |
| Inductor Construction | Ferrite Core |
| Automotive Standard | AEC-Q200 |
Key Features
- Unshielded surface mount inductor with ferrite core construction.
- Inductance value of 1 microhenry with 25% tolerance.
- Maximum DC current rating of 1.2 amperes ensures reliable performance.
- Package size is standard 4532 suitable for automated assembly.
- Meets AEC-Q200 automotive standard for high reliability applications.
- Termination style includes tin plated red copper for effective solderability.
- Operating temperature range from -40°C up to 125°C for diverse environments.
- Maximum DC resistance is low at 0.12 ohms to minimize power loss.
Product Description
Bourns SRF4532 is an unshielded surface mount inductor specifically designed with a ferrite core to provide stable inductance of 1 microhenry (µH) with a tolerance of ±25%. This component supports a maximum DC current of 1.2 amperes, making it suitable for a variety of electronic and automotive applications. The inductor encapsulates a ferrite core construction, molded for enhanced mechanical stability and consistent performance across operating conditions.
The 4532 package style measures 4.5mm in length, 2.8mm in height, and 2.8mm in depth, optimized for surface mount technology (SMT) assembly processes. The termination is tin plated red copper (DSn), ensuring superior solderability and durability. This inductor operates reliably within a temperature range of -40°C to 125°C, complying with the AEC-Q200 automotive standard which certifies it for use in automotive electronic systems.
Characterized by a maximum DC resistance of only 0.12 ohms, the inductor demonstrates low power loss and efficient current handling. The product comes supplied in reels containing 500 identical units on a 7-inch reel, ideal for automated placement in manufacturing environments.
Unshielded ferrite core surface mount inductor. 1µH inductance with 25% tolerance for precise circuit performance. Maximum DC current rating of 1.2A supports robust current flow. Standard 4532 package case measuring 4.5mm x 2.8mm x 2.8mm.
Meets AEC-Q200 certification for automotive reliability. Tin plated red copper terminations ensure quality solder joints. Operating temperature range from -40°C to 125°C for harsh environments. Low maximum DC resistance of 0.12 ohms minimizes power dissipation.
Available in 500 piece reels compatible with SMT assembly. Manufactured in Taiwan, Province of China.
This Bourns surface mount inductor is suitable for applications in industrial electronics, automotive power supplies, communication devices, and general electronic circuit design requiring reliable, consistent inductive components. Its ferrite core and unshielded nature make it appropriate for use where low magnetic interference is acceptable. For engineers and designers needing dependable Surface Mount Inductors, the SRF4532 offers an excellent balance of performance and package size.
Explore similar high-quality inductors and other passive components with EnvMart's comprehensive electronics catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This surface mount inductor has an inductance value of 1 microhenry (µH) with a tolerance of ±25%.
The maximum DC current rating for this inductor is 1.2 amperes, allowing for robust current flow in various applications.
The standard package size for this inductor measures 4.5mm in length, 2.8mm in height, and 2.8mm in depth.
It operates reliably within a temperature range of -40°C to 125°C, making it suitable for diverse environments.
This inductor features a ferrite core construction, which provides stable inductance and mechanical stability.
The maximum DC resistance for this model is 0.12 ohms, which helps minimize power loss during operation.
It has a termination style of tin plated red copper, ensuring effective solderability and durability.
Yes, it meets the AEC-Q200 automotive standard, certifying it for high reliability applications in automotive electronics.
The inductor is supplied in reels containing 500 identical units, which is ideal for automated placement in manufacturing environments.
This model is suitable for applications in industrial electronics, automotive power supplies, and communication devices.
This surface mount inductor is manufactured in Taiwan, Province of China.
The series name for this inductor is SRF4532, indicating its specific model within the product line.
