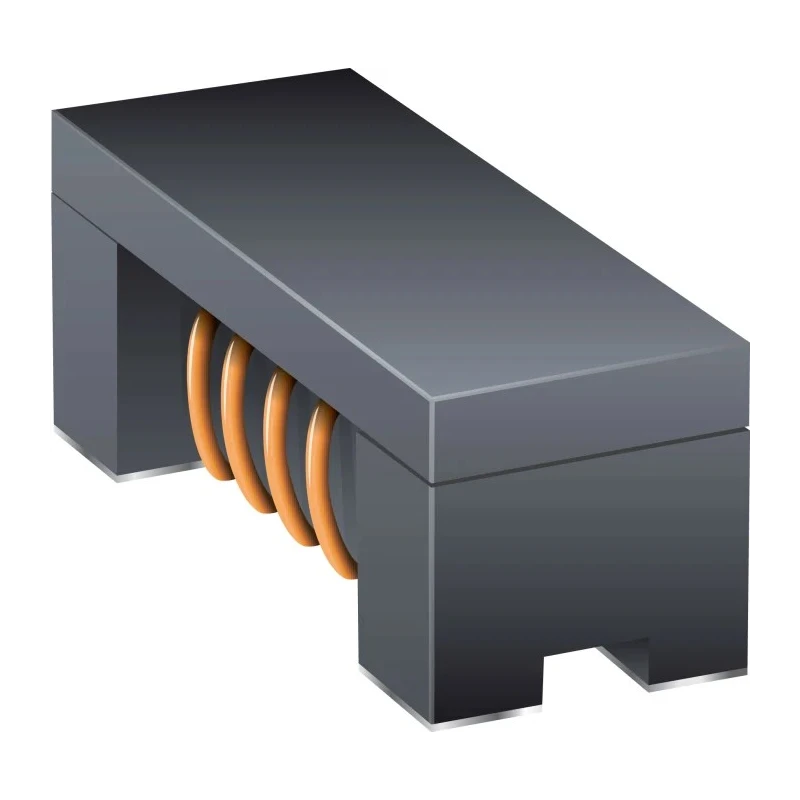

Bourns 3216 Unshielded Surface Mount Inductor with Ferrite Core 25% Inductance Tolerance 200mA Max DC Current SRF3216
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Bourns |
| Height | 2mm |
| Length | 3.2mm |
| Model | SRF3216 |
| Depth | 2mm |
| Packaging | Reel |
| Series | SRF3216 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Standards/Approvals | 2015, 863, Mar 31, RoHS Directive 2015 |
| Package/Case | 3216 |
| Maximum DC Current | 200mA |
| Maximum DC Resistance | 1.2Ω |
| Inductance Tolerance | 25 % |
| Termination Style | Silver/Nickel/Tin |
| Inductor Construction | Ferrite Core |
| Automotive Standard | AEC-Q200 |
Key Features
- Unshielded surface mount design with ferrite core suited for efficient inductance.
- Package size 3216 (3.2mm length) ensures compact PCB layout.
- Maximum DC resistance of 1.2 ohms for low power loss.
- Operating temperature range from -40°C to 125°C allows usage in harsh environments.
- Inductance tolerance of 25 percent for design flexibility.
- Silver/Nickel/Tin termination style for robust solder connections.
- Automotive standard AEC-Q200 qualified.
- Moulded construction for durability and mechanical strength.
Product Description
Bourns SRF3216 is a 3216 unshielded surface mount inductor constructed with a ferrite core. It supports a maximum DC current of 200mA and features an inductance tolerance of 25%. This device meets the automotive standard AEC-Q200 and operates reliably across a temperature range from -40°C to 125°C.
The inductor’s compact 3.2mm length and 2mm height/depth makes it suitable for high-density PCB applications, offering a low maximum DC resistance of 1.2 ohms to minimize energy losses during operation. Its termination style of silver/nickel/tin provides strong solderability for durable electrical connections.
Moulded for improved mechanical stability, this surface mount inductor is ideal for industrial electronics, automotive electronics, telecommunications equipment, and power supply applications requiring robust and compact inductive components.
Packaged on reels, it supports efficient automated PCB assembly processes and inventory management. The ferrite core construction offers effective magnetic properties essential for inductance applications.
Unshielded surface mount design with ferrite core suited for efficient inductance. Package size 3216 (3.2mm length) ensures compact PCB layout. Maximum DC resistance of 1.2 ohms for low power loss. Operating temperature range from -40°C to 125°C allows usage in harsh environments.
Inductance tolerance of 25 percent for design flexibility. Silver/Nickel/Tin termination style for robust solder connections. Automotive standard AEC-Q200 qualified. Moulded construction for durability and mechanical strength.
Provided on reel packaging for automated assembly processes.
Select Bourns Surface Mount Inductors for industrial, automotive, telecommunications, and power electronics subassemblies requiring reliable and compact passive components. Browse the extensive Bourns range for compatible components and accessories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC current rating for the SRF3216 inductor is 200mA.
This model has an inductance tolerance of 25%.
The dimensions of the SRF3216 inductor are 3.2mm in length, 2mm in height, and 2mm in depth.
The operating temperature range for the SRF3216 is from -40°C to 125°C.
The maximum DC resistance of this inductor is 1.2 ohms.
The SRF3216 inductor is constructed with a ferrite core material.
The termination style of the SRF3216 is silver/nickel/tin, providing robust solder connections.
Yes, the SRF3216 meets the automotive standard AEC-Q200.
The SRF3216 inductor is packaged on reels for efficient automated assembly processes.
The SRF3216 complies with the RoHS Directive 2015 and other relevant standards.
This inductor is suitable for industrial electronics, automotive electronics, telecommunications equipment, and power supply applications.
The construction type of the SRF3216 is moulded, which enhances its mechanical strength.
