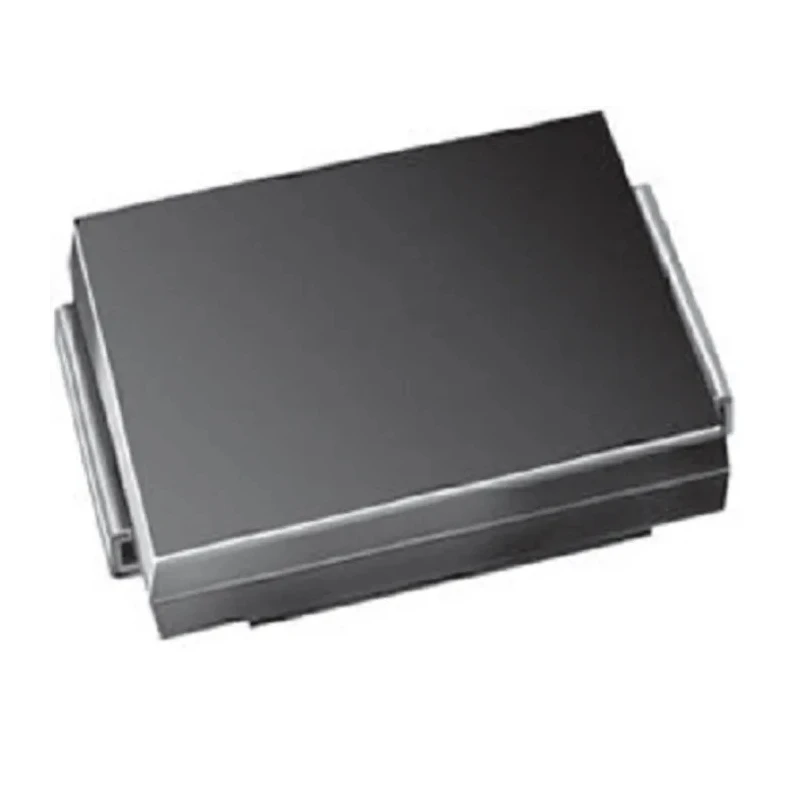

Vishay 1-Element Bi-Directional Diode 7000 W, 2-Pin SMC (DO-214AB) XMC7K24CA-M3/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | XMC7K24CA-M3/H |
| Mount Type | Surface |
| Series | XClampRTM |
| Maximum Operating Temperature | 175°C |
| Package Type | SMC (DO-214AB) |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 26.7V |
| Maximum Reverse Stand-off Voltage Vwm | 24V |
| Peak Pulse Power Dissipation Pppm | 7000W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 180A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- The diode supports a peak pulse power of 7000 W for transient voltage suppression.
- It features a bi-directional direction type for versatile protection.
- The package type is SMC (DO-214AB) with a compact 2-pin configuration.
- Designed for operation in temperatures ranging from -55°C to 175°C.
- Maximum peak pulse current is rated at 180 A with a 10/1000 μs waveform.
- Low maximum reverse leakage current of 1 μA ensures minimal power loss.
- Complies with automotive standard AEC-Q101 ensuring high reliability.
- Has a minimum breakdown voltage of 26.7 V and maximum reverse standoff voltage of 24 V.
Product Description
Vishay XMC7K24CA-M3/H is a 1-element bi-directional transient voltage suppressor diode that delivers 7000 W peak pulse power dissipation and is housed in a compact 2-pin SMC (DO-214AB) surface mount package. This diode is engineered for high temperature stability and reliability, making it suitable for demanding industrial and automotive applications.
Operating over a temperature range from -55°C to 175°C, it withstands harsh environments while protecting sensitive electronic circuitry against voltage surges originating from inductive load switching, lightning strikes, and other transient events. The device features a minimum breakdown voltage of 26.7 V and maximum reverse standoff voltage of 24 V, providing robust voltage clamping performance.
Designed under the XClampRTM series, it ensures extremely low clamping voltage and a maximum peak pulse current of 180 A (10/1000 μs waveform), thereby increasing the lifespan and reliability of protected components. Its exceptionally low leakage current of 1 μA further reduces power dissipation during normal operation.
The device is AEC-Q101 certified, meeting stringent automotive quality and reliability standards. Its small surface mount package (SMC/DO-214AB) allows for high-density PCB layouts in electronics manufacturing.
Peak pulse power dissipation of 7000 W. Bi-directional transient voltage suppression. Surface mount SMC (DO-214AB) package with 2 pins. Wide operating temperature range from -55°C to 175°C. Very low maximum reverse leakage current of 1 μA.
High peak pulse current capability of 180 A. AEC-Q101 automotive standard certified. Minimum breakdown voltage of 26.7 V. Maximum reverse standoff voltage of 24 V. Highly effective protection for automotive, industrial, and sensitive electronic applications.
This diode is widely used in industrial electronics, automotive modules, power supplies, and other applications where transient voltage protection is critical. Its design ensures long-term reliability with excellent surge absorption, making it a trustworthy choice for engineers requiring efficient transient voltage suppression in harsh environments.
Explore the Vishay product range and electronic components on EnvMart for reliable semiconductor and diode solutions tailored for your industrial and automotive needs.
Explore more products in our Transient Voltage Suppressors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The diode supports a peak pulse power dissipation of 7000 W for transient voltage suppression.
This model operates over a temperature range from -55°C to 175°C, making it suitable for harsh environments.
The maximum reverse standoff voltage is 24 V, providing robust voltage clamping performance.
The minimum breakdown voltage is 26.7 V, ensuring effective voltage suppression.
It has a maximum peak pulse current rating of 180 A with a 10/1000 μs waveform.
The diode is housed in a compact SMC (DO-214AB) surface mount package with a 2-pin configuration.
This model complies with the AEC-Q101 automotive standard, ensuring high reliability.
The maximum reverse leakage current is 1 μA, which helps minimize power loss during operation.
This diode features 1 element per chip, designed for effective transient voltage suppression.
The diode is bi-directional, allowing for versatile protection against voltage surges.
It is part of the XClampRTM series, designed for high temperature stability and reliability.
This diode is widely used in industrial electronics, automotive modules, and power supplies where transient voltage protection is critical.
