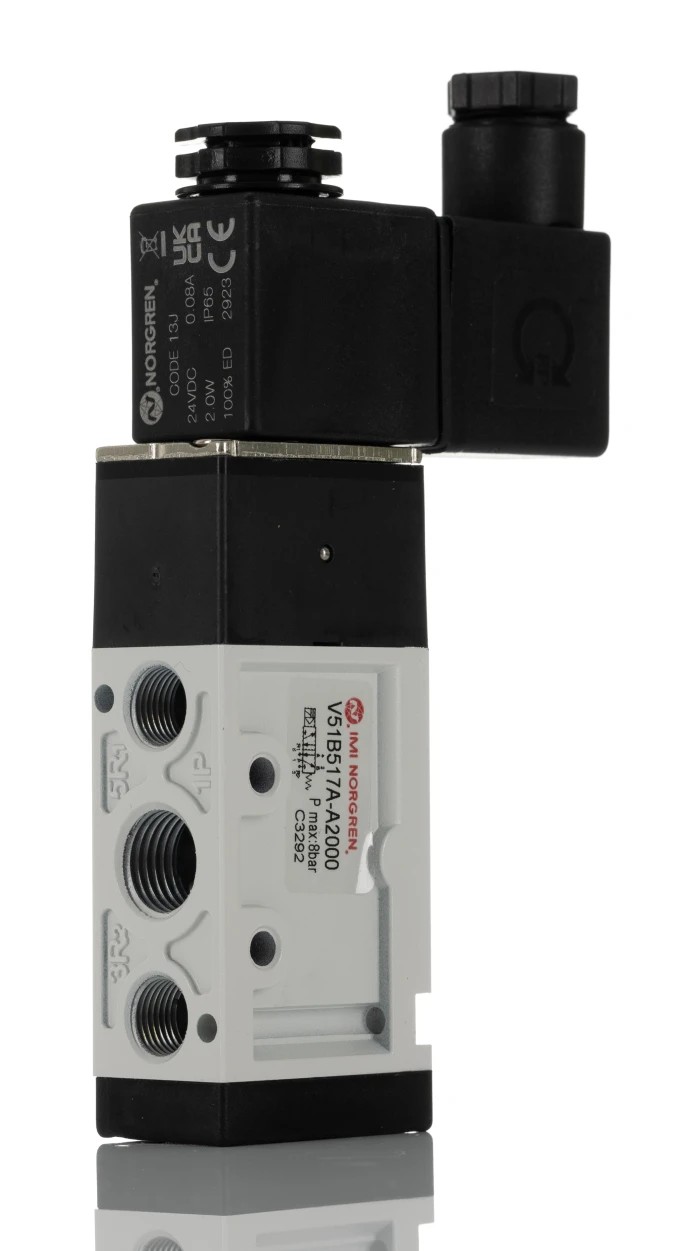

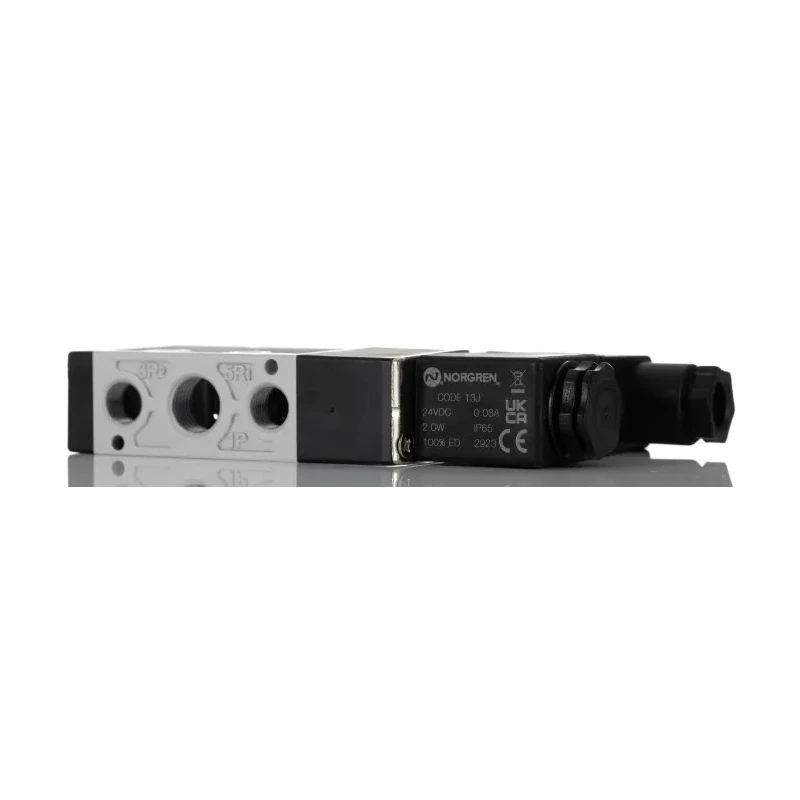

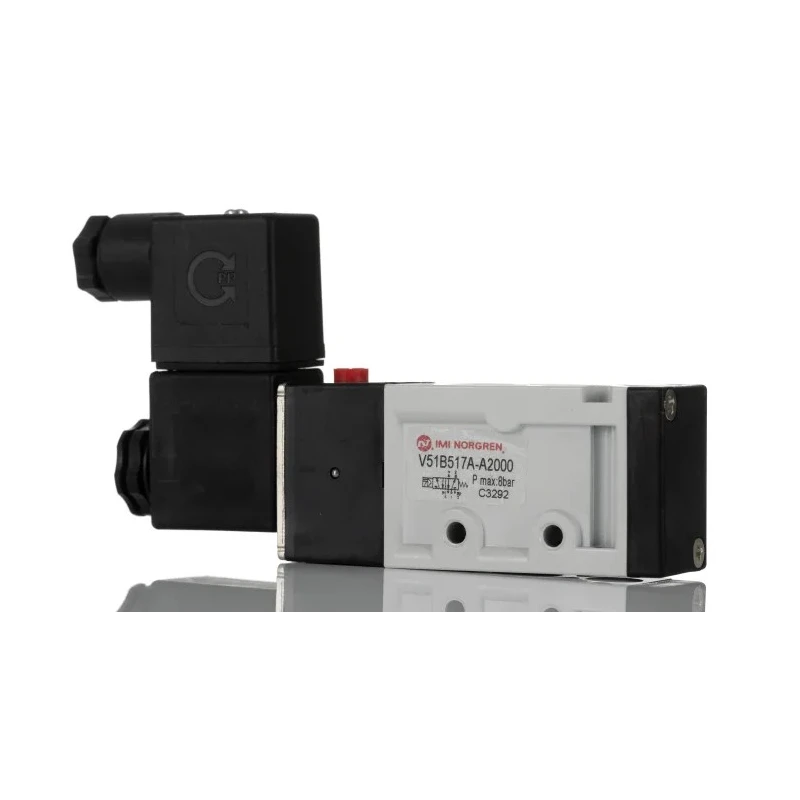

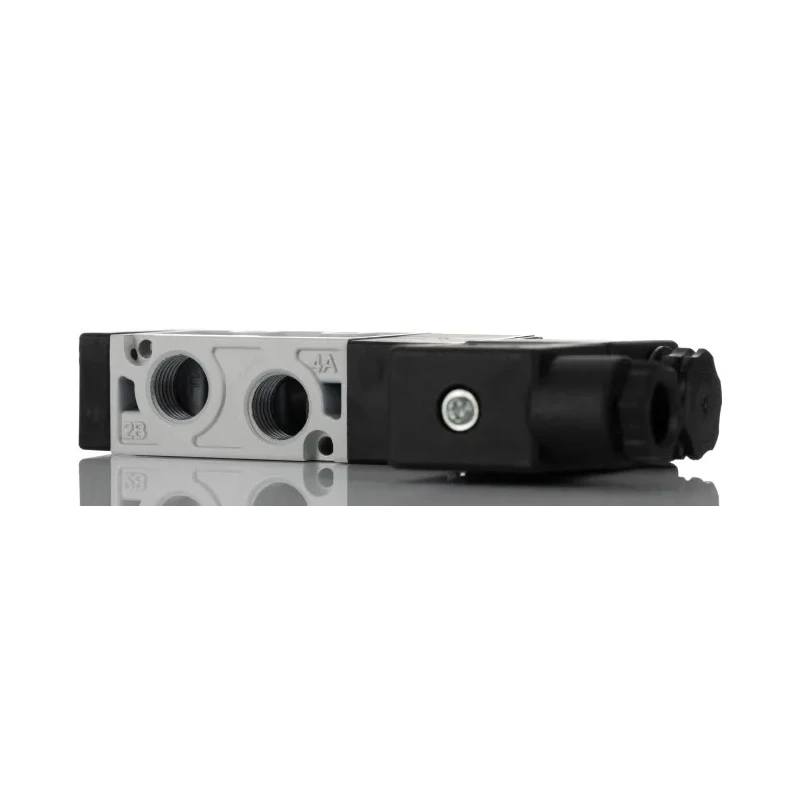

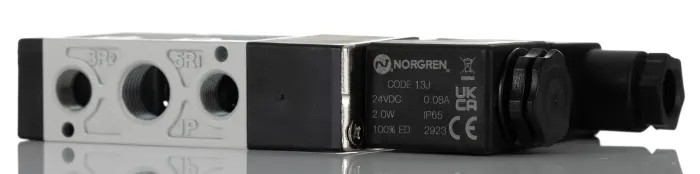

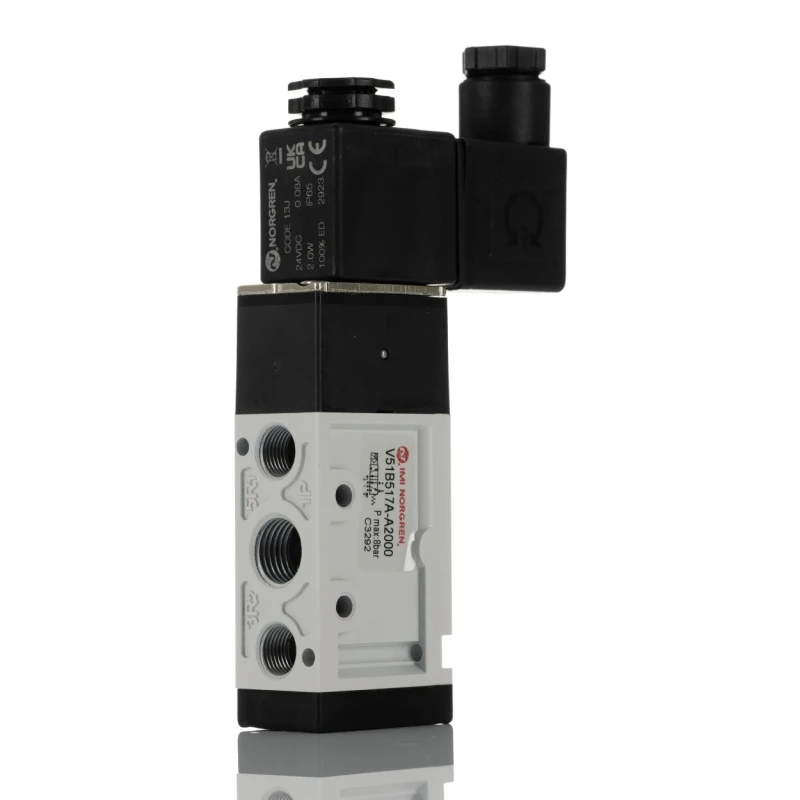

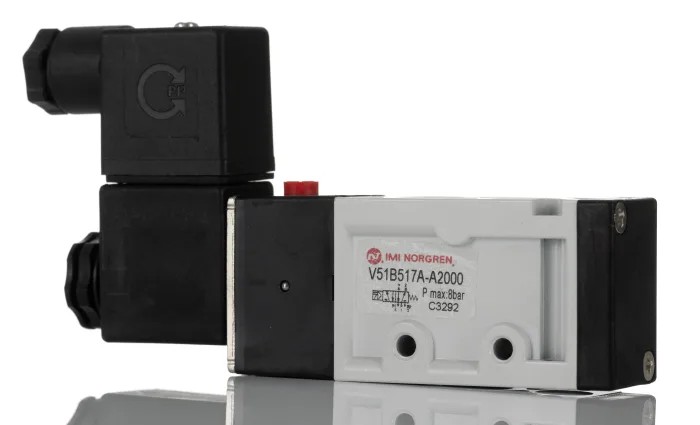

RS PRO Pneumatic Solenoid Valve 5/2 Solenoid/Spring G 24V dc Die Cast Aluminium Body 1020 L/min Flow Rate 907-6387

RS PRO 907-6387 Pneumatic Solenoid Valve 5/2 Solenoid/Spring G 24V dc is a precision control valve used to regulate airflow within pneumatic systems. The valve features a 5/2 configuration with five ports and two operating positions, allowing for effective directional control in double-acting pneumatic actuators. It is activated by a single solenoid and returned by a spring mechanism ensuring reliable and consistent operation.

Constructed with a die-cast aluminium body, this valve offers a balance of durability, lightweight design, and resistance to mechanical stresses. The valve is equipped with a nitrile rubber (NBR) seal that provides excellent sealing capabilities and extended service life.

The valve supports a maximum operating pressure of 8 bar and functions efficiently within a temperature range of -5°C to 50°C. It has a maximum flow rate capacity of 1020 L/min, suitable for a variety of industrial pneumatic applications including medical equipment, pneumatic presses, and food processing machinery. The valve also allows for manifold or in-line mount installation, adapting to different pneumatic system layouts.

Electrical actuation is managed via a plug socket connection and consumes 2 watts of power, balancing performance with low energy usage. This valve adheres to RoHS regulations limiting hazardous substances and conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards, ensuring it meets high industry safety requirements. Manufactured in the United Kingdom, the valve provides trusted quality and reliability for professional use.

The valve features a 5/2 function with five ports and two switching positions. Port size is 1/4 inch with a G connection thread standard for compatibility. Die-cast aluminium body provides robust and lightweight construction.

Maximum flow rate capability of 1020 L/min for efficient pneumatic control. Operating temperature range from -5°C to 50°C accommodates diverse environments. Maximum operating pressure of 8 bar and minimum pilot pressure of 2 bar.

Solenoid coil power consumption is low at 2 watts for energy efficiency. Mounting options include manifold or in-line configurations. The valve is RoHS compliant and meets electrostatic control standards for safety.

This RS PRO Pneumatic Solenoid Valve is suited for industrial sectors including manufacturing, medical, food processing, and construction. Its reliable switching mechanism and compact design make it ideal for precise airflow management in pneumatic control systems. Explore more pneumatic valves and related products on EnvMart for industrial solutions.
