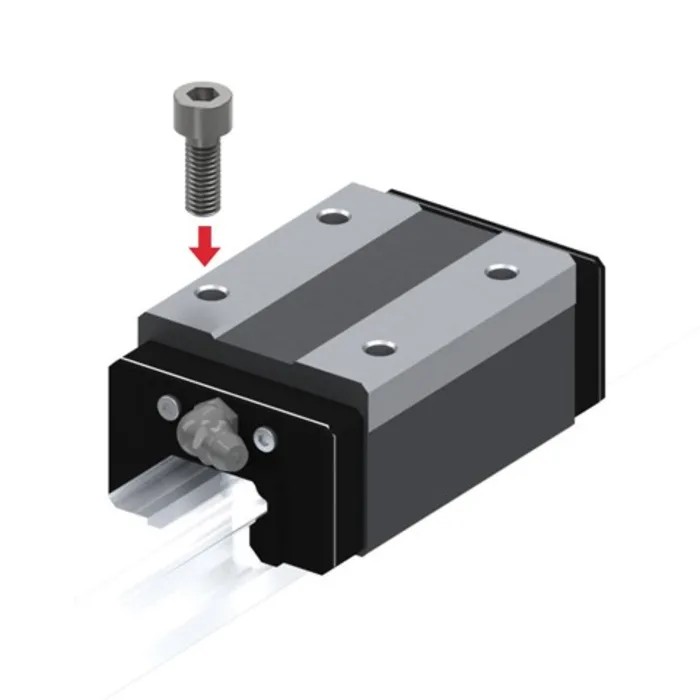

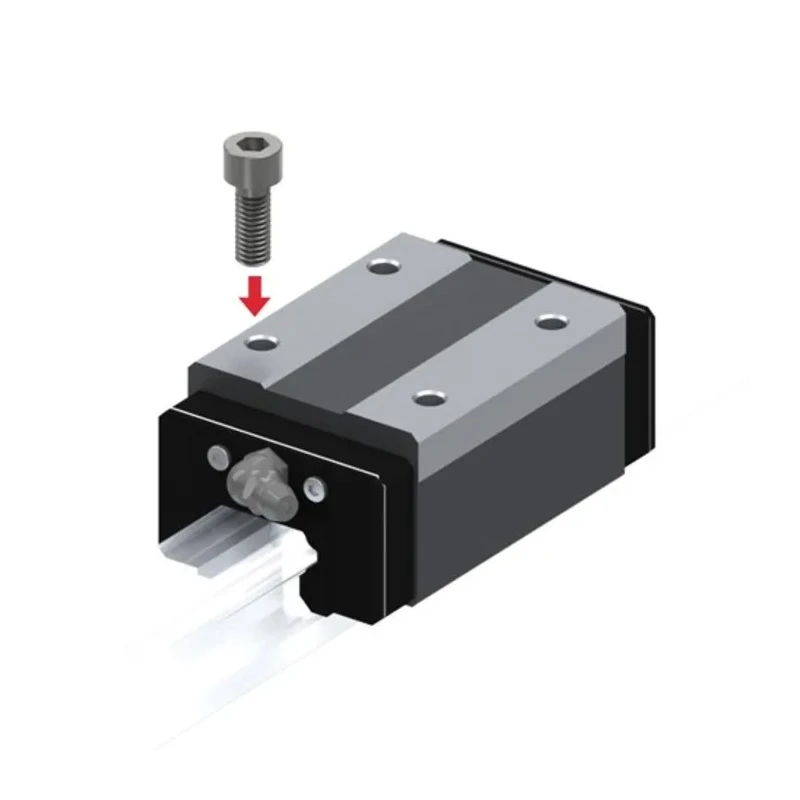

THK Linear Guide Carriage HSR Series 40.5 kN Dynamic Load HSR30C1SS(GK)

THK HSR30C1SS(GK) Linear Guide Carriage from the HSR series is a high-performance linear motion component engineered to deliver precise and smooth movement under heavy loads. Featuring a dynamic load capacity of 40.5 kN, this carriage accommodates demanding industrial environments.

Manufactured in France from robust carbon steel, the carriage measures 98 mm in length and 90 mm in width, optimized for use with LM rails having an acceptable width of 28 mm. The design incorporates balls traveling within four precision-ground raceways at a 45° contact angle, ensuring uniform load distribution across radial, reverse-radial, and lateral directions. This results in low friction and enhanced rigidity during operation.

The self-adjusting block construction allows for absorption of mounting errors even under preload, supporting highly accurate and stable linear motion. This makes the HSR30C1SS(GK) model ideal for applications in industrial machinery, automation, mechanical assemblies, and other fields requiring reliable linear motion guides.

The carriage's precise construction provides smooth movement with minimal friction. Its durable carbon steel material ensures long service life and resistance to wear. The block's self-adjusting capability facilitates easier installation and maintenance.

Uniform load distribution enhances operational stability and reduces mechanical stresses. Engineered to minimize machine downtime through quick interchangeability.

This Linear Guide Carriage fits within a comprehensive product category of mechanical machinery spare parts and supports a wide range of applications in manufacturing plants, assembly lines, and automated systems. For industrial-grade linear motion components, explore EnvMart's full range of THK products and related mechanical spares.
