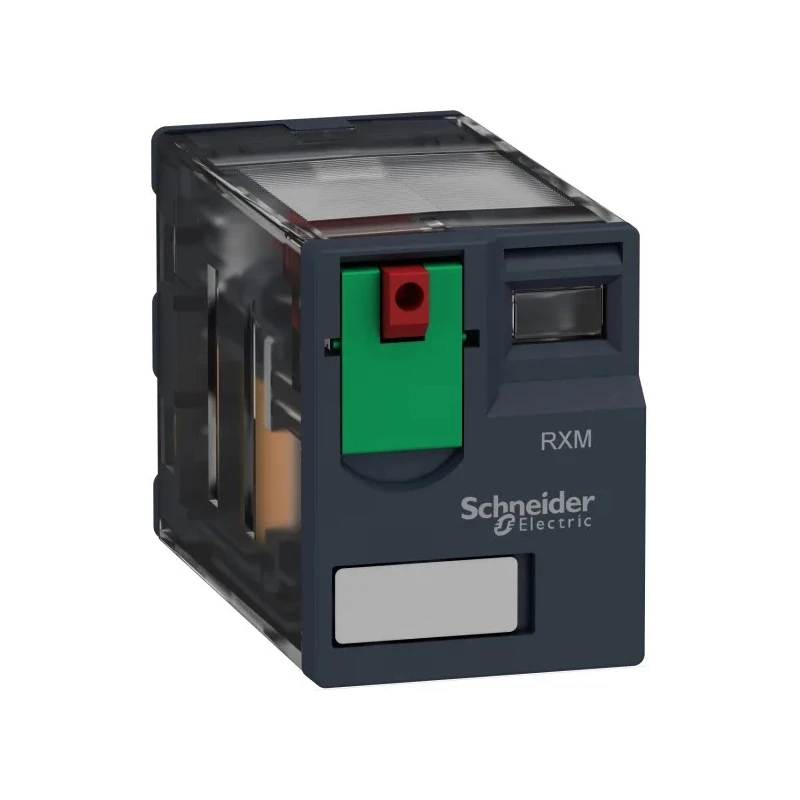

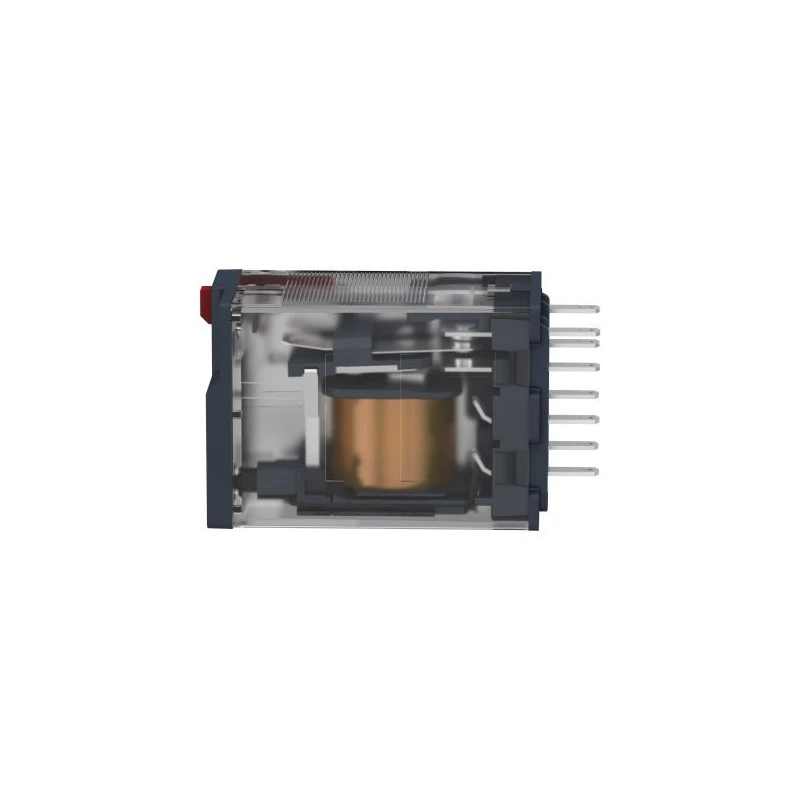

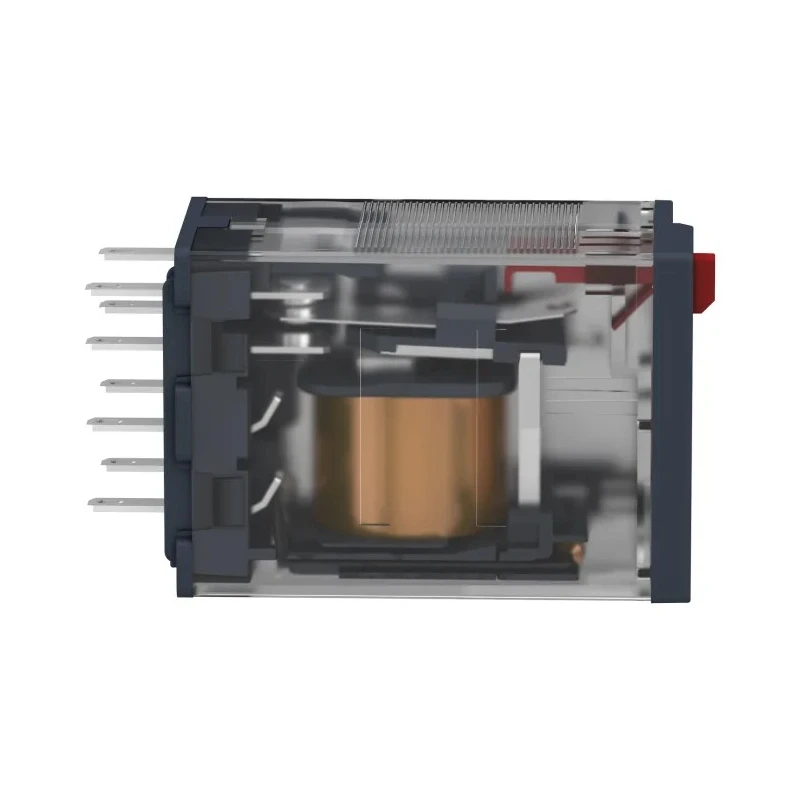

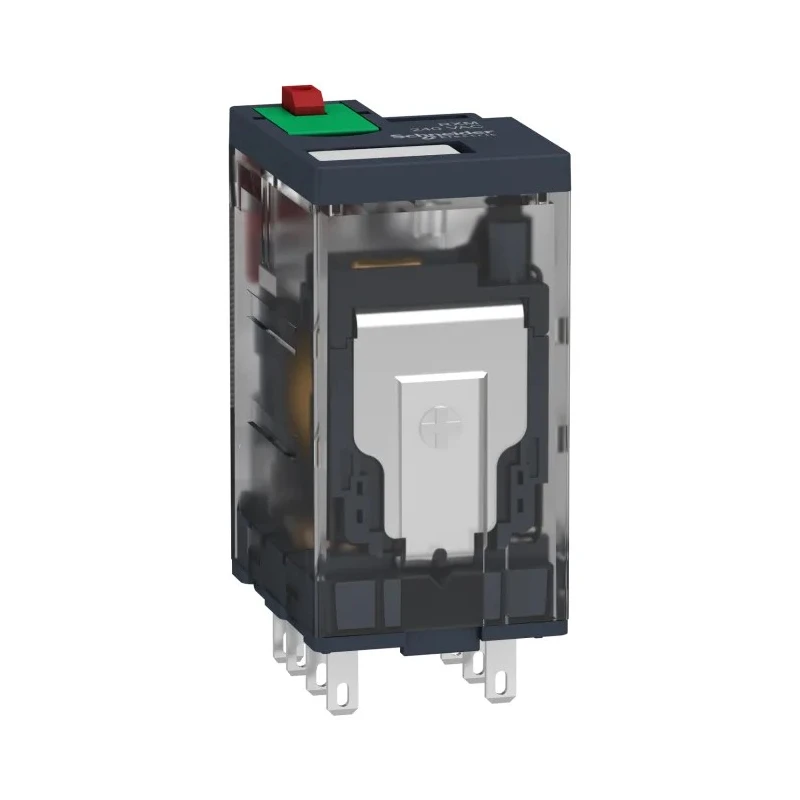

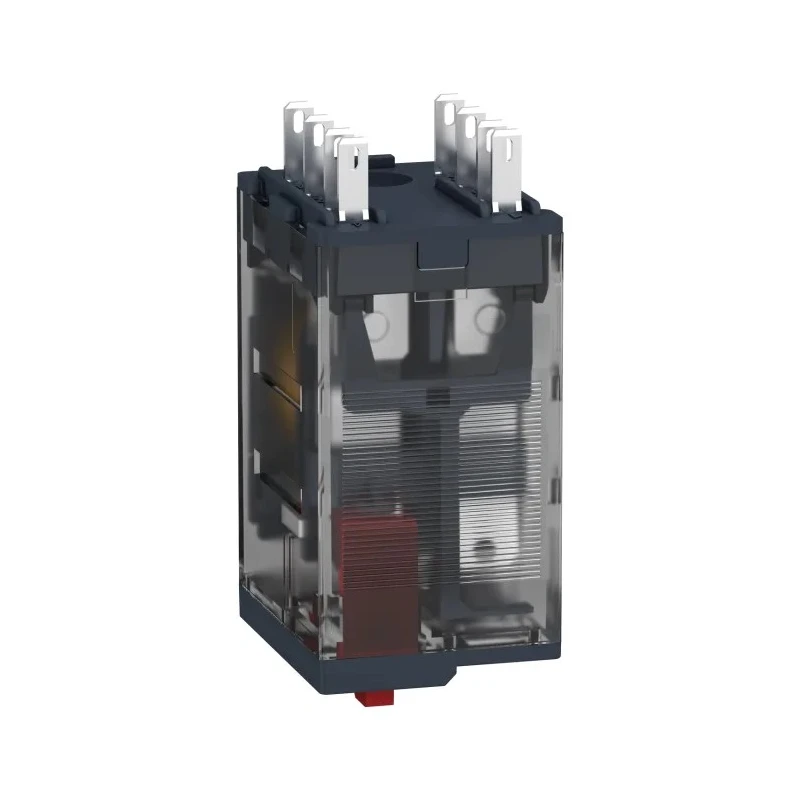

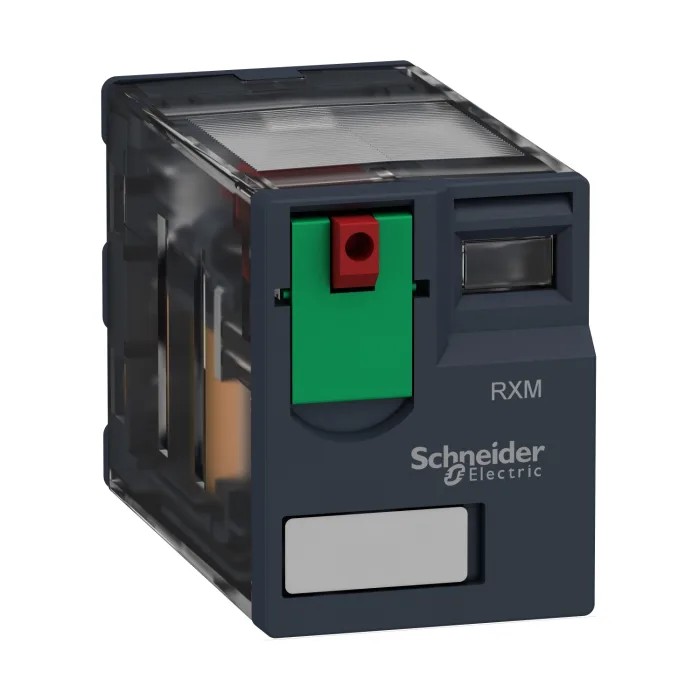

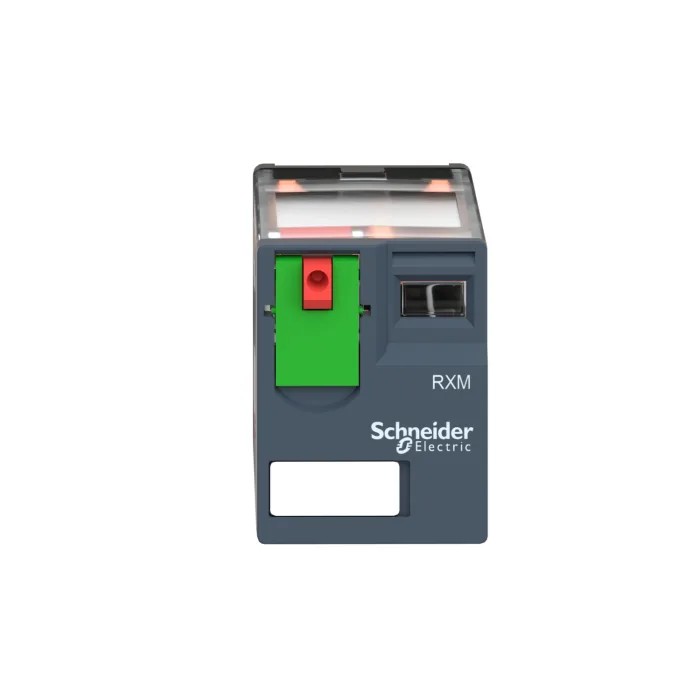

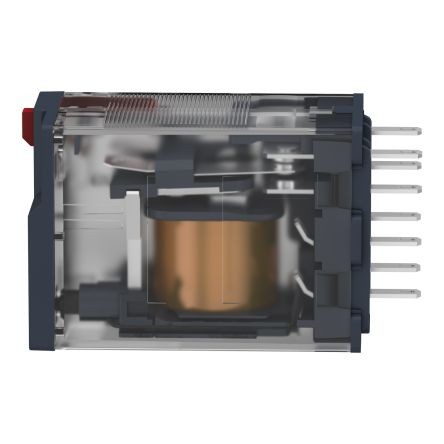

Schneider Electric Power Relay, 48V AC Coil, 8A Switching Current, 4 CO Contacts, Harmony Relay RXM Series RXM4AB1E7

Schneider Electric RXM4AB1E7 Power Relay belongs to the Harmony Relay RXM series, engineered for industrial control and automation applications requiring reliable 4-pole changeover switching.

This relay operates with a 48V AC coil delivering an 8A switching current across 4 changeover contacts, utilizing silver nickel alloy contacts for enhanced corrosion resistance and longevity. The device supports a wide ambient temperature range of −40°C to 55°C with mechanical endurance rated at 10 million cycles and electrical durability of 100,000 cycles on resistive loads.

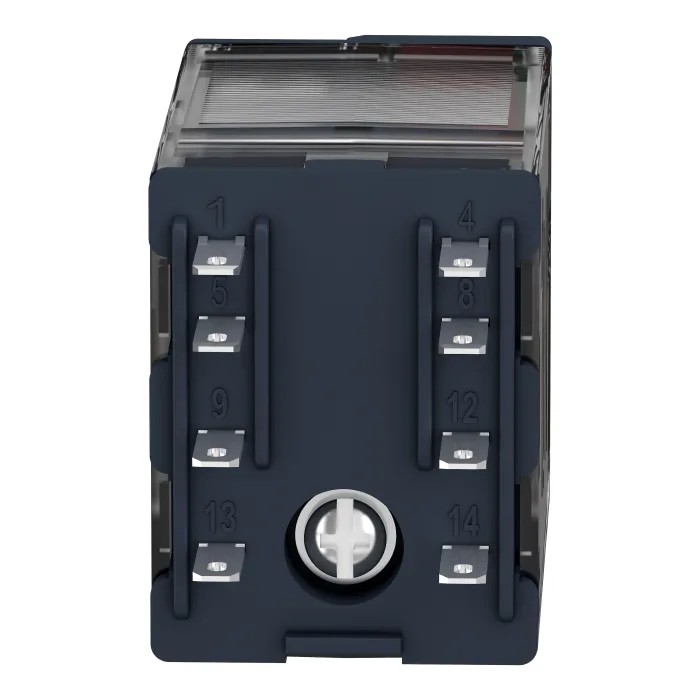

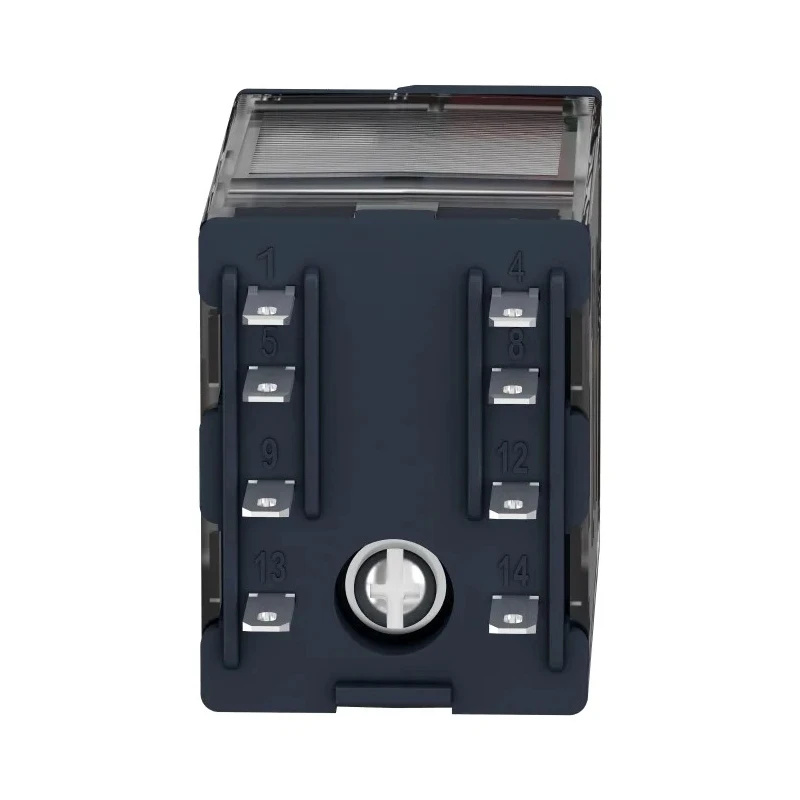

The compact plug-in design, measuring 27mm in height, 47.7mm in width, and 21mm in length, allows for easy integration into DIN-rail mounted panels and standard relay sockets, facilitating fast replacement and maintenance.

With a coil resistance of 710Ω and coil power consumption of only 1.2W, this relay provides energy-efficient operation. It is capable of switching AC voltages up to 250V and DC voltages of 28V, handling maximum switching power of 1,500 VA AC. The relay is certified to CSA and CE standards, ensuring compliance with global industrial safety norms.

This relay is ideal for factory automation control logic, remote machine-control interfaces, contactor control, lighting, and resistive heating circuits. Its robust construction withstands vibration levels up to 5 gn when not operating, supporting reliable performance in demanding industrial environments.

Choose the Schneider Electric RXM4AB1E7 Power Relay for versatile, durable, and efficient multipole switching solutions in electrical automation and control panels. Designed for industrial control and automation panels to provide reliable multi-pole switching.

Equipped with corrosion-resistant silver nickel alloy contact material ensuring durability. Coil resistance is 710Ω with low coil power consumption of 1.2W for energy efficiency. Wide operating temperature range from −40°C to 55°C suits harsh environments.

Mechanical endurance up to 10 million cycles and electrical life up to 100,000 cycles for extended reliability. Plug-in terminal type for quick installation and replacement in relay sockets and DIN-rail setups. Rated switching power up to 1.5 kVA AC and 28V DC switching voltage capability.

Certified with CSA and CE standards for industrial safety and quality compliance. Compact dimensions: Height 27mm, Width 47.7mm, Length 21mm suitable for space-saving panel mounting. Explore more Schneider Electric relays and automation components in EnvMart's Electronics & Electricals category.
