Schneider Electric Power Relay, 24V dc Coil, 10A Switching Current, 3PDT RXM3AB1BD

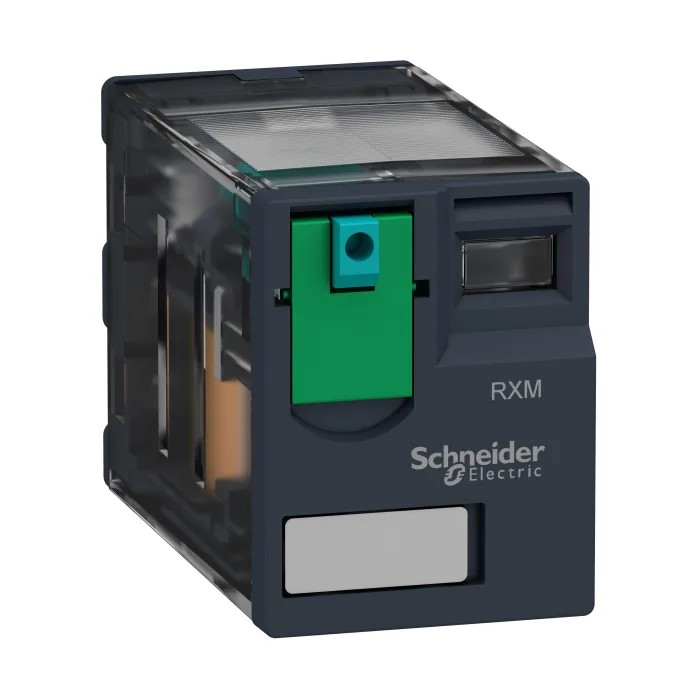

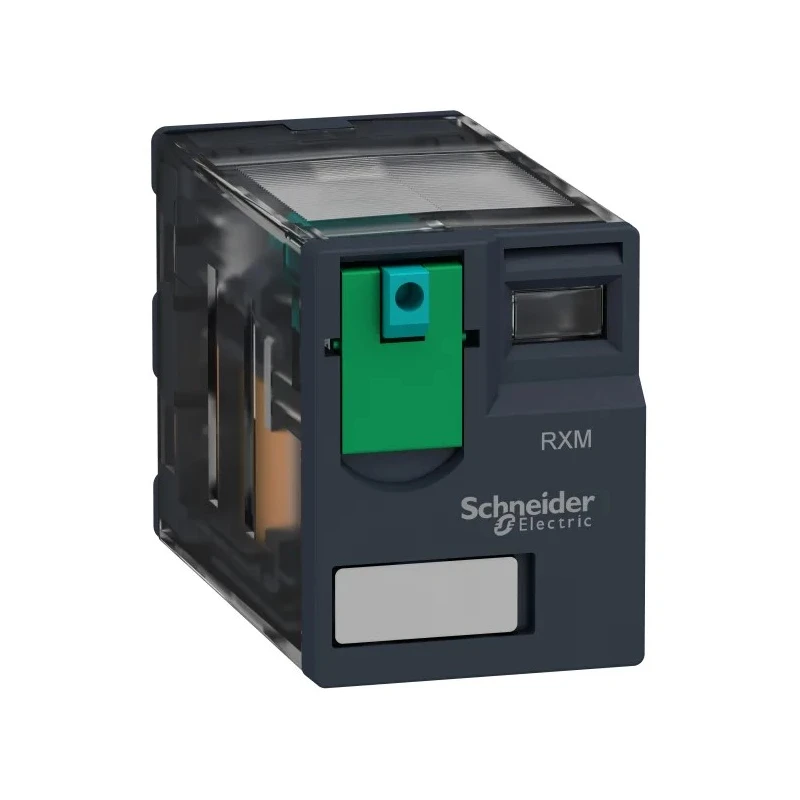

Schneider Electric RXM3AB1BD Power Relay features a 24V dc coil voltage and is capable of switching currents up to 10A with a 3PDT (3 Pole Double Throw) contact configuration. It is part of the Harmony Relay RXM series and is designed for use in industrial, automation, HVAC, packaging, textile, and manufacturing applications. This miniature plug-in relay mounts on RXZE sockets and is suitable for complementing programmable logic controllers (PLCs) in control panels and machinery.

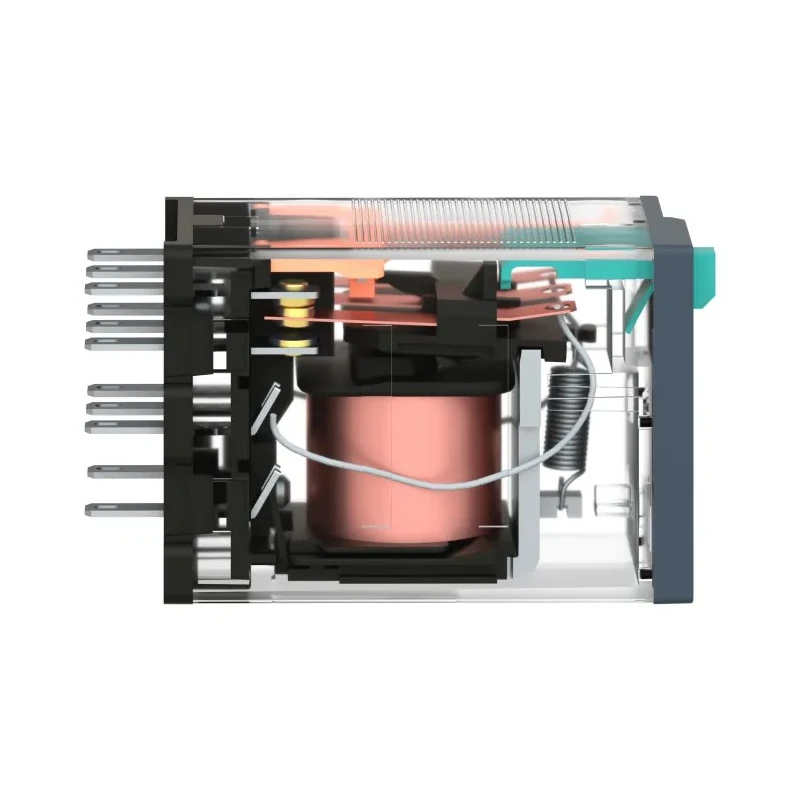

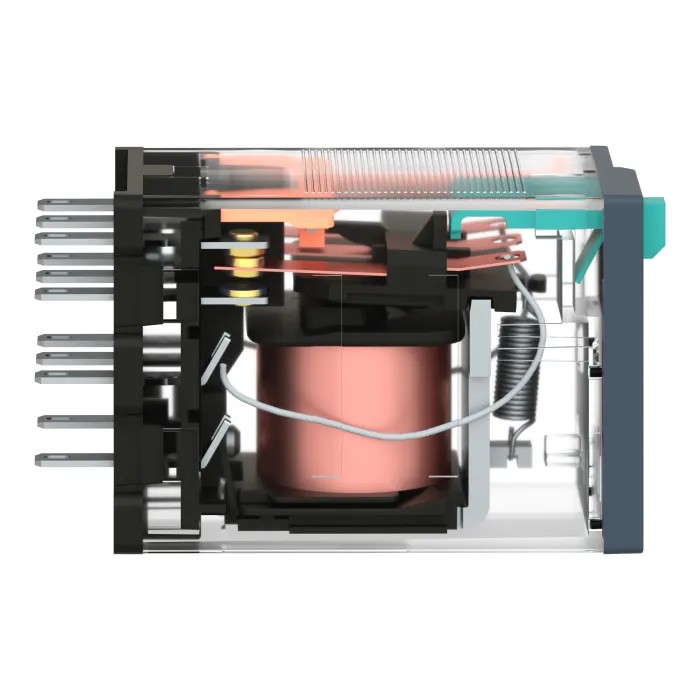

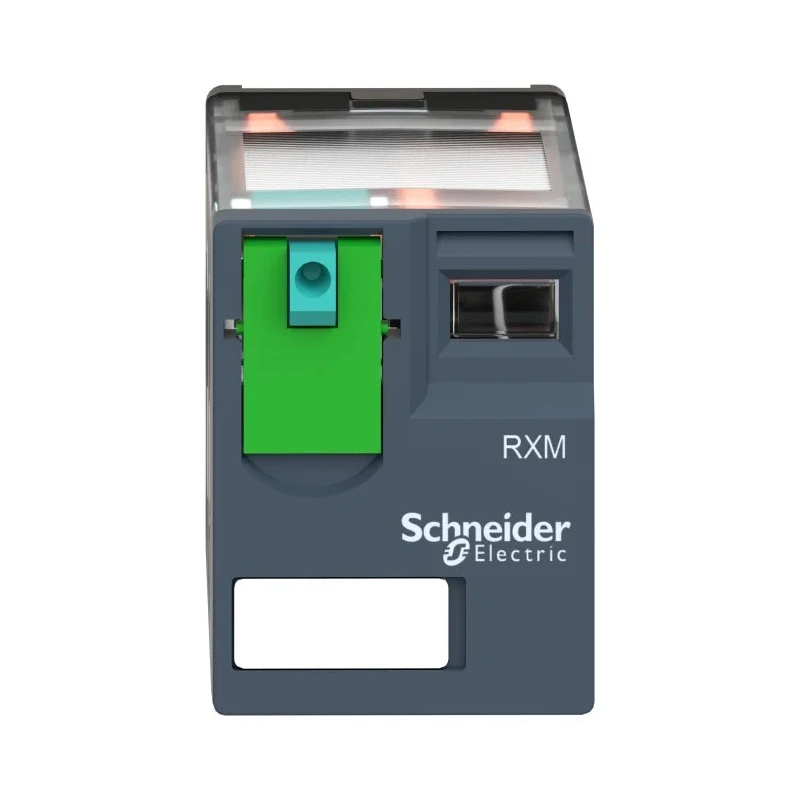

The relay includes a convenient one-step lockable test button activated by a blue pushbutton and locked by a green flip-up part. An orange mechanical indicator flag next to the button indicates relay contact status, aiding troubleshooting and maintenance. The relay's compact size (21mm length, 27mm height, 47.7mm width) and plug-in terminal type allow easy integration into existing systems.

It supports a switching power capacity of 2.5kVA with switching voltages of 28V dc and 250V ac. Coil resistance is 650Ω consuming 900mW of power. The contact material is silver alloy which ensures reliable electrical performance and longevity. Operating temperature ranges from -40°C to 55°C enable reliable use in harsh industrial environments.

The RXM series relays comply with international safety and quality certifications including CSA and CE. To protect against vibrations in demanding applications, plastic or metal clamps can be added to the RXZE socket. Protection modules and marking legends are also available separately.

This relay is a green premium product designed under RoHS and REACH directives. It is sold in lots of 10 units and is ideal for use in HVAC controls, building automation, motor controls, and power supply switching.

Plug-in miniature relay with 24V dc coil and 10A rated switching current. 3 Pole Double Throw contact configuration provides flexible switching options. Integrated test button with mechanical indicator simplifies field testing and diagnostics.

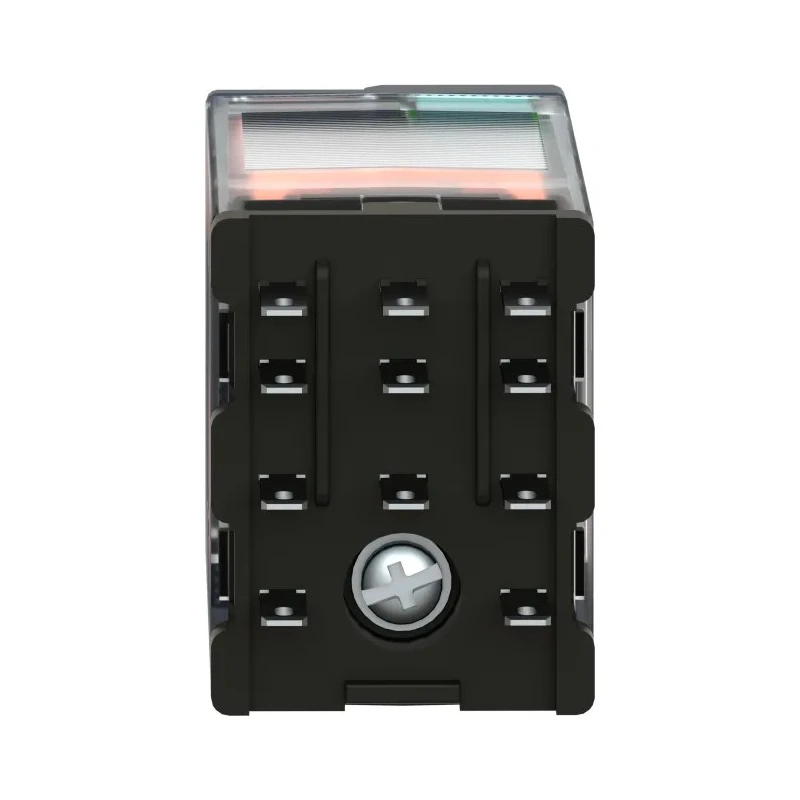

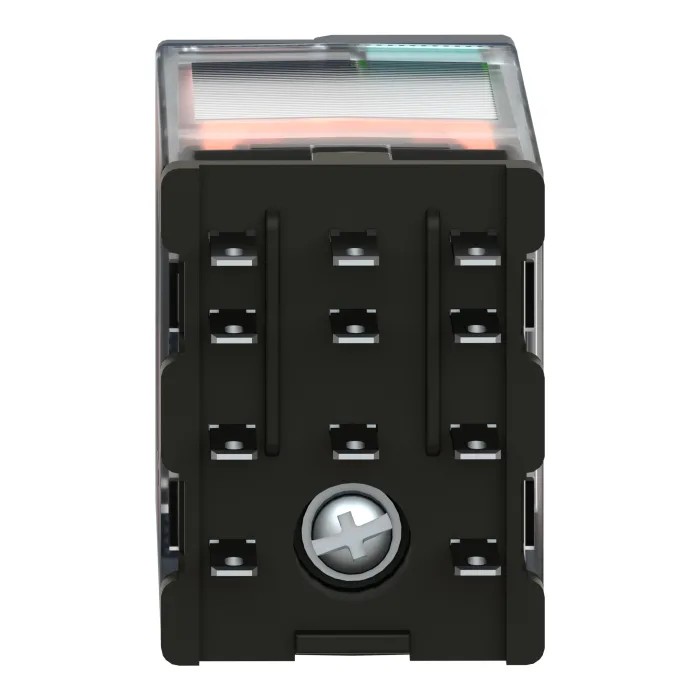

Suitable for industrial automation, packaging, textile machines, and HVAC panels. Wide operating temperature range of -40°C to 55°C for harsh environments. Compact dimensions and plug-in terminal type ensure easy installation.

Silver alloy contacts provide excellent conductivity and wear resistance. Certified to CSA and CE standards ensuring international quality compliance. Compatible with RXZE sockets offering secure connections and vibration protection.

Conforms to environmental directives RoHS and REACH promoting sustainability. Discover more power relays and electrical components by browsing the Electronics & Electricals > Relays & Contactors > Power Relay category on EnvMart.
