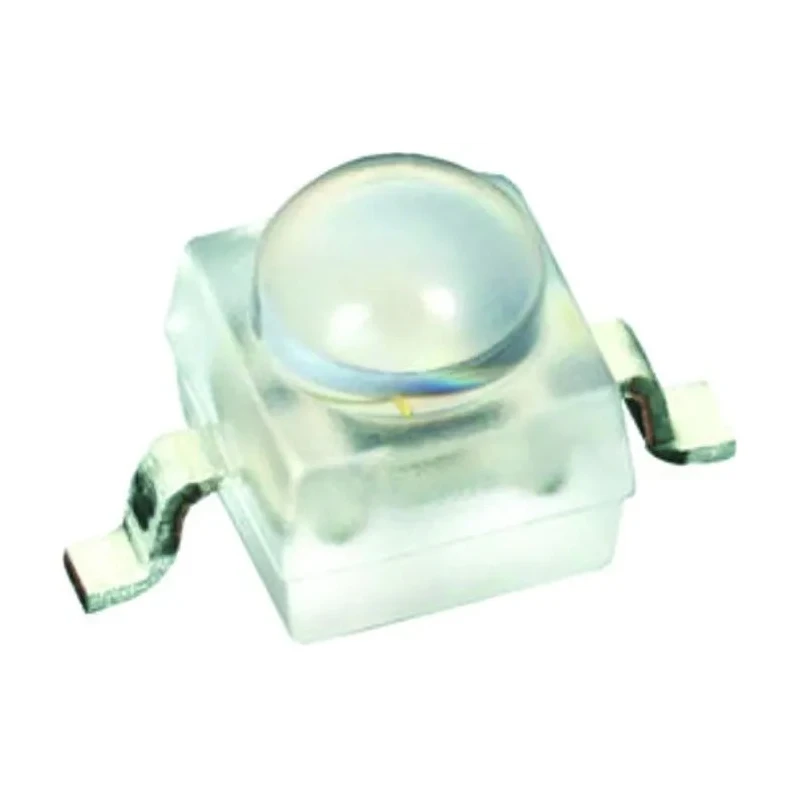

Kingbright 2520 940 nm IR LED Subminiature Surface Mount Dome Lens 1.6V KM2520F3C03

Kingbright KM2520F3C03 is a high-quality infrared light-emitting diode (IR LED) from the 2520 series designed in a subminiature surface mount package. This LED emits infrared light with a peak wavelength of 940 nm, optimized for applications requiring IR emission in a compact footprint.

The 2520 subminiature package features a dome-shaped lens that focuses the beam to a narrow 20° viewing angle, making it suitable for efficient light delivery in sensing, remote control, and optical communication devices. The LED employs Gallium Arsenide (GaAs) semiconductor material to ensure consistent performance and long operational life.

This IR LED operates at a maximum supply voltage of 1.6 volts, making it energy efficient while providing a radiant intensity of 20 mW/sr. The gull-wing lead configuration facilitates straightforward automated surface mounting on printed circuit boards. Furthermore, the product comes packaged on tape and reel, enhancing production throughput by allowing seamless integration with pick-and-place machinery.

With compact dimensions of 2.5 mm length, 2 mm width, and 2.8 mm height, the KM2520F3C03 fits well into designs with stringent space constraints. Its subminiature size combined with high IR output makes it ideal for industrial, commercial, and consumer electronics involving IR sensing and communication.

This IR LED is compliant with CIE 127-2007 standards for optical radiation. Standard packaging and surface mounting make it well suited for automated assembly lines. Applications include optical remote control systems, presence detection, IR communication modules, and security systems.

The product is manufactured in China and sold as a new condition item. Dimensions and package style support high-density PCB layouts and compact device designs. Explore other Kingbright IR LEDs and related electronic components in the EnvMart catalog for advanced optoelectronic solutions.
