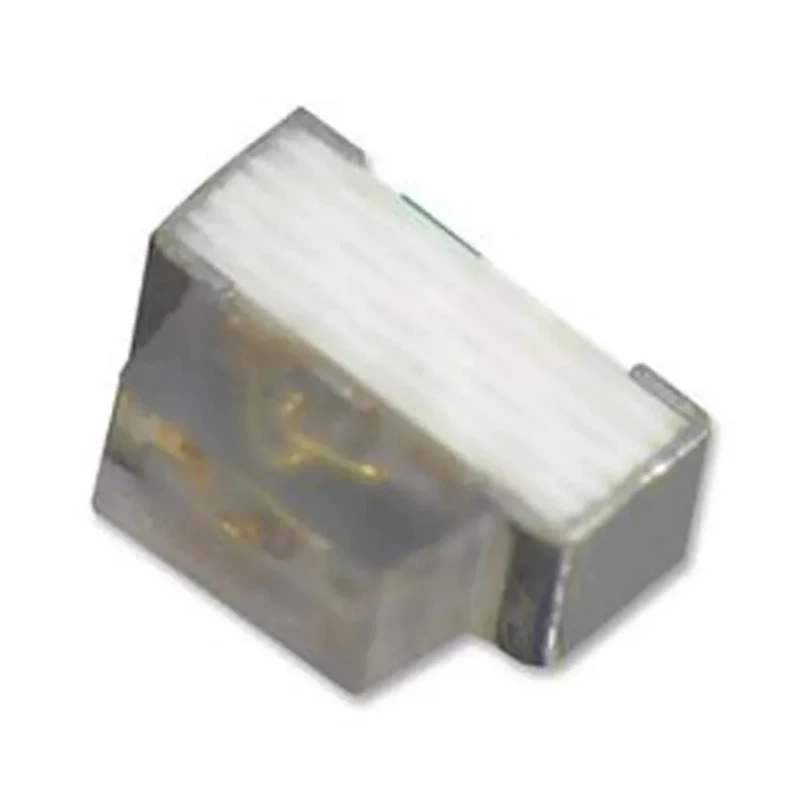

Kingbright 4 V Blue LED 1605 Surface Mount Tape & Reel KPA-1606VBC-D

Kingbright KPA-1606VBC-D is a 4 V blue surface mount LED featuring the 1605 package size, designed primarily for side-looking applications such as backlighting and indicators in electronic devices.

This model exhibits a dominant wavelength of 470 nm, providing vivid blue light emission with a luminance of 200 mcd.

The LED is constructed with a clear rectangular lens with dimensions of 1.6 x 0.6 x 1.2 mm, allowing efficient light transmission and wide viewing angle of 110 degrees. It supports a maximum forward current of 100 mA and a forward voltage of 4 V, with maximum power dissipation capped at 120 mW.

With its compact surface mount design and tape & reel packaging, the KPA-1606VBC-D is compatible with high volume automated placement machines, improving production efficiency for industrial electronics manufacturing.

The two-pin LED complies with RoHS environmental standards and is made in China. It is a reliable component for applications in consumer electronics, automotive indicators (non-automotive certified), instrumentation, and general LED illumination solutions within industrial and laboratory equipment.

This LED features a blue color with a dominant wavelength of 470 nm. It is surface mount type with a 1605 package size, suitable for high-density PCBs. Maximum forward current is rated at 100 mA for reliable operation. Forward voltage is 4 V and maximum power dissipation is 120 mW.

The LED offers a viewing angle of 110 degrees for wide visibility. Its rectangular lens measures 1.6 x 0.6 x 1.2 mm providing clear light emission. Packaging is supplied on tape and reel suitable for automated assembly processes.

Kingbright KPA-1606VBC-D has 2 pins and meets RoHS compliance standards. Explore more advanced LED components and surface mount LED solutions in EnvMart’s Electronics Components category.
