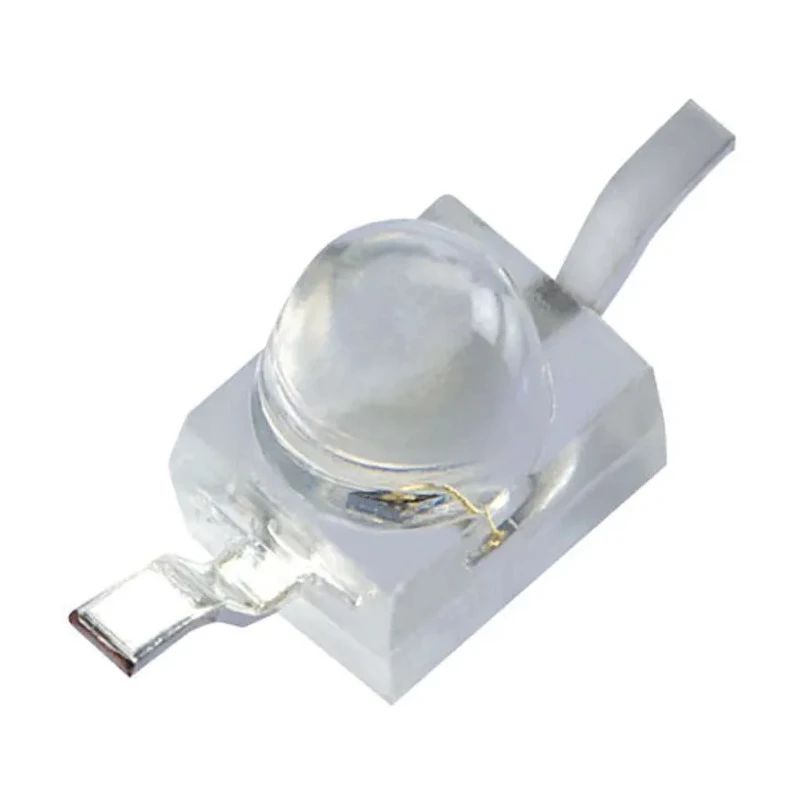

Kingbright 2.5 V Green LED Subminiature Surface Mount Dome Lens LED KM2520CGCK09
Specifications
| Country of Origin | China |
|---|---|
| Brand | Kingbright |
| Model | KM2520CGCK09 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | KM2520 |
| Maximum forward current | 150mA |
| Viewing angle | 20 ° |
| Package Type | Subminiature |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Dominant Wavelength | 570nm |
| Forward Voltage | 2.5V |
| Number of Pins | 2 |
| LED Luminosity | 800 mcd |
| Maximum Power Dissipation | 75mW |
| Lens Dimensions | 2.5 x 2 x 2.8 mm |
| Lens Shape | Dome |
| Lead types | Gull-wing (GW), yoke and z-bend |
Key Features
- The LED features a maximum forward current of 150 mA.
- It has a maximum power dissipation of 75 mW.
- The lens dimensions are 2.5 x 2 x 2.8 mm with a dome-shaped clear lens.
- The LED emits green light with an 800 mcd luminosity and a dominant wavelength of 570 nm.
- The viewing angle is 20 degrees, suitable for wide-angle illumination.
- Mount type is surface mount with Gull-wing, yoke, and z-bend lead types.
- Packaging is tape and reel for efficient automated assembly.
- It complies with RoHS environmental standards.
Product Description
The Kingbright KM2520CGCK09 is a green LED housed in a subminiature surface mount package designed for reliable and long-lasting performance in electronic assemblies. Operating at a forward voltage of 2.5 V and a maximum forward current of 150 mA, this LED delivers bright illumination with a luminous intensity of 800 mcd, centered around a dominant wavelength of 570 nm, emitting vivid green light.
This LED features a low-profile dome-shaped lens measuring 2.5 x 2 x 2.8 mm, optimized to provide a wide 20-degree viewing angle, ideal for various electronic display and indicator applications. The surface mount design with Gull-wing (GW), yoke, and z-bend lead types facilitates compatibility with automated PCB assembly lines, and the tape and reel packaging form factor supports efficient mass production and handling.
The KM2520CGCK09 complies with RoHS directives, ensuring it meets environmental safety standards by restricting hazardous substances. Its compact size and robust construction make it suitable for applications in electronics manufacturing, industrial equipment, HVAC control panels, and other environments requiring reliable LED indicators.
Maximum forward current: 150 mA. Maximum power dissipation: 75 mW. Surface mount package with subminiature dimensions. Dome-shaped clear lens for wide viewing angle of 20°. Emission wavelength: 570 nm (green). Luminous intensity of 800 mcd.
Lead types include Gull-wing, yoke, and z-bend. Tape and reel packaging for automated assembly. RoHS compliant for environmental safety. Manufactured in China.
This Kingbright LED is a dependable choice for electronics designers seeking a small footprint indicator LED with efficient surface mount technology packaging. Explore other LED types and lighting components in EnvMart’s extensive industrial electronics section to find additional compatible solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for the Kingbright KM2520CGCK09 is 150 mA.
This model has a luminous intensity of 800 mcd.
The dominant wavelength of the emitted light is 570 nm, which corresponds to green light.
The lens dimensions are 2.5 x 2 x 2.8 mm.
The viewing angle of this LED is 20 degrees, suitable for wide-angle illumination.
It is packaged in tape and reel format, which is efficient for automated assembly.
The lead types for this LED include Gull-wing, yoke, and z-bend.
The maximum power dissipation for the Kingbright KM2520CGCK09 is 75 mW.
The forward voltage for this LED is 2.5 V.
Yes, this LED complies with RoHS environmental standards, restricting hazardous substances.
The mount type for this model is surface mount.
This LED is suitable for various electronic display and indicator applications, including industrial equipment and HVAC control panels.
