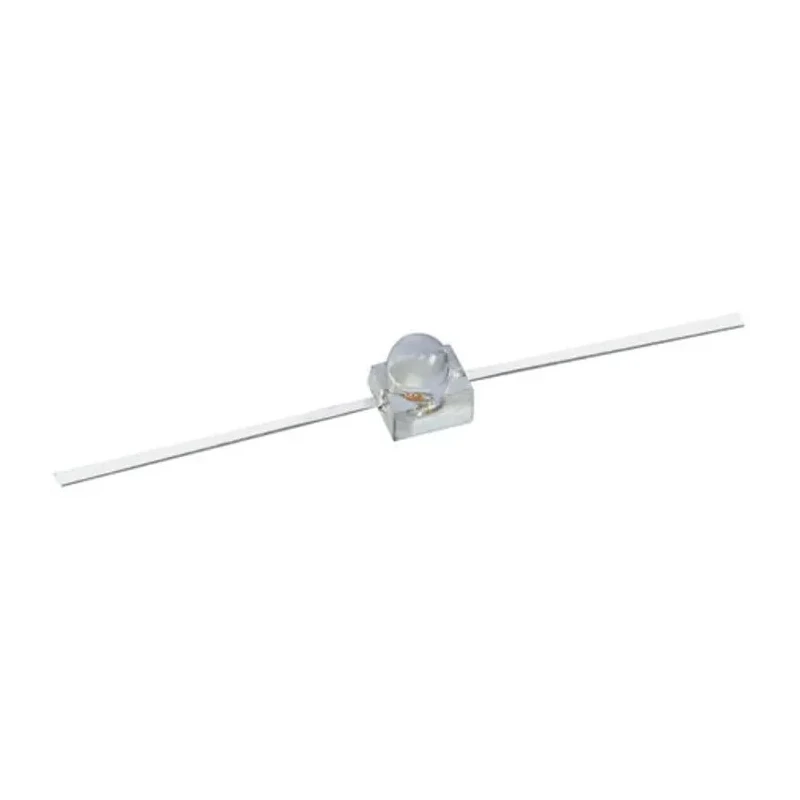

Kingbright 2.5 V Green LED Subminiature Surface Mount LED with 140mA Forward Current KM2520SGC01
Specifications
| Country of Origin | China |
|---|---|
| Brand | Kingbright |
| Model | KM2520SGC01 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | KM2520 |
| Maximum forward current | 140mA |
| Viewing angle | 20 ° |
| Package Type | Subminiature |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Dominant Wavelength | 568nm |
| Forward Voltage | 2.5V |
| Number of Pins | 2 |
| LED Luminosity | 90 mcd |
| Maximum Power Dissipation | 62.5mW |
| Lens Dimensions | 2.5 x 2 x 2.8 mm |
| Lens Shape | Dome |
| Lead types | Gull-wing (GW), yoke and z-bend |
Key Features
- This LED emits bright green light with a dominant wavelength of 568nm.
- It features a dome-shaped clear lens and a wide 20° viewing angle.
- The package size is compact at 2.5 x 2 x 2.8 mm, suitable for space-constrained applications.
- The LED supports surface mounting and comes in tape & reel packaging for automated assembly.
- It has a maximum power dissipation rating of 62.5mW for reliable performance.
- This product complies with RoHS standards, ensuring environmental safety.
- Constructed with gull-wing, yoke, and z-bend lead types for flexible mounting options.
- The device is made in China and designed for long life with solid state reliability.
Product Description
Kingbright KM2520SGC01 is a high-quality green LED designed in a subminiature surface mount package offering reliable solid state lighting performance. The device operates at a forward voltage of 2.5 V with a maximum forward current of 140mA, suitable for a variety of electronic applications requiring clear green illumination.
The clear dome-shaped lens with dimensions of 2.5 x 2 x 2.8 mm provides a focused but wide 20° viewing angle, enabling efficient light distribution in compact spaces. The maximum power dissipation of 62.5mW ensures durability during continuous operation.
This LED is designed for surface mount technology (SMT) and supplied in tape & reel packaging, optimizing it for automated installation processes. Lead types include gull-wing, yoke, and z-bend styles, offering flexibility during PCB assembly.
Compliant with RoHS directives, the KM2520SGC01 supports environmentally conscious manufacturing while delivering consistent performance at a dominant wavelength of 568nm with brightness up to 90 mcd.
Typical applications for this LED include electronic component lighting, indicators for industrial control panels, signaling equipment, and other devices in electronics manufacturing.
Bright green subminiature LED with 2.5 V forward voltage and 140mA current rating. Compact 2.5 x 2 x 2.8 mm domed lens with 20° viewing angle. Tape & reel packaged for SMT assembly and lead flexibility. Compliant with RoHS for environmental safety.
Ideal for use in electronic displays, indicators, and optoelectronic devices. Explore more high-quality LEDs and optoelectronic components from Kingbright and across our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of this LED is 2.5 V.
The maximum forward current for the KM2520SGC01 is 140mA.
This LED features a wide viewing angle of 20°.
The lens dimensions are 2.5 x 2 x 2.8 mm.
The LED has a luminosity of 90 mcd.
It is packaged in tape & reel format, suitable for automated assembly.
The LED supports gull-wing, yoke, and z-bend lead types for flexible mounting options.
Yes, this model is compliant with RoHS standards, ensuring environmental safety.
The maximum power dissipation rating is 62.5mW.
This LED is manufactured in China.
Typical applications include electronic component lighting, indicators for industrial control panels, and signaling equipment.
The dominant wavelength is 568nm.
