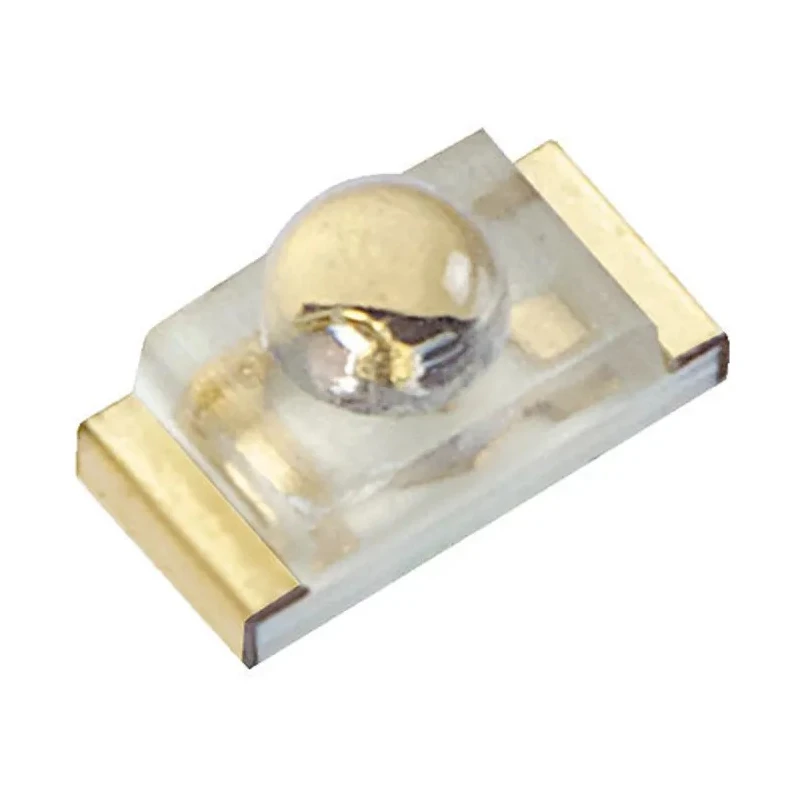

Kingbright 2.5 V Green SMT Chip LED 0603 Surface Mount Dome Lens 190 mcd Luminosity KPTD-1608CGCK
Specifications
| Country of Origin | China |
|---|---|
| Brand | Kingbright |
| Dimensions | 1.6 x 0.8 mm |
| Model | KPTD-1608CGCK |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | KPTD-1608 |
| Maximum forward current | 150mA |
| Viewing angle | 60 ° |
| Package Type | 0603 |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Dominant Wavelength | 570nm |
| Forward Voltage | 2.5V |
| Number of Pins | 2 |
| LED Luminosity | 190 mcd |
| Maximum Power Dissipation | 75mW |
| Lens Dimensions | 1.6 x 0.8 x 0.95 mm |
| Lens Shape | Dome |
Key Features
- The 0603 surface mount package features a dome-shaped, clear lens.
- Maximum forward current is rated at 150 mA for reliable operation.
- Power dissipation maximum is 75 mW for energy-efficient use.
- The LED emits green light with a dominant wavelength of 570 nm.
- Viewing angle of 60 degrees ensures uniform illumination for indicators and backlighting.
- Compliant with RoHS standards ensuring environmental safety.
- Packaged in tape and reel format for easy assembly automation.
- Equipped with 2 pins for surface mounting on PCBs.
Product Description
Kingbright KPTD-1608CGCK is a green SMT chip LED designed for surface mounting applications. It features a 0603 standard footprint with a dome-shaped clear lens that provides bright and focused illumination measured at 190 mcd luminosity. The LED operates at a forward voltage of 2.5 V and supports a maximum forward current of 150 mA, allowing low power consumption with a power dissipation maximum of 75 mW.
This 2-pin device has compact dimensions of 1.6 mm length, 0.8 mm width, and 0.95 mm height, making it suitable for dense electronic assemblies in industrial, commercial, and consumer electronics. The 60-degree viewing angle enables bright indicator lights and effective backlighting solutions. The dominant wavelength of 570 nm confirms its green light output with high color purity.
Certified to RoHS compliance, the KPTD-1608CGCK LED is environmentally friendly and free from hazardous substances. Its tape and reel packaging supports high-volume automated pick-and-place manufacturing, enhancing production efficiency.
Popular applications include status indicators, instrument panels, display backlighting, and general-purpose illumination in electronic devices across industrial, communication, and consumer sectors.
The 0603 package with dome lens optimizes light distribution and footprint efficiency. Moderate electrical ratings ensure durability and energy conservation. Highly reliable surface mount design suitable for automated PCB assembly.
RoHS compliant manufacturing supports sustainable electronics production. Tape and reel packaging format is compatible with automated insertion machines. Explore the Kingbright LED catalog and find the perfect indicator and backlight LED components for your next electronic design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for the KPTD-1608CGCK LED is rated at 150 mA.
This LED emits green light with a dominant wavelength of 570 nm.
The dimensions of this LED are 1.6 mm in length, 0.8 mm in width, and 0.95 mm in height.
The viewing angle of the KPTD-1608CGCK is 60 degrees, providing uniform illumination.
The maximum power dissipation for this model is 75 mW, ensuring energy-efficient operation.
The KPTD-1608CGCK is packaged in tape and reel format, which is suitable for automated assembly.
This LED features 2 pins for surface mounting on PCBs.
Yes, the KPTD-1608CGCK is compliant with RoHS standards, ensuring it is free from hazardous substances.
The luminosity of the KPTD-1608CGCK LED is measured at 190 mcd.
The forward voltage for the KPTD-1608CGCK is 2.5 V.
This LED is suitable for applications such as status indicators, instrument panels, and display backlighting.
The KPTD-1608CGCK supports surface mounting, making it suitable for dense electronic assemblies.
