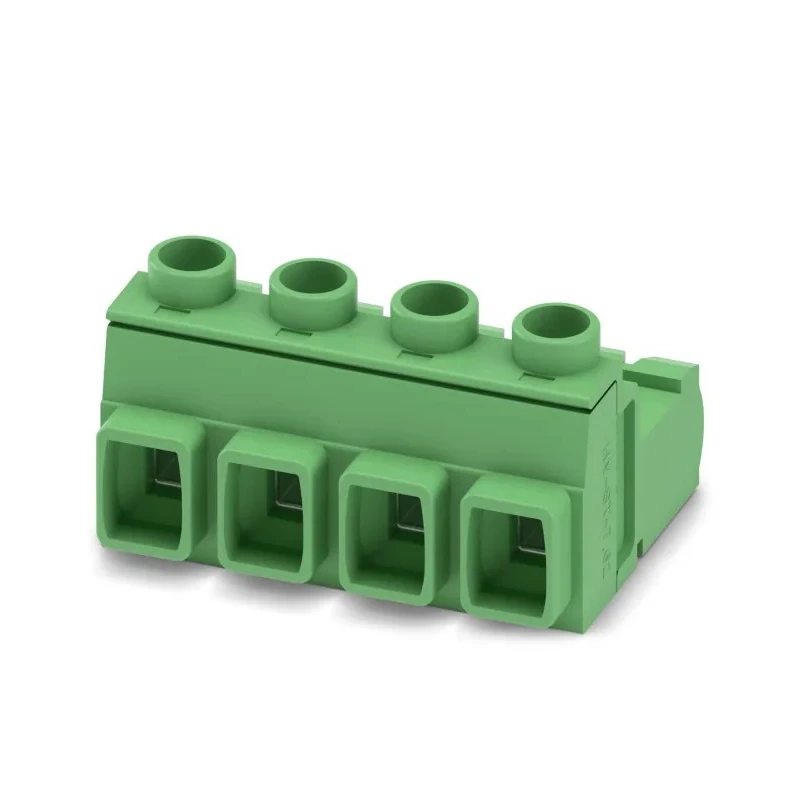

Phoenix Contact Pluggable Terminal Block 4-Contact 7.62 mm Pitch 1 Row 16A Polyamide Housing 1745645

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact Pluggable Terminal Block 4-Contact 7.62 mm Pitch 1 Row 16A Polyamide Housing 1745645

Name: Phoenix Contact Pluggable Terminal Block 4-Contact 7.62 mm Pitch 1 Row 16A Polyamide Housing 1745645
Brand: PHOENIX CONTACT
SKU: 411236
Price: 8.29 USD
Availability: InStock



Category Pluggable Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	India
Voltage	1kV
Brand	Phoenix Contact
Colour	Green
Orientation	Straight
Current	16A
Length	22.8mm
Model	1745645
Depth	17.5mm
Width	30.26mm
Housing Material	Polyamide
Series	GIC 2.5 HCV/4-ST-7.62
Number of Rows	1
Pitch	7.62mm
Number of Contacts	4
Connector Gender	Male
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	2.5mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	12AWG
Wire Connection Method	Screw Connection with Tension Sleeve

Key Features

Constructed with durable polyamide housing for reliable insulation.
Designed with screw connection and tension sleeve wire connection method.
Suitable for wire sizes from 0.2 mm² to 2.5 mm² and 24 AWG to 12 AWG.
Green color coding for easy identification in electrical panels.
Male connector gender with straight orientation for easy integration.
Ideal for PCB connection applications in electronics and industrial automation.

Product Description

Phoenix Contact 1745645 is a high-quality pluggable terminal block designed for secure electrical connections in industrial, electronics, and automation applications. It features 4 contacts arranged in a single row with a 7.62 mm pitch, facilitating efficient PCB integration.

The terminal block's polyamide housing ensures robust mechanical and electrical insulation while providing resistance to industrial environments. Rated for a nominal current of 16 A and a rated voltage of up to 1000 V (III/2), it supports reliable power transmission and safety compliance.

This model utilizes a screw connection with tension sleeve system, offering secure and vibration-resistant wiring suitable for conductor sizes from 0.2 mm² up to 2.5 mm² (24 AWG to 12 AWG). The male connector design with straight orientation enhances ease of assembly and disassembly during maintenance.

Its compact physical dimensions of 22.8 mm length, 30.26 mm width, and 17.5 mm depth make it suitable for space-constrained applications. The green coloration aids in visual identification and wiring organization within complex electrical systems.

Applications include electronic component manufacturing, power connectors in automation machinery, control panels, and other industrial electrical installations requiring reliable and modular terminal solutions.

Durable polyamide housing ensures excellent insulation and mechanical stability. Screw connection with tension sleeve enables secure conductor wire fastening. Supports conductor sizes from 0.2 mm² to 2.5 mm² (24 AWG to 12 AWG).

Rated current of 16 A and rated voltage of 1 kV enhances safety and performance. Compact size facilitates integration into PCB and electrical modules. Green color coding simplifies wiring and identification. Single row, 4 contact design provides flexible connectivity options.

Male connector gender and straight orientation allow straightforward mating.

This Phoenix Contact terminal block is a trusted choice for electronics manufacturing, industrial automation, and power distribution systems. Browse more Pluggable Terminal Blocks by Phoenix Contact at EnvMart for reliable electrical connectivity solutions.
