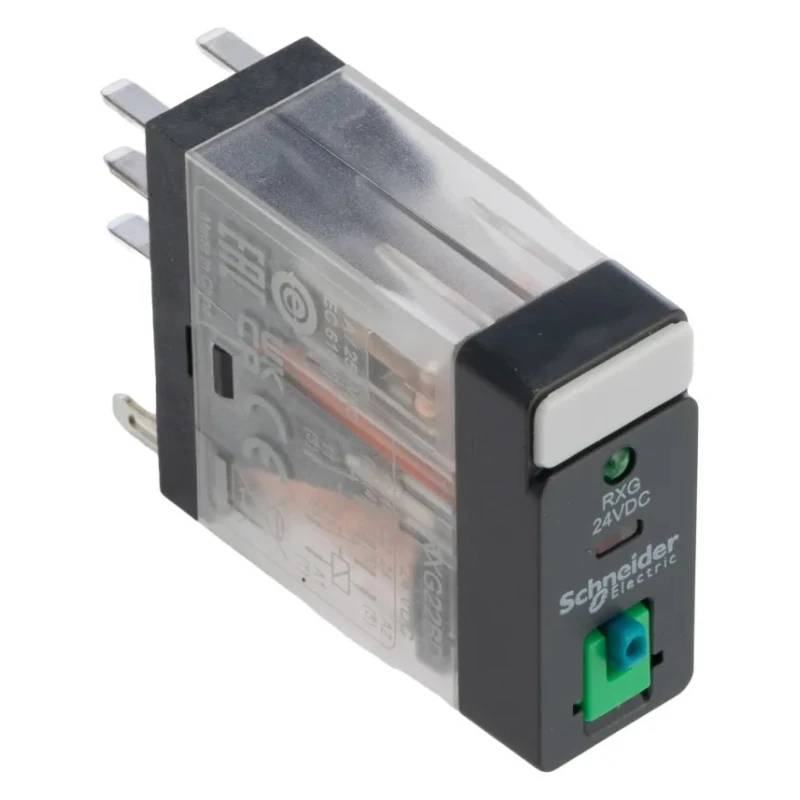

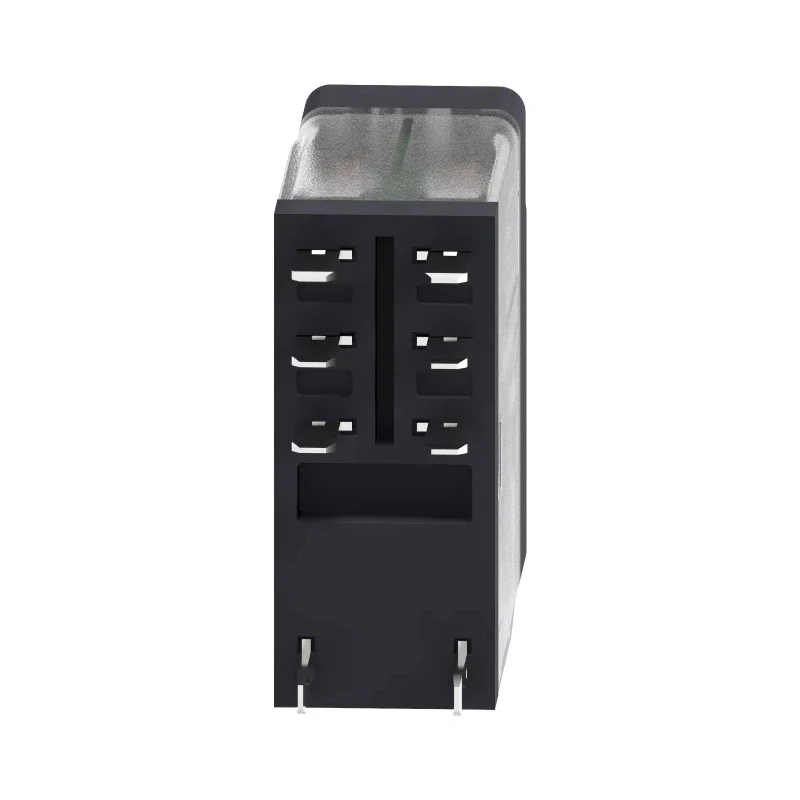

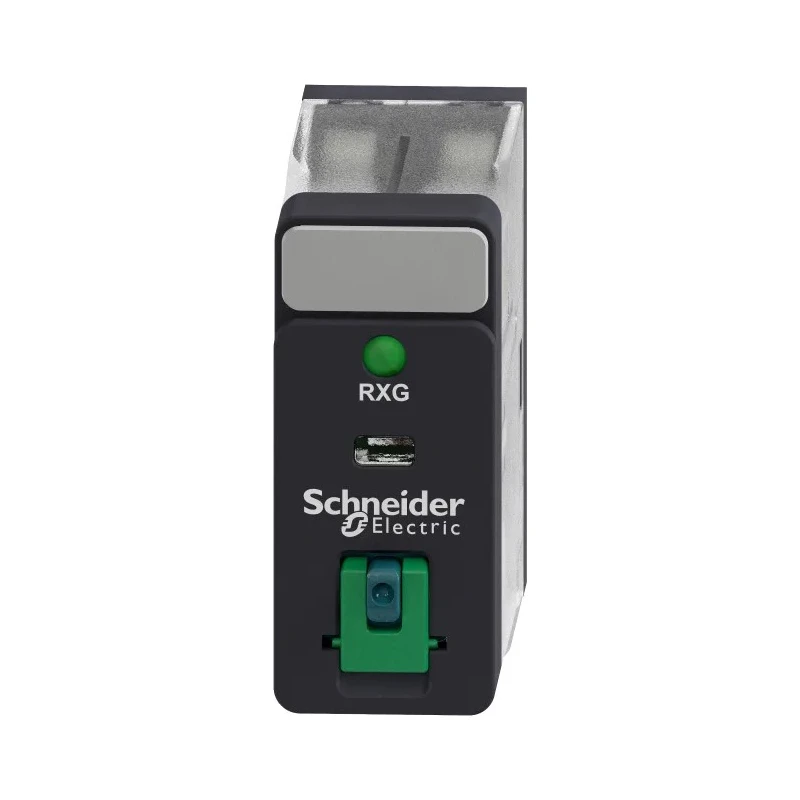

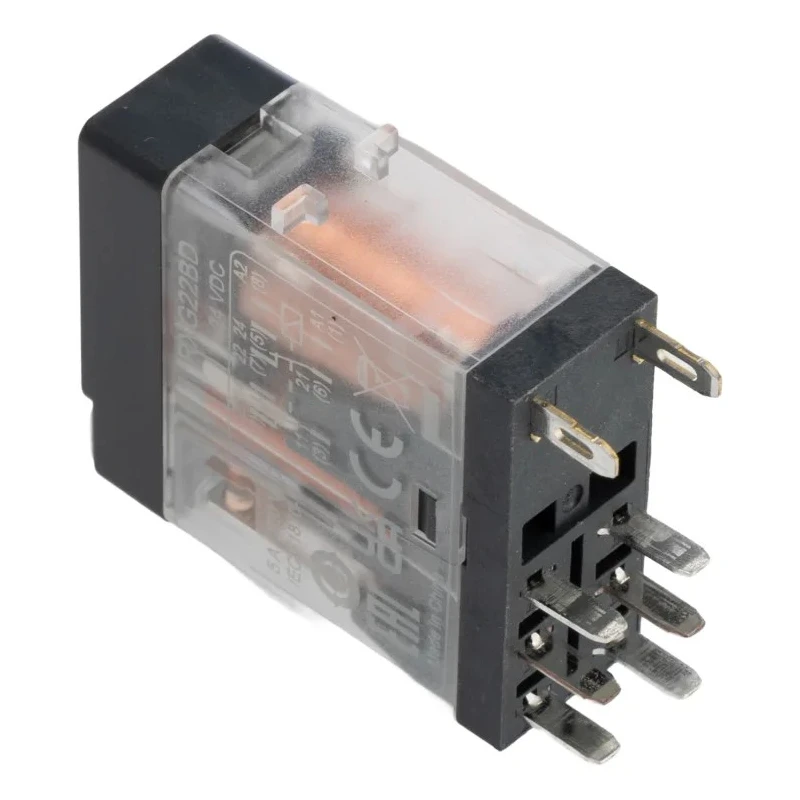

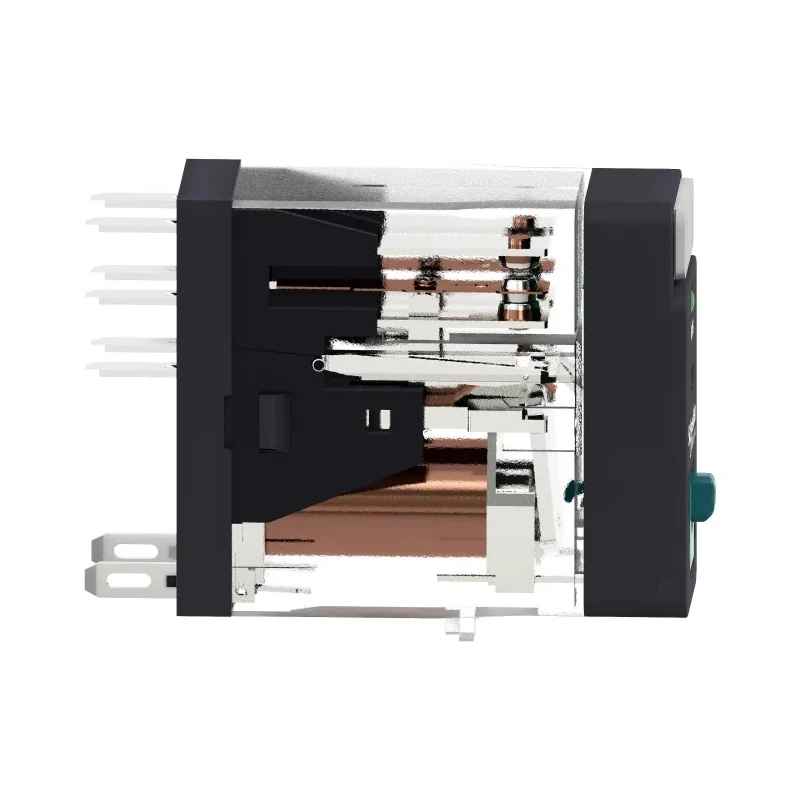

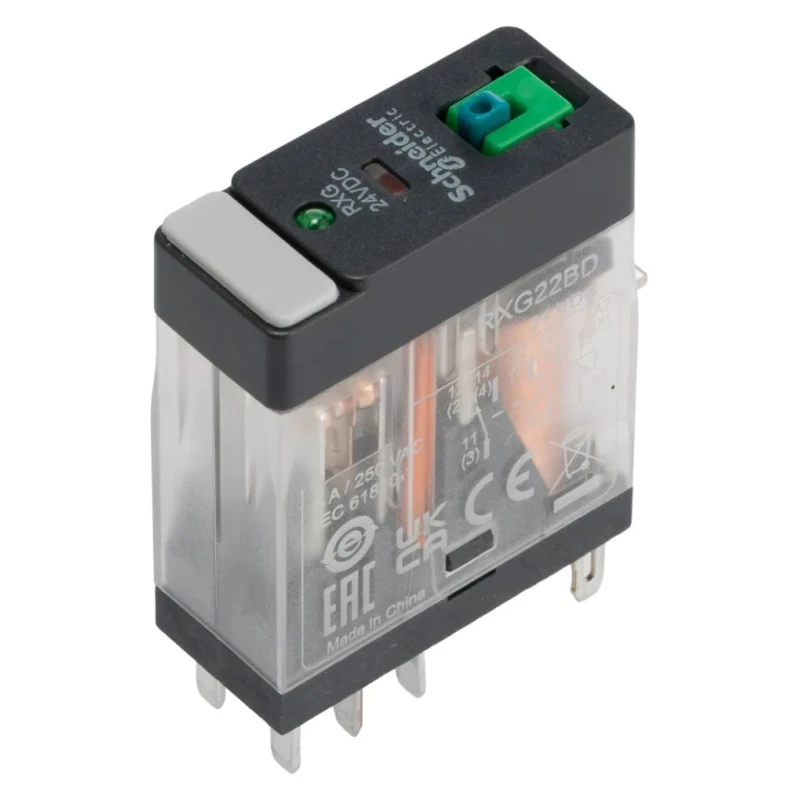

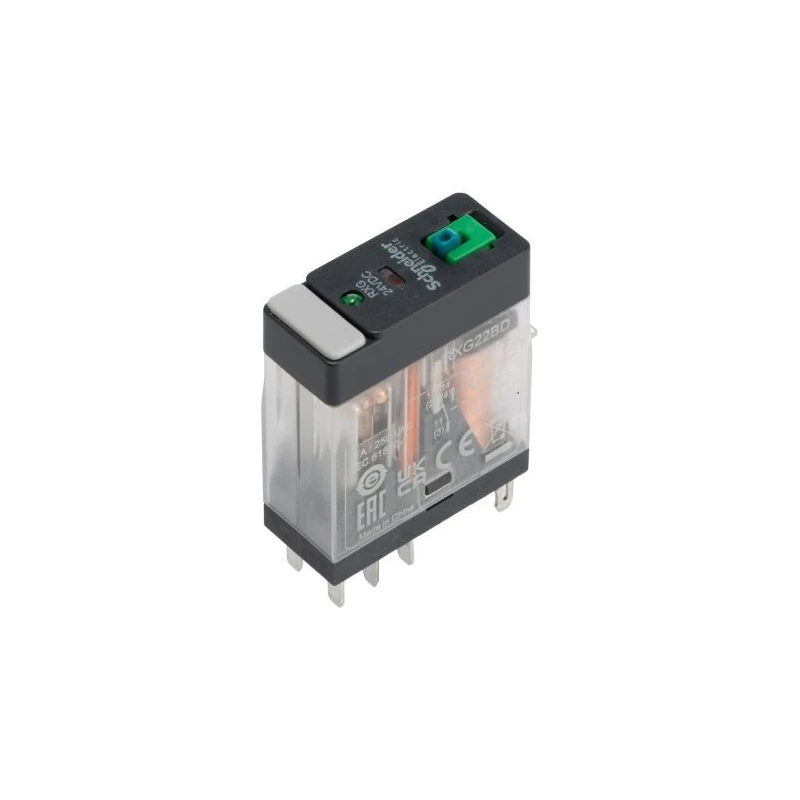

Schneider Electric Power Relay 24V DC Coil 5A Switching Current DPDT RXG22BD
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 37.1mm |
| Length | 13mm |
| Model | RXG22BD |
| Width | 30.6mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXG |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Plug-In |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CSA, CE |
| Coil Resistance | 1.1kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 530mW |
| Better World Claim | Designed for Disassembly |
Key Features
- Operates with a 24V DC coil voltage for reliable activation.
- Dual Pole Double Throw (DPDT) contact configuration provides flexible switching options.
- Supports switching currents up to 5 amperes, suitable for moderate power loads.
- Compact dimensions of 13mm length, 30.6mm width, and 37.1mm height optimize panel space usage.
- Plug-in terminal type facilitates easy installation and maintenance.
- Wide operating temperature range from -40°C to +70°C ensures performance in diverse environments.
- High insulation strength rated at 5kV AC enhances operational safety.
- Silver alloy contact material offers low contact resistance of 100mΩ, ensuring efficient conductivity.
Product Description
Schneider Electric RXG22BD power relay is a robust interface relay designed for automation systems requiring reliable switching performance. Featuring a 24V DC coil and a DPDT contact configuration, this relay delivers a switching current of 5A, suitable for both resistive and inductive loads in industrial and control panel environments.
The device measures compactly at 13mm length, 30.6mm width, and 37.1mm height, enabling efficient space utilization in equipment assemblies. The plug-in terminal type simplifies installation and enables quick replacement during maintenance operations. Operating across a temperature range of -40°C to +70°C, this relay guarantees dependable functionality even under harsh environmental conditions.
Constructed with silver alloy contacts, the RXG22BD maintains a low contact resistance of 100mΩ, ensuring consistent electrical performance and minimal losses. It complies with CSA and CE standards, meeting international quality and safety requirements.
Its high insulation strength of 5kV AC enhances operational safety, protecting both equipment and personnel. This Power Relay is certified as a Better World product with a design focused on disassembly for sustainability.
Typical applications include control panels for automation, relay interfaces in machinery, safety and alarm systems, HVAC equipment control, and general electrical energy management in industrial settings.
Operates at 24V DC coil voltage providing reliable actuation. DPDT contact configuration allows versatile switching capabilities. Supports a 5A switching current for electrical load control. Compact size enhances fitment in tight assembly areas.
Plug-in terminals facilitate easy installation and service. Wide operating temperature range from -40°C to +70°C. Silver alloy contacts reduce contact resistance to 100mΩ. Certified CSA and CE compliant for safety and performance.
Designed with high insulation strength of 5kV AC. Suitable for resistive and inductive load switching. Better World certified for environmental sustainability. Explore the full range of Schneider Electric products on EnvMart for industrial automation and electrical control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for this power relay is 24V DC, which allows for reliable activation.
This model supports a maximum switching current of 5A, suitable for moderate power loads.
The RXG22BD features a Dual Pole Double Throw (DPDT) contact configuration, providing flexible switching options.
The relay measures 13mm in length, 30.6mm in width, and 37.1mm in height, optimizing panel space usage.
The contact material used in this relay is silver alloy, which helps achieve a low contact resistance of 100mΩ.
This power relay operates effectively within a temperature range of -40°C to +70°C, ensuring performance in diverse environments.
The relay features a plug-in terminal type, which facilitates easy installation and maintenance.
The RXG22BD complies with CSA and CE standards, ensuring it meets international quality and safety requirements.
This relay has a high insulation strength rated at 5kV AC, enhancing operational safety.
The coil power for this model is 530mW, which is necessary for its operation.
This relay is suitable for switching both resistive and inductive loads in industrial and control panel environments.
The contact resistance of this relay is 100mΩ, ensuring efficient conductivity.
