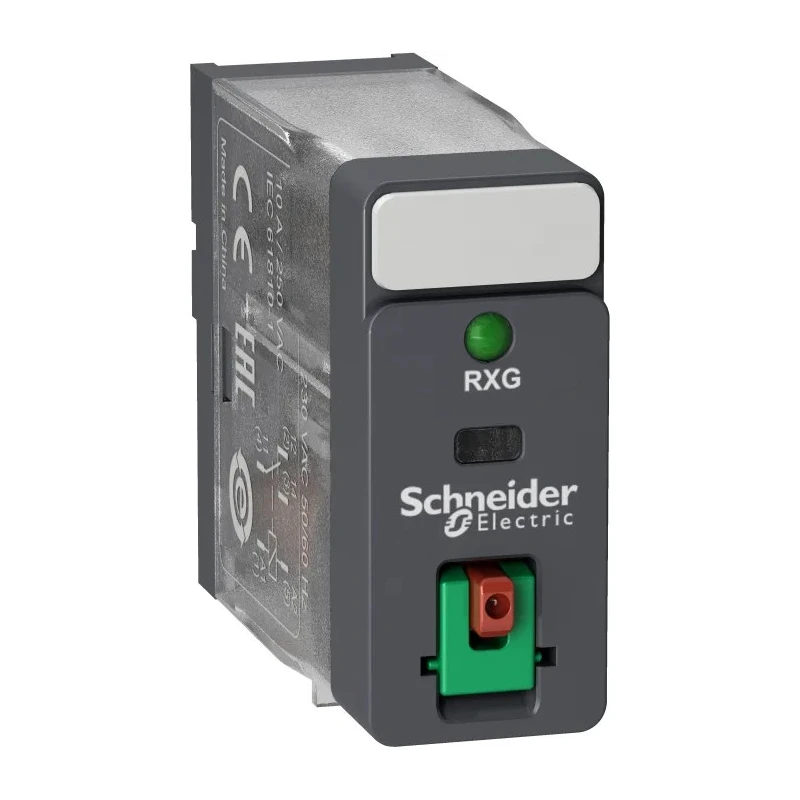

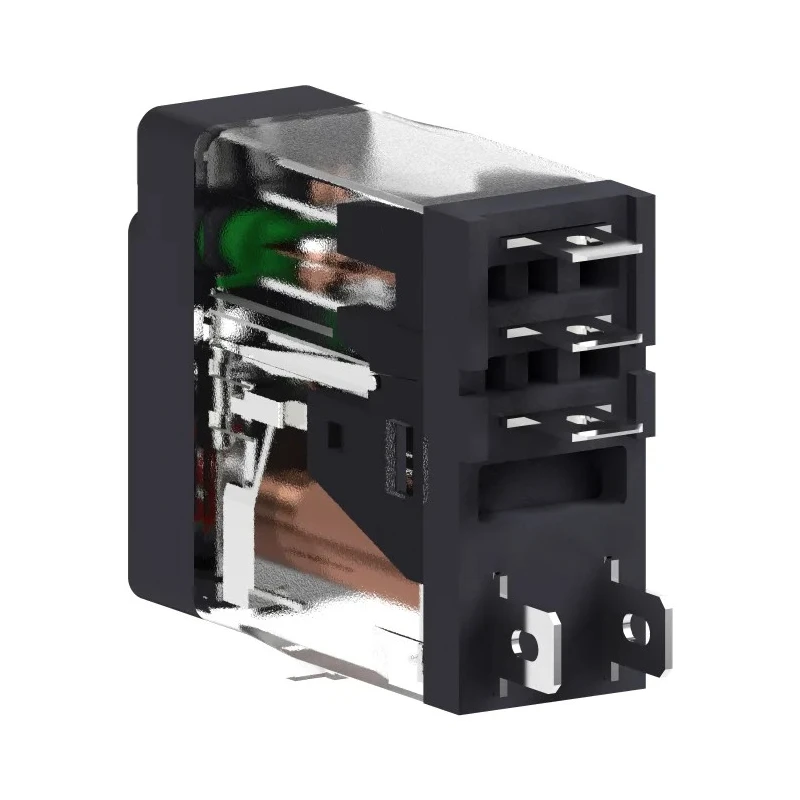

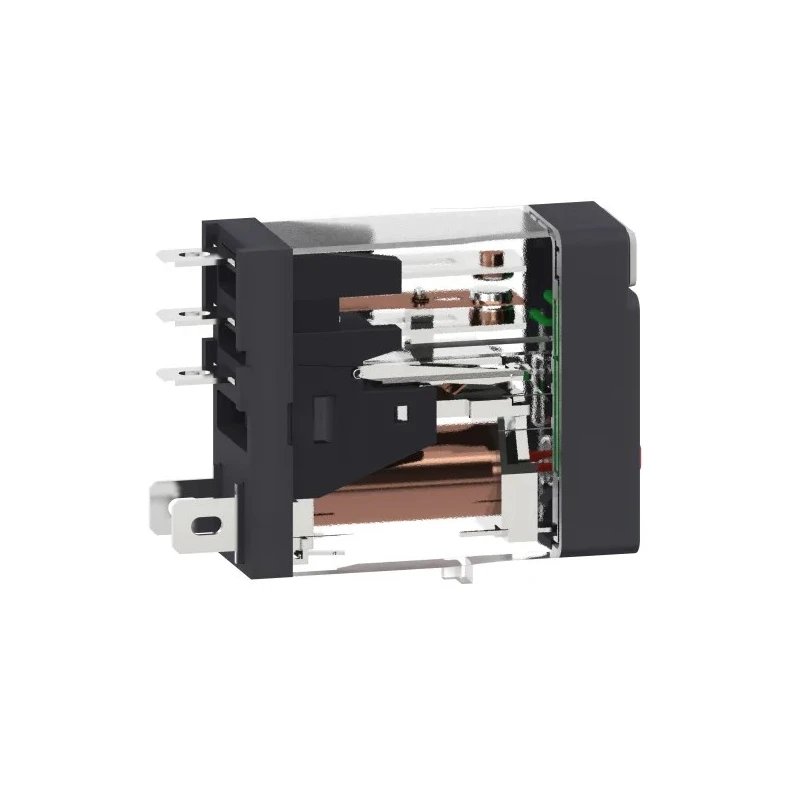

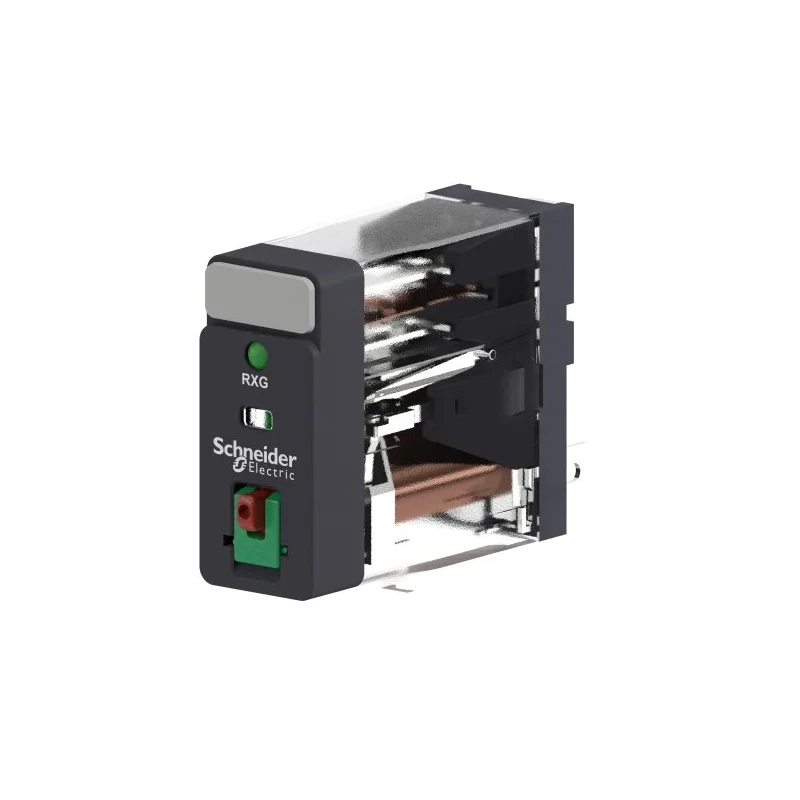

Schneider Electric Power Relay, 24V AC Coil, 10A Switching Current, SPDT, Harmony Relay RXG RXG12B7
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 37.1mm |
| Length | 13mm |
| Model | RXG12B7 |
| Width | 30.6mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXG |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CE, CSA |
| Coil Resistance | 260Ω |
| Coil Voltage | 24V ac |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 820mW |
| Better World Claim | Designed for Disassembly |
Key Features
- Designed for plug-in mounting with compact 16mm width for easy installation.
- Features single pole double throw (SPDT) contact configuration rated for 10A switching current.
- Operates reliably between -40°C to 70°C ambient temperature conditions.
- Coil resistance of 260 ohms ensures efficient coil power consumption of 820mW.
- Constructed with durable silver alloy contacts offering low contact resistance of 100mΩ.
- Suitable for 250V AC and 30V DC switching voltage applications.
- Compliance with CE and CSA standards ensures high quality and safety.
- Better World product designed for disassembly and sustainability.
Product Description
Schneider Electric RXG12B7 Power Relay is a high-performance plug-in relay designed for industrial automation and control systems. Featuring a 24V AC coil voltage and a robust 10A switching current capacity, the relay offers a single pole double throw (SPDT) contact configuration perfect for a wide range of electrical switching tasks.
The relay is built as part of the Harmony Relay RXG series, providing reliable switching power up to 2.5 kVA with coil resistance at 260 ohms and coil power consumption of just 820 mW. Its compact dimensions with a width of just 16mm allow efficient use of enclosure space, enhancing the reliability and compactness of control panels.
Operating effectively in harsh environments with a temperature range from -40°C to 70°C, it ensures excellent durability and performance stability. The relay’s silver alloy contacts reduce wear and maintain low contact resistance (100mΩ), which improves operational reliability over time.
Safety and standards compliance are assured with CE and CSA approvals. This Better World product is designed for easy disassembly, supporting sustainability goals in industrial environments.
This relay is widely used in PLC interface applications and hard-wired logic automated systems, complementing programmable logic controllers (PLCs) and ensuring robust control in manufacturing, HVAC, water treatment, and other industrial sectors.
Designed for plug-in installation with a slim profile and compact size. Single pole double throw contact configuration rated for 10A switching current. Wide operating temperature range ensures versatility in different environmental conditions.
Low coil power consumption optimizes energy usage. Silver alloy contacts ensure durability and low resistance. Compliance with key international standards for quality and safety. Eco-friendly design supports sustainability initiatives.
Explore more Schneider Electric products and related Power Relays on EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 10A.
This model operates with a coil voltage of 24V AC.
It features a single pole double throw (SPDT) contact configuration.
The relay operates effectively within a temperature range of -40°C to 70°C.
The contact resistance is rated at 100mΩ, which helps improve operational reliability.
The contacts are constructed from silver alloy, which reduces wear and maintains low resistance.
The relay has a height of 37.1mm, a width of 30.6mm, and a length of 13mm.
It complies with CE and CSA standards, ensuring quality and safety.
The coil resistance is 260 ohms, which contributes to its efficient power consumption.
The coil power consumption is rated at 820mW.
Yes, it is designed for plug-in mounting, allowing for easy installation in control panels.
It is suitable for applications in PLC interface, manufacturing, HVAC, and water treatment systems.
