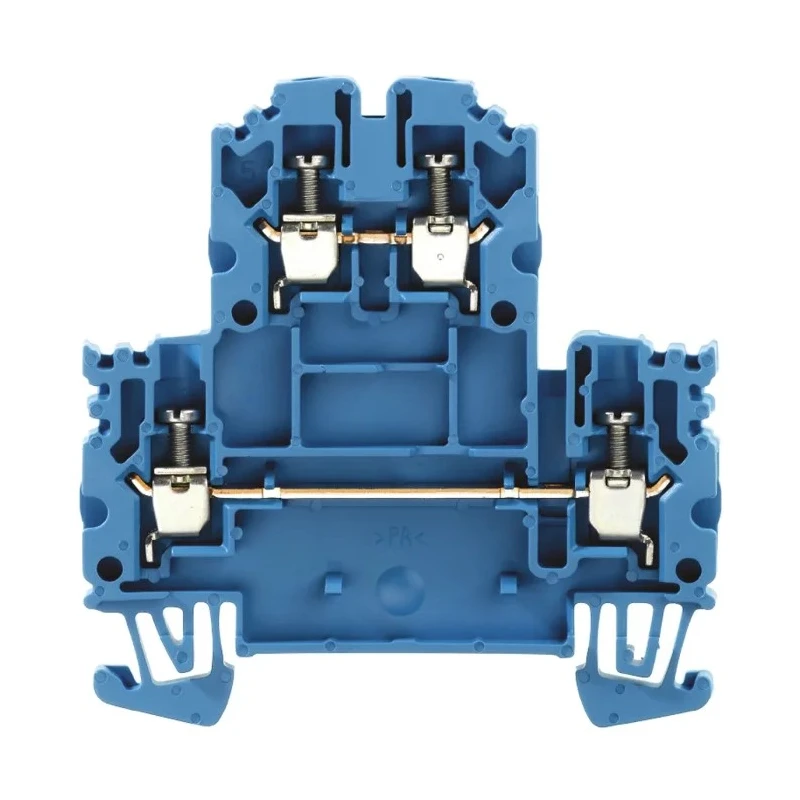

Weidmüller W Series Double Level Terminal Block Blue 2.5mm² 2-Level Screw 1041680000
Specifications
| Country of Origin | Romania |
|---|---|
| Voltage | 800V |
| Brand | Weidmüller |
| Colour | Blue |
| Series | W |
| Termination Type | Screw |
| Maximum Operating Temperature | 120°C |
| Number of Levels | 2 |
| Minimum Operating Temperature | -50°C |
| Pitch | 5.1mm |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 12AWG |
| Cable CSA | 2.5mm² |
| Terminal Block Current | 24A |
Key Features
- Double-tier screw connection design for space-efficient wiring.
- Snap-on mounting compatible with 'Top Hat' DIN rails.
- Manufactured with flame-retardant nylon 6.6 for high safety standards.
- Robust copper current bars ensure superior electrical conductivity.
- Wide ambient temperature operation range from -50°C to 120°C.
- Supports a cable cross-sectional area of 2.5mm² with wire sizes 30 AWG to 12 AWG.
- Rated for 24 A current and 800 V voltage applications.
- Complies with relevant industrial safety and environmental standards.
Product Description
Weidmüller 1041680000 W Series Double Level Terminal Block is a high-quality, blue-colored terminal block designed for secure electrical connections within industrial and automation systems. The 2-level screw connection terminal block supports a cable cross-section area of 2.5mm² and operates at voltages up to 800 V, making it suitable for robust, high-current electrical applications.
It features a double-tier design allowing multiple wiring levels, which optimizes space usage on DIN rails, particularly in compact automation and control panel installations. The screw connection type provides reliable and strong clamping for electrical conductors, ensuring stable performance under operational stresses.
Constructed from durable nylon 6.6 material, the terminal block has a continuous temperature rating of 120°C, with short term tolerance up to 180°C. It is self-extinguishing per UL94V-0 standards, free from hazardous substances like cadmium and halogens, promoting safety and environmental compliance.
The current bars are made from thick 10 mm electrolytic copper, ensuring an actual current load surpassing the nominal 24 A rating. Terminal blocks can be easily mounted on symmetric 'Top Hat' DIN rails (BS5584:1978, EN 50022) using snap-on technology, accelerating installation and maintenance. The product is touch-proof following BS 3042 standard, enhancing user safety.
This terminal block supports wire sizes from 30 AWG to 12 AWG, accommodating a wide variety of cable gauges. It performs reliably within a temperature range from -50°C minimum to 120°C maximum, suitable for diverse environmental conditions.
Double-tier screw connection design for space-efficient wiring. Snap-on mounting compatible with 'Top Hat' DIN rails. Manufactured with flame-retardant nylon 6.6 for high safety standards. Robust copper current bars ensure superior electrical conductivity.
Wide ambient temperature operation range from -50°C to 120°C. Supports a cable cross-sectional area of 2.5mm² with wire sizes 30 AWG to 12 AWG. Rated for 24 A current and 800 V voltage applications. Complies with relevant industrial safety and environmental standards.
Originates from Romania, ensuring European quality manufacturing.
This terminal block is ideal for industrial automation, electrical control systems, power distribution, and manufacturing environments requiring reliable, multi-level connection solutions. For more options and related products, explore the comprehensive DIN Rail Terminal Blocks category at EnvMart.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum voltage of 800 V.
It has a current rating of 24 A.
It operates within a temperature range from -50°C to 120°C.
This terminal block supports wire sizes from 30 AWG to 12 AWG.
It is compatible with snap-on mounting on 'Top Hat' DIN rails.
It is manufactured from flame-retardant nylon 6.6.
This model features a double-level design, allowing for two levels of wiring.
The pitch of this unit is 5.1 mm.
Yes, it is designed to be touch-proof following BS 3042 standards.
It is suitable for industrial automation, electrical control systems, and power distribution.
It supports a cable cross-sectional area of 2.5 mm².
