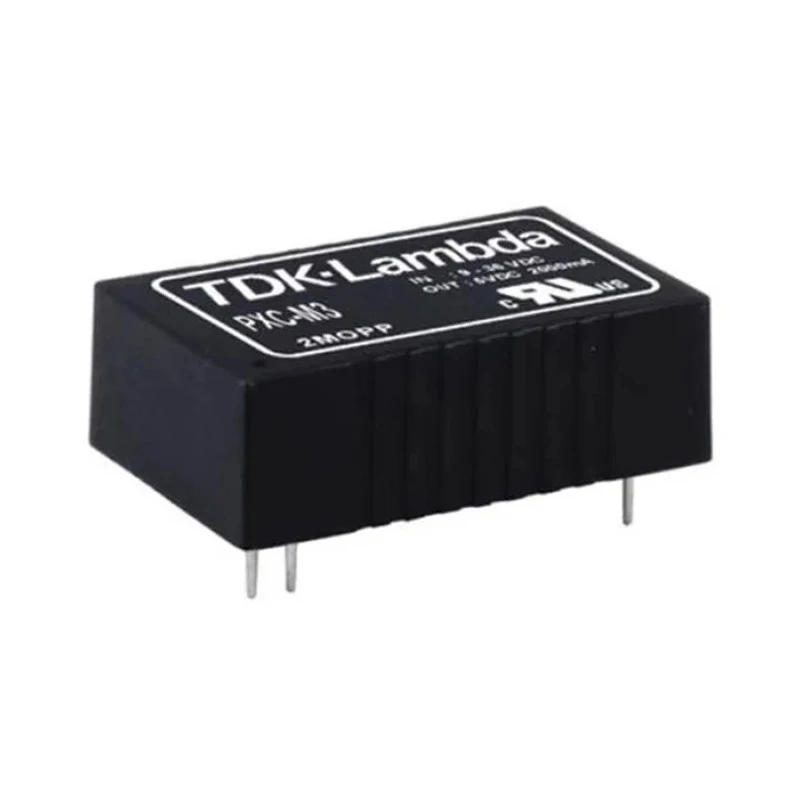

TDK-Lambda DC/DC Converter 15V DC 100mA 36V DC Input 9V DC Input 3W PCB DIP Package PXC-M03-24WD15
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TDK-Lambda PXC-M03 DC/DC Converter, 15V dc/ 100 mA |
| Brand | TDK-Lambda |
| Efficiency | 0.86% |
| Length | 31.8mm |
| Model | PXC-M03-24WD15 |
| Depth | 10.2mm |
| Gross Weight | 14g |
| Width | 20.3mm |
| Mount Type | PCB |
| Series | PXC-M03 |
| Maximum Operating Temperature | 105°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 6444000h |
| Number of outputs | 2 |
| Ripple and Noise | 40mV |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V dc |
| Number of Pins | 8 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 100mA |
| Isolation Voltage | 5kV |
| Output Current 2 | -0.1A |
| Input Ratio | 4:1 |
| Output Voltage 2 | -15V dc |
| Input Ratio4 | 1 |
Key Features
- Compact DIP package suitable for PCB mounting.
- Accepts a wide input voltage range from 9V to 36V DC.
- Provides dual output voltages of +15V DC and -15V DC.
- Features high isolation voltage up to 5kV for safety.
- Operating temperature range from -40°C to 105°C ensures broad environmental compatibility.
- Low ripple and noise output of 40mV for sensitive applications.
- High MTBF of 6,444,000 hours indicating long-term reliability.
- Designed for medical and communications industry requirements.
Product Description
The TDK-Lambda PXC-M03-24WD15 is a highly reliable DC/DC converter designed for medical and communication applications that demand stable and isolated power conversion.
This converter supports a wide input voltage range from 9V DC minimum to 36V DC maximum and provides dual output voltages of +15V DC and -15V DC at a maximum current of 100mA. It has a maximum output power of 3W.
Housed in a compact DIP package, the unit measures 31.8mm in length, 20.3mm in width, and 10.2mm deep, optimized for PCB mounting. It features a high isolation voltage of 5kV ensuring safety and meets demanding operational environments with an operating temperature range from -40°C to 105°C.
The module exhibits low ripple and noise levels limited to 40mV, ensuring minimal interference in sensitive electronic circuits. Its high Mean Time Between Failures (MTBF) of over 6 million hours demonstrates exceptional durability and reliability.
Efficiency is around 0.86%, supporting energy-efficient applications. The device complies with medical certifications, making it suitable for critical and precise industrial uses. Compact DIP package for easy PCB integration.
Wide input voltage of 9V to 36V DC. Dual outputs with ±15V DC voltage. High isolation voltage of 5kV for safety. Low ripple and noise output of 40mV. Operating temperature span from -40°C to 105°C. Long MTBF of 6,444,000 hours.
Output power capacity up to 3W. Efficiency rating of 0.86%. Dimensions optimized for PCB mounting: 31.8mm × 20.3mm × 10.2mm. This DC/DC converter is ideal for industrial, medical, and communication system power supply needs, providing robust and isolated power conversion performance.
Explore more DC/DC Converters on EnvMart for diverse applications in electronics and electrical power management.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It accepts a wide input voltage range from 9V DC to 36V DC.
This converter provides dual output voltages of +15V DC and -15V DC.
The maximum output power is 3W.
It has an efficiency rating of approximately 0.86%.
The isolation voltage is rated at 5kV, ensuring safety during operation.
The converter measures 31.8mm in length, 20.3mm in width, and 10.2mm in depth.
It operates within a temperature range of -40°C to 105°C.
It exhibits low ripple and noise levels limited to 40mV.
The MTBF is over 6,444,000 hours, indicating long-term reliability.
It is designed for PCB mounting, housed in a compact DIP package.
This model has two outputs.
It is designed for medical and communication applications that require stable and isolated power conversion.
