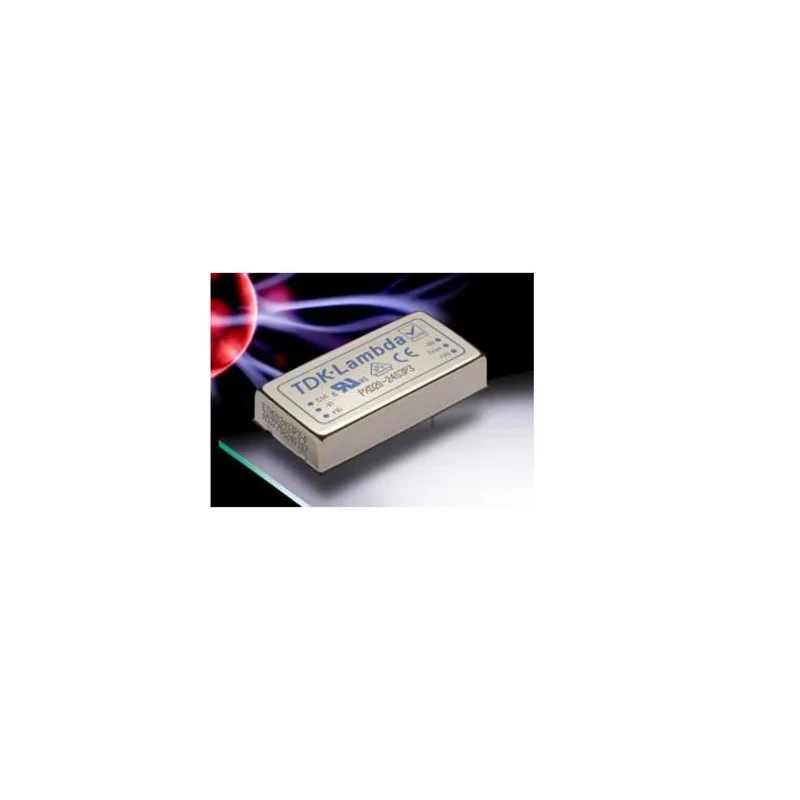

TDK-Lambda DC/DC Converter 12V dc 830 mA 75V dc Input 18V dc Input 10W PCB DIP Package PXD10-48WS12
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TDK-Lambda PXD DC/DC Converter, 12V dc/ 830 mA, 75 |
| Brand | TDK-Lambda |
| Efficiency | 0.84% |
| Length | 2in |
| Model | PXD10-48WS12 |
| Depth | 10.2mm |
| Gross Weight | 27g |
| Width | 1in |
| Mount Type | PCB |
| Series | PXD |
| Maximum Operating Temperature | 105°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1976000h |
| Number of outputs | 1 |
| Ripple and Noise | 50mV |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 18V dc |
| Number of Pins | 6 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 830mA |
| Isolation Voltage | 1.6kV |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
Key Features
- Compact DIP package designed for PCB mounting.
- Maximum output power of 10 watts with 0.84% efficiency for reliable performance.
- Isolation voltage up to 1600 V dc ensures safe operation in industrial environments.
- Features short circuit and overvoltage protection for enhanced device safety.
- Rated for operation between -40°C and 105°C ambient temperature.
- Single output design with low ripple and noise of 50 mV for stable output.
- Lightweight design weighing 27 grams facilitates easy integration in systems.
- Ideal for telecommunications, industrial, mobile telecom, and test equipment applications.
Product Description
The TDK-Lambda PXD10-48WS12 is a high-performance DC/DC converter designed for converting input voltages up to 75 V dc down to a regulated 12 V dc output, supplying a steady current of 830 mA. Packaged in a DIP form factor suitable for PCB mounting, this converter occupies a compact 2 inch by 1 inch footprint with a depth of 10.2 mm, making it ideal for space-constrained applications.
This unit features a 4:1 ultra-wide input voltage range allowing flexible power source options from 18 V dc to a maximum of 75 V dc. It delivers a maximum output power of 10 watts at an efficiency of 0.84%, minimizing energy loss and heat generation during operation.
Designed with a six-sided shield for electromagnetic compatibility and safety, the converter includes robust protection features such as short circuit protection and over voltage protection, essential for industrial, telecommunications, mobile telecom, and testing equipment environments. The isolation voltage rating of 1600 V dc provides additional safety against electrical faults.
The converter reliably operates in harsh temperature conditions ranging from -40 °C up to 105 °C, ensuring stable functionality in varied ambient environments. Its ripple and noise performance is limited to 50 mV, providing clean and stable power output to sensitive electronic circuits.
Compact DIP package for easy PCB mounting. Wide input voltage range from 18 V dc to 75 V dc. High isolation voltage of 1600 V dc for safety. Short circuit and overvoltage protections included. Low ripple and noise of 50 mV ensures clean output.
Single output delivering 12 V dc at 830 mA. Maximum output power of 10 W with 0.84% efficiency. Operating temperature range from -40 °C to 105 °C. Lightweight and compact dimensions for easy integration. Ideal for use in telecommunications, industrial, and mobile telecom applications.
This DC/DC converter is manufactured in Taiwan, Province Of China, reflecting quality assurance standards suitable for demanding industrial and electronic applications. Explore additional DC/DC Converters and power supply solutions on EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 10 watts.
It operates with an input voltage range from 18 V dc to 75 V dc, providing a 4:1 input ratio.
This DC/DC converter has an efficiency rating of 0.84%.
The dimensions of the DIP package are 2 inches in length, 1 inch in width, and 10.2 mm in depth.
The isolation voltage rating for this converter is 1600 V dc.
It can operate in ambient temperatures ranging from -40°C to 105°C.
The ripple and noise performance is limited to 50 mV, ensuring stable output.
It includes short circuit protection and overvoltage protection for enhanced safety.
This model weighs 27 grams, making it lightweight for easy integration.
It is designed for PCB mounting, suitable for compact applications.
It has a single output delivering 12 V dc at 830 mA.
This unit is ideal for telecommunications, industrial, mobile telecom, and test equipment applications.
