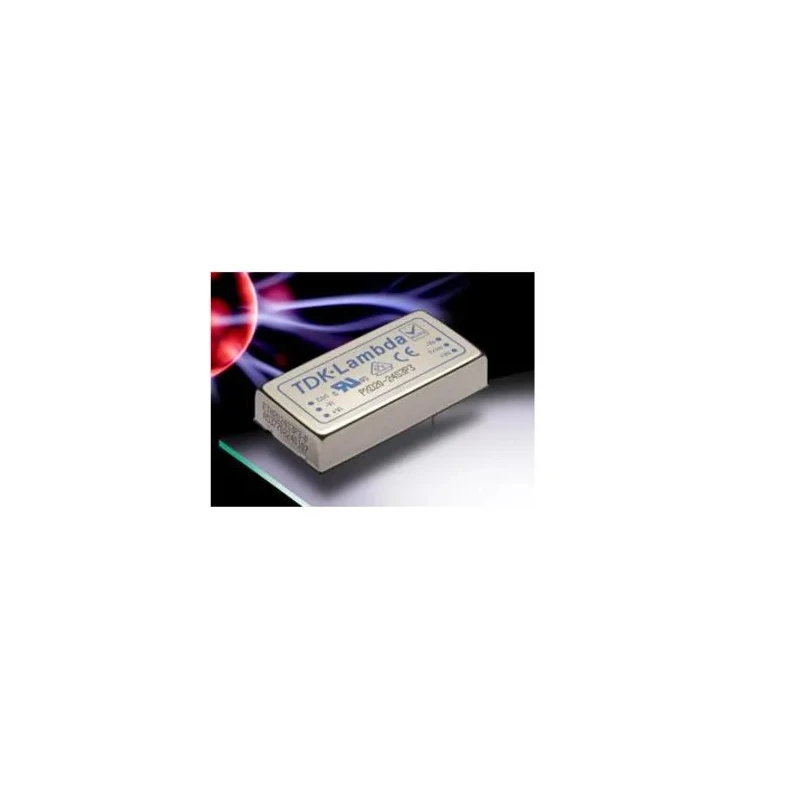

TDK-Lambda DC/DC Converter Dual Output 12V dc 420mA, 75V dc Max Input, 18V dc Min Input, 10W PCB Mount PXD10-48WD12
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TDK-Lambda PXD DC/DC Converter, 12V dc/ 420 mA, 75 |
| Brand | TDK-Lambda |
| Efficiency | 0.78% |
| Length | 2in |
| Model | PXD10-48WD12 |
| Depth | 10.2mm |
| Gross Weight | 27g |
| Width | 1in |
| Mount Type | PCB |
| Series | PXD |
| Maximum Operating Temperature | 105°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1976000h |
| Number of outputs | 2 |
| Ripple and Noise | 75mV |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 18V dc |
| Number of Pins | 6 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 420mA |
| Isolation Voltage | 1.6kV |
| Output Current 2 | -0.42A |
| Input Ratio | 4:1 |
| Output Voltage 2 | -12V dc |
| Input Ratio4 | 1 |
Key Features
- Dual output voltage of ±12V dc ensures flexible power supply needs.
- Maximum output power of 10W with an output current of 420mA.
- Compact PCB mount design with DIP package and 6 pins.
- Operating temperature from -40°C up to 105°C for reliable performance.
- High isolation voltage of 1600V dc provides electrical safety and signal integrity.
- Low ripple and noise of 75mV enable stable output voltage supply.
- Mean time between failures (MTBF) is 1,976,000 hours ensuring high reliability.
- Efficiency of 0.78% supports energy-saving operations.
Product Description
TDK-Lambda PXD10-48WD12 is a compact dual output DC/DC converter providing 10 watts of power with an output of ±12V dc at 420 mA. It is designed for PCB mounting with a DIP package and features a wide input voltage range from 18V to 75V dc with a 4:1 input ratio, making it suitable for diverse industrial and telecommunications applications.
This converter offers a high isolation voltage of 1600 Vdc, low ripple and noise of 75 mV, and a robust operating temperature range from -40°C to 105°C. With a mean time between failure (MTBF) of nearly 2 million hours, it ensures durable and reliable operation in demanding environments.
Its compact dimensions of 2 inches in length, 1 inch in width, and 10.2 mm in depth allow for efficient PCB layout without compromising performance. The device’s efficiency rating of 0.78% supports power-saving needs. The 6-pin DIP package simplifies installation and integration into electrical and electronic equipment.
This DC/DC converter series is particularly ideal for use in telecommunications, industrial controls, mobile telecom, and test equipment, where stable dual voltage outputs and wide input voltage tolerance are critical.
Dual output voltage ±12V dc with 420 mA current. Wide input voltage range 18 to 75V dc. High isolation voltage of 1600 Vdc. Low ripple and noise at 75 mV. Robust operating temperature range from -40°C to 105°C. Compact PCB mount DIP package with 6 pins.
High reliability with an MTBF of 1,976,000 hours. Dimensions: 2in (L) x 1in (W) x 10.2mm (D). Suitable for telecommunications, industrial and test equipment applications. Efficiency of 0.78% for energy saving.
This product belongs to TDK-Lambda’s PXD series of DC/DC converters. Browse the Electronics & Electricals category at EnvMart for comprehensive options in DC/DC Converters and related power supplies.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a dual output voltage of ±12V dc with an output current of 420mA.
The maximum input voltage for this converter is 75V dc.
The efficiency of this converter is rated at 0.78%.
The dimensions of this model are 2 inches in length, 1 inch in width, and 10.2 mm in depth.
This unit operates within a temperature range of -40°C to 105°C.
The isolation voltage of this model is 1600V dc.
The MTBF for this converter is approximately 1,976,000 hours.
This converter has two outputs.
The ripple and noise for this model is specified at 75mV.
This unit is designed for PCB mounting with a DIP package and has 6 pins.
The input voltage range for this model is from 18V to 75V dc.
This converter is suitable for telecommunications, industrial controls, mobile telecom, and test equipment applications.
