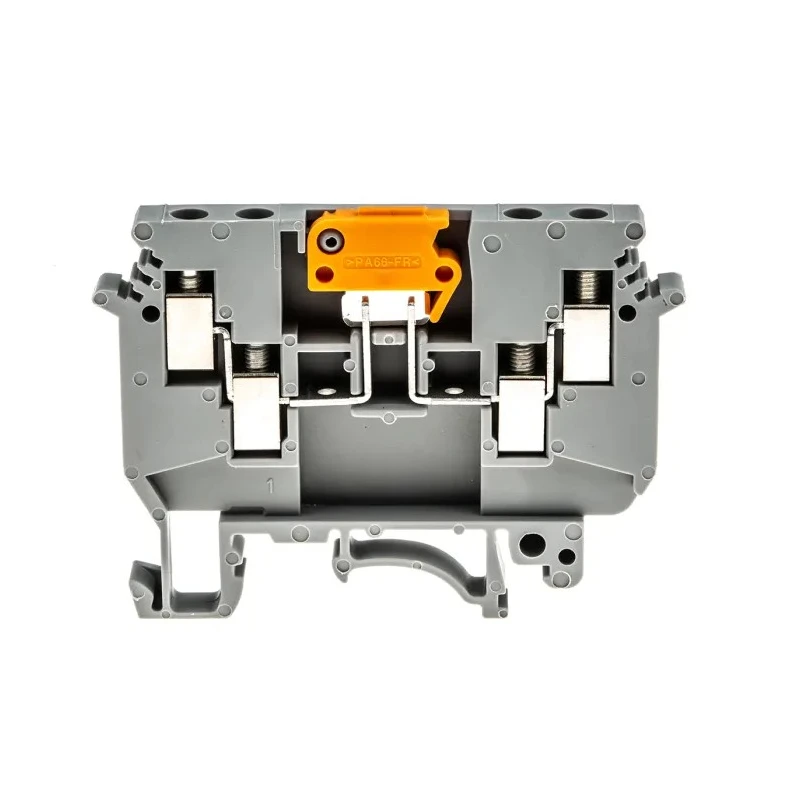

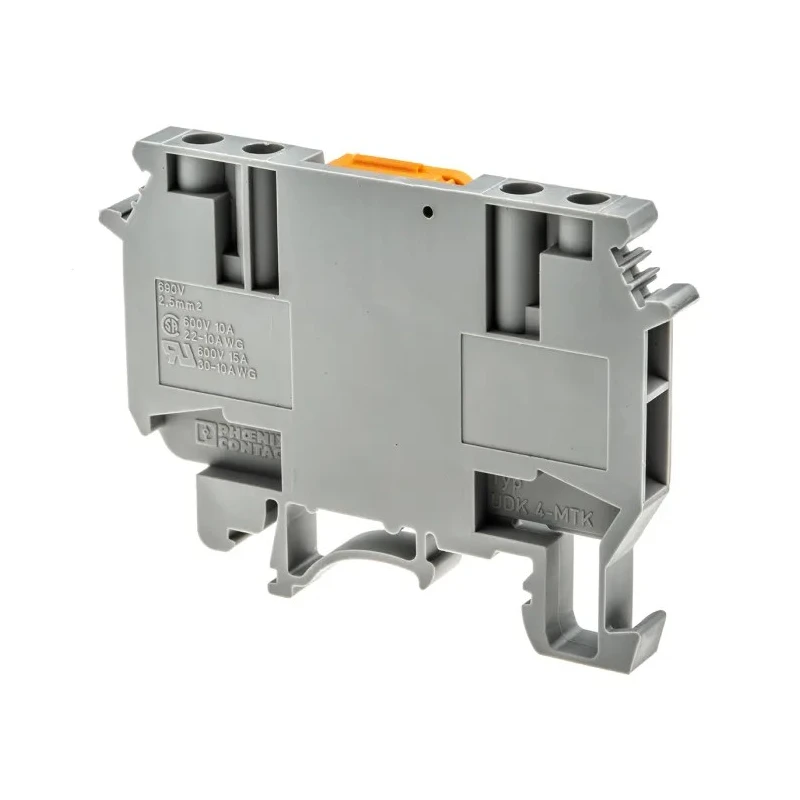

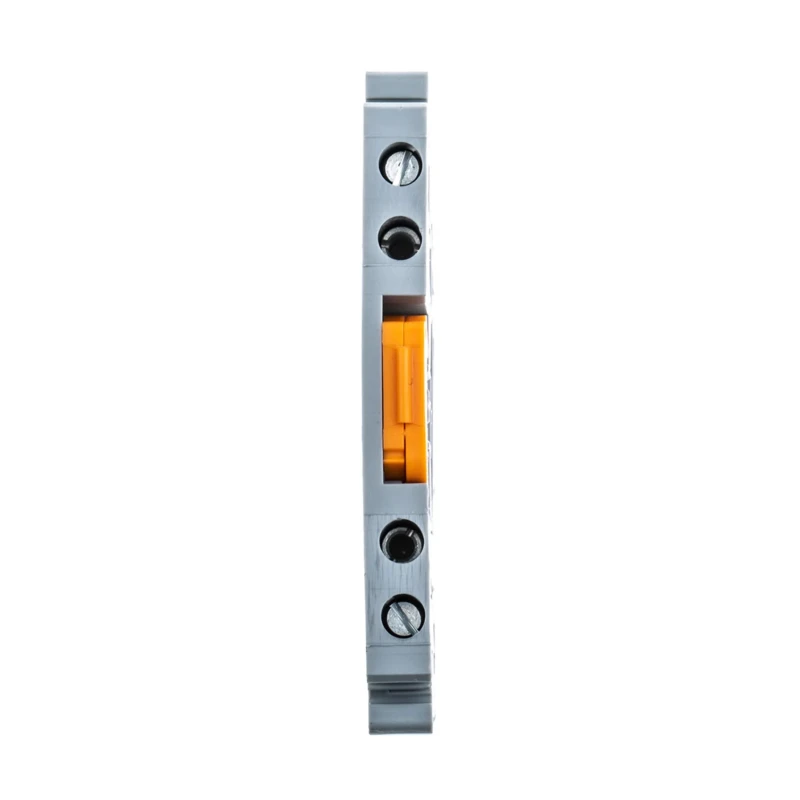

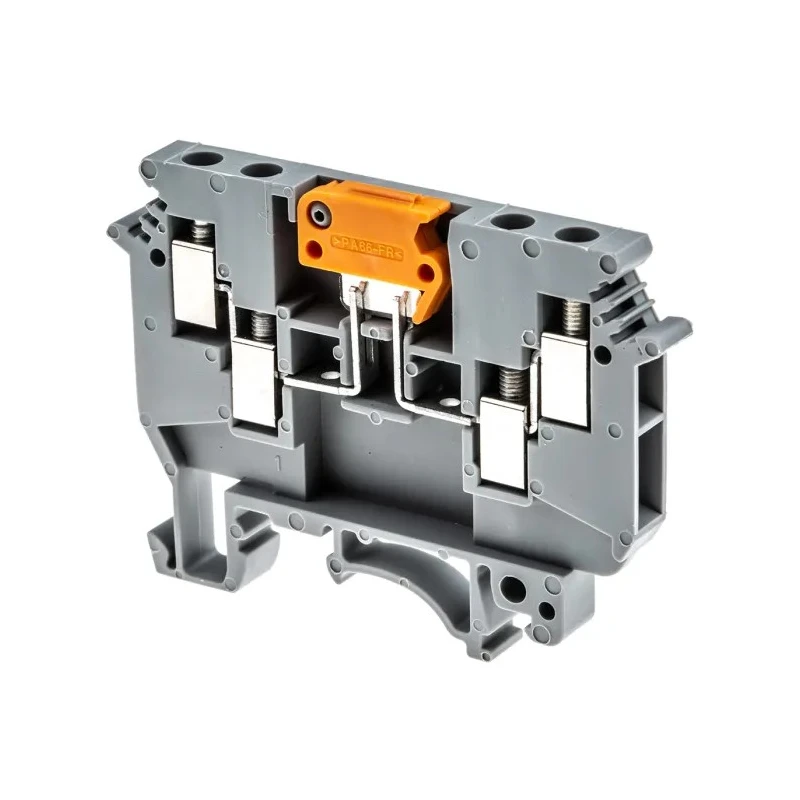

Phoenix Contact UDK 4-MTK-P/P Series Knife Disconnect Terminal Block Grey, 4mm², 1-Level, Screw Termination 2775210

Phoenix Contact 2775210 UDK 4-MTK-P/P Series Knife Disconnect Terminal Block is a high-quality electrical component engineered to provide safe and efficient connection of conductors on DIN rails in industrial and commercial applications.

This unit is designed for a 1-level configuration with a cable cross section capacity of 4mm² and supports wire sizes ranging from AWG 24 to AWG 10, facilitating versatile wiring setups. The terminal block operates at a voltage rating of 630V and a current rating of 16A, suitable for power supply distribution and control panels.

Constructed from insulating polyamide in grey color, it ensures electrical isolation and mechanical durability. The screw termination design uses clamps to securely fasten cables preventing accidental loosening and ensuring stable electrical contact.

With a length of 63.5mm and width of 6.2mm, the block is compact, accommodating tight spaces in electrical enclosures. It features a color-coded lever to clearly indicate circuit open or closed status, aiding troubleshooting and maintenance tasks.

The operating temperature range extends from -60°C up to +105°C, confirming its robustness in harsh industrial environments. This product is certified with CSA, cULus Recognized, EAC approvals and complies with IEC 60947-7-1 standards, assuring compliance with international safety and quality requirements.

Phoenix Contact’s UDK double terminals allow potential distribution via two terminal points and bridging options at the terminal center, supporting flexible wiring architectures. This product is widely used in electrical cabinets, telecommunication systems, manufacturing automation, and power supply networks.

Designed for DIN rail mounting for secure and standardized installation. Multi-conductor capability permits up to four conductors per terminal. Screw termination type ensures firm conductor connection and vibration resistance.

Robust polyamide housing provides excellent electrical insulation and fire resistance. Wide temperature tolerance for diverse industrial applications. Certified to major international standards ensuring quality and safety.

Compact footprint ideal for high-density terminal assemblies. Grey color coding aids easy identification and circuit management. Manufactured in Poland under stringent quality controls as a new product. Applicable in electrical, manufacturing, telecommunications, and automation sectors.
