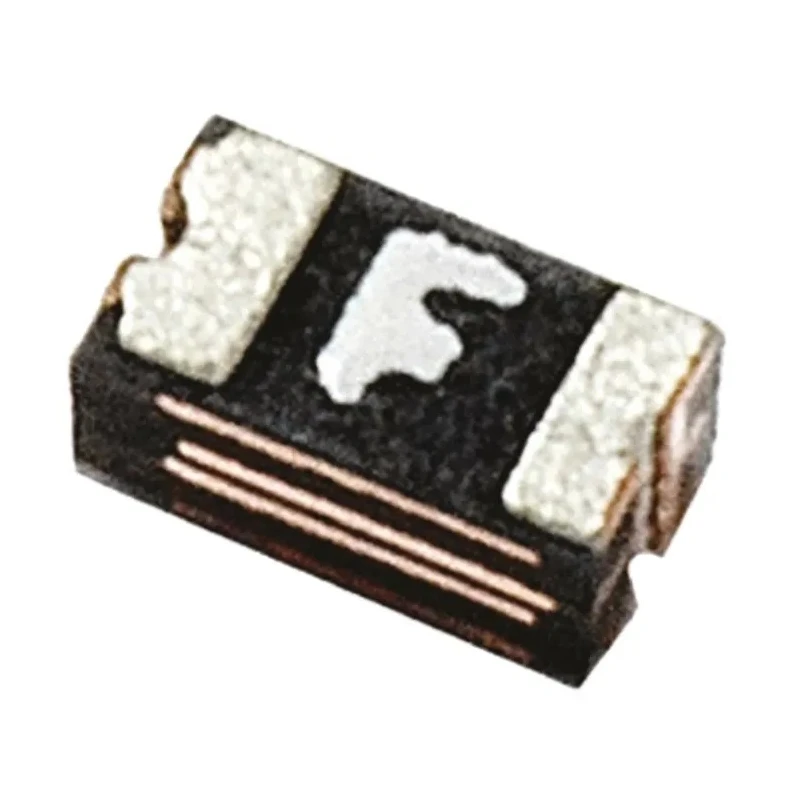

Littelfuse Resettable Fuse 0.1 A, 15 V DC, 0603 Package Reel Mount 0603L010YR

Littelfuse 0603L010YR is a resettable Polymeric Positive Temperature Coefficient (PTC) fuse designed for surface mount applications requiring overcurrent protection with limited space.

This resettable fuse is specified with a 0.1 A hold current and a trip current of 0.3 A, making it ideal for protecting semiconductor devices and circuitry against fault conditions. It operates at a maximum voltage of 15 V DC and can handle a current rating of up to 40 A momentarily. The device features a fast time to trip of 1 second to react quickly to faults.

Dimensionally, the fuse is compact with a length of 1.8 mm, width of 1 mm, and height of 0.75 mm, designed in the 0603 package size suitable for PCB assembly with reel packaging.

The terminals are made from tin plated copper ensuring excellent conductivity and solderability. The fuse operates reliably in temperatures ranging from -40°C to 85°C and has a power dissipation capacity of 0.5 W to safely dissipate heat generated during fault currents.

Its automatic reset capability enables maintenance-free operation for thousands of overcurrent cycles without replacement, making it suitable for applications in power supplies, transformers, automotive electronics, medical devices, instrumentation, control systems, security systems, computers, and telecommunications.

The fuse complies with RoHS environmental standards, confirming restriction of hazardous substances in manufacturing. Provides resettable overcurrent protection for compact electronic circuits. Features automatic reset and maintenance-free operation for thousands of cycles.

Designed with tin plated copper terminals for reliable connection. Compact 0603 package size allows space-saving on PCBs. Operates within temperature range of -40°C to 85°C. Power dissipation rating of 0.5 W ensures safe operation under fault conditions.

Suitable for use in security systems, automotive, medical, and power supply applications. Complies with RoHS standards for environmental safety. Comes supplied on a reel for efficient automated placement.
