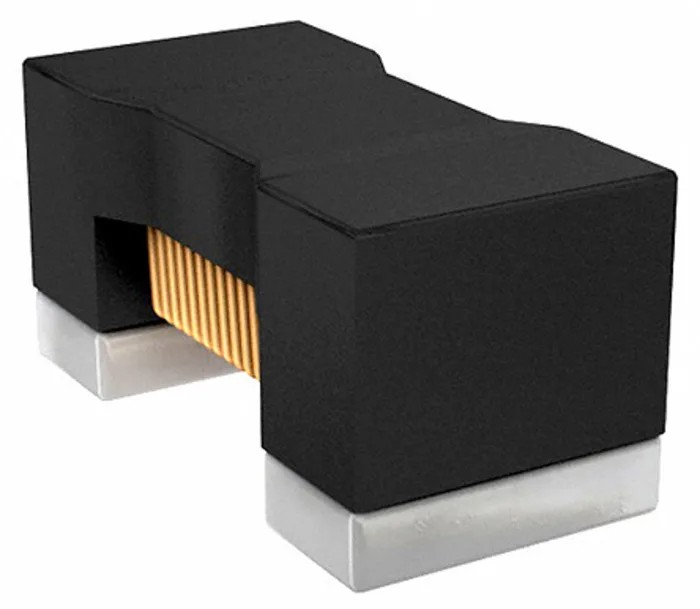

Murata Unshielded Wirewound Surface Mount Inductor 0603 Case Ferrite Core 160nH ±5% 150mA Max DC Current Q:32 LQW18ANR16J00D

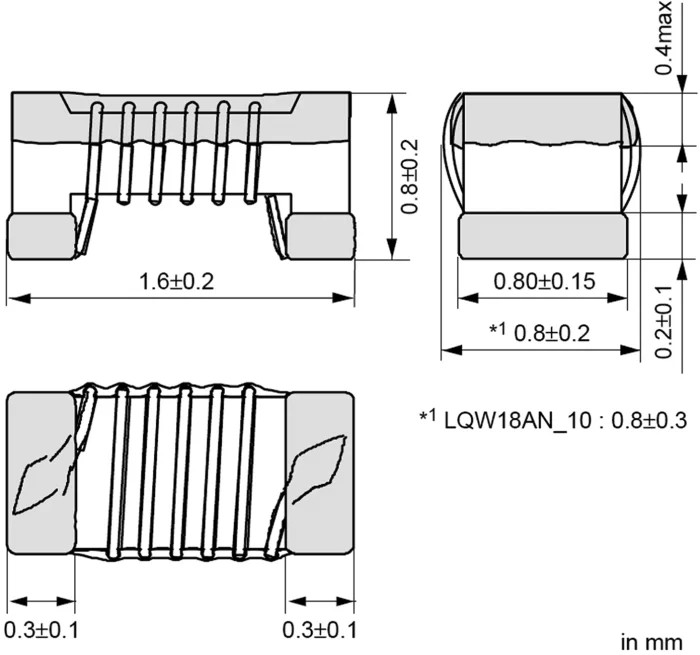

Murata LQW18ANR16J00D wirewound surface mount inductor with ferrite core is a high-quality, unshielded component designed specifically for high frequency VHF and UHF applications. With an inductance of 160 nH ±5%, this 0603 size (1.6mm x 0.8mm x 0.8mm) inductor supports a maximum DC current of 150 mA and features a low maximum DC resistance of 2.1 ohms. Its robust wirewound construction on a ferrite core provides excellent performance in demanding RF circuit environments.

This component operates effectively within a wide temperature range from -55°C to 125°C, making it ideal for use in industrial, telecommunications, and commercial electronics, including Bluetooth, GSM, and WLAN wireless communications equipment. The inductor exhibits a high maximum self-resonant frequency of 1.35 GHz and a minimum quality factor of 32, ensuring minimal losses at high frequencies.

Its solder termination style and molded package design facilitate reliable surface mounting on PCBs. It complies with RoHS standards and is supplied in paper tape packaging suitable for automated assembly processes.

The inductor’s compact 0603 package provides optimized space saving without compromising electrical performance. Ferrite core enhances magnetic properties and performance stability over temperature variations. Unshielded design suitable for applications where shielding is not required or desired.

Offers excellent reliability and durability for long-term use in industrial and laboratory electronic assemblies.

This Murata LQW18ANR16J00D Surface Mount Inductor is a critical component in designing efficient, high frequency electronic circuits and is well-suited for integration in wireless telecommunication modules and consumer electronic devices.
