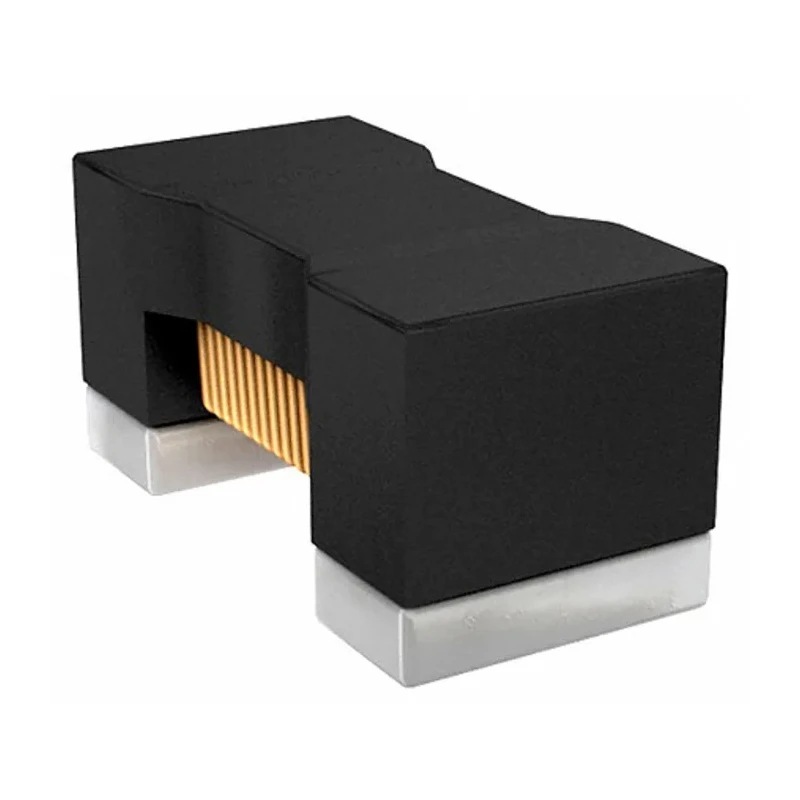

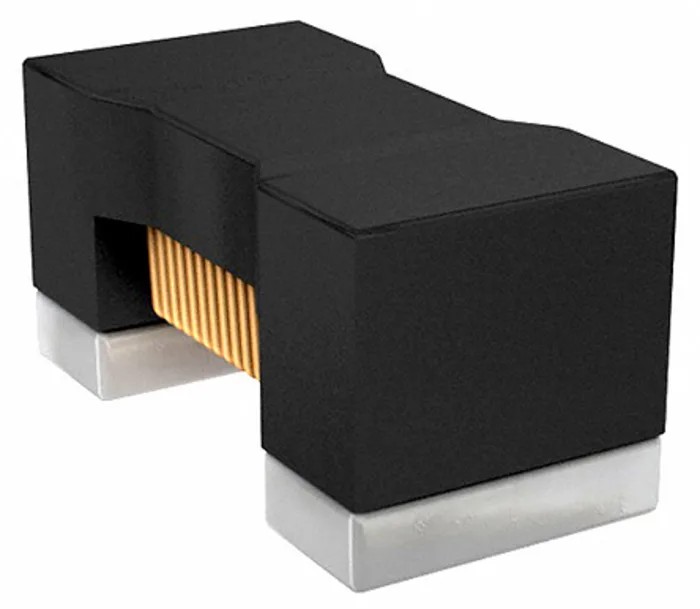

Murata Wirewound Surface Mount Inductor 0603 Package 8.7 nH ±0.5 nH 650mA 6GHz Q:35 LQW18AN8N7D00D

Murata LQW18AN8N7D00D wirewound surface mount inductor in a compact 0603 package offers an inductance of 8.7 nH ±0.5 nH with a maximum DC current rating of 650 mA. This component features a ferrite core and a wirewound construction, which provides stable inductance and high quality factor, suitable for high-frequency circuits.

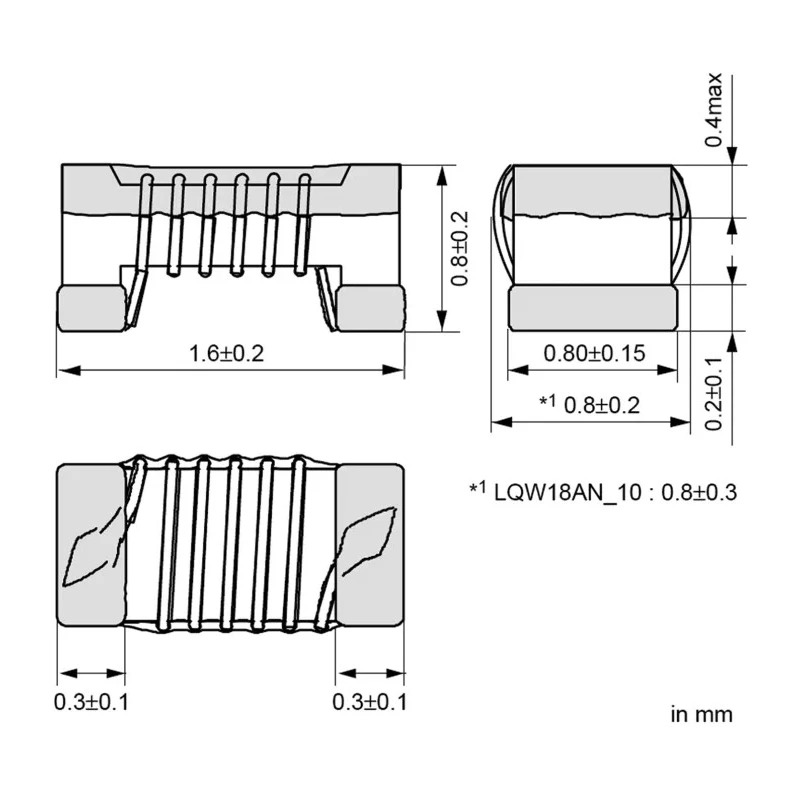

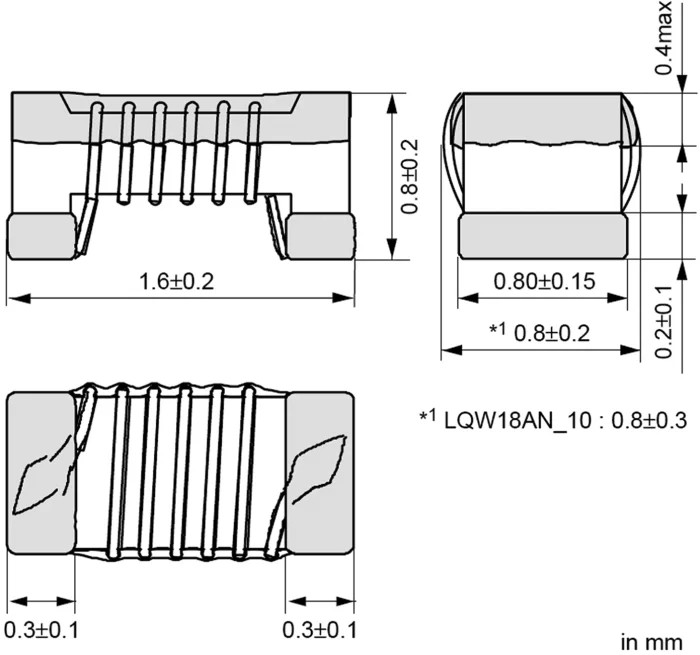

The inductor measures 1.6 mm in length with a height and depth of 0.8 mm each, making it ideal for dense surface mount PCB layouts. Its high resonance frequency of up to 6 GHz enables use in VHF and UHF wireless telecommunication applications such as Bluetooth, GSM, and WLAN equipment.

This product is RoHS compliant and includes solder termination style for straightforward PCB mounting. It operates efficiently within a temperature range of -55°C to 125°C, ensuring durability and reliability in various industrial and commercial electronic environments.

The inductor is delivered in paper tape packaging, facilitating automated manufacturing processes. With a low maximum DC resistance of 110 milliohms, it ensures reduced energy loss and better performance in RF circuits.

Compact 0603 size supports high-density circuit design. High resonance frequency for advanced wireless applications. Stable inductance with ±0.5 nH tolerance. Ferrite core and wirewound construction guarantee quality and performance.

RoHS compliant material and solder termination type. Operational temperature range from -55°C to 125°C. Packaging designed for automated PCB assembly.

This Murata LQW series inductor is an excellent choice for engineers and manufacturers designing high-frequency wireless communication devices. For more electronic components and Surface Mount Inductors, explore the categories on EnvMart.
