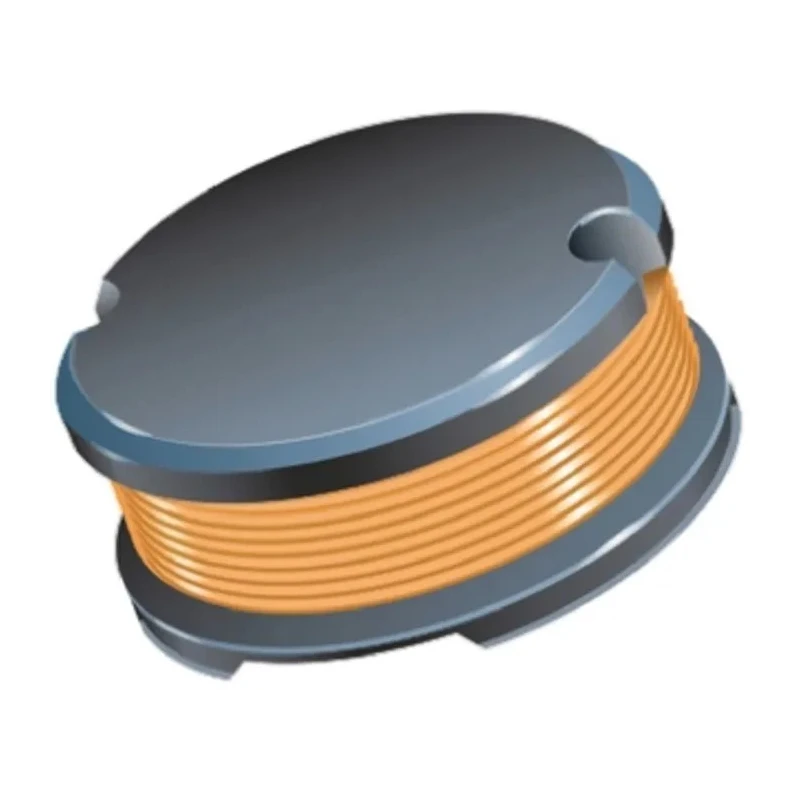

Bourns Wirewound Surface Mount Inductor 068 μH ±10% 840 mA DC, Ferrite DR Core, 0604 Package SDR0604

Bourns SDR0604 is a wirewound surface mount inductor featuring a ferrite DR core, designed for high reliability in compact electronic assemblies. It offers a nominal inductance of 68 μH with ±10% tolerance, combining stylish compactness in a 0604 package measuring 5.8 mm in diameter and 4.8 mm in height.

This inductor supports a maximum DC current of 840 mA and exhibits a low maximum DC resistance of 520 mΩ, minimizing conduction losses for improved efficiency in power supply and DC/DC converter applications. Its unshielded wirewound construction and quality ferrite DR core enhance magnetic performance and frequency response, delivering a self-resonant frequency up to 10 MHz and a quality factor (Q) of 22.

Designed to perform reliably across a temperature range from -40°C to 125°C, the SDR0604 series is RoHS compliant, making it suitable for automotive, industrial, and consumer electronics where environmental standards and compact footprint are critical.

Packaging on a reel advances manufacturing efficiency, enabling precise and automated pick-and-place for surface mount technology (SMT) production lines. Its surface mount termination style simplifies PCB assembly and contributes to a reduced overall device profile.

Compact 0604 package with 5.8 mm diameter and 4.8 mm height. Ferrite DR core material for enhanced inductance stability. Maximum DC current rating of 840 mA suitable for power circuits. Low maximum DC resistance of 520 mΩ reduces power loss.

Operating temperature from -40°C to 125°C for robust applications. High-frequency performance with maximum self-resonant frequency of 10 MHz. Quality factor of 22 ensures efficient magnetic energy storage. Unshielded wirewound construction for reliable electrical characteristics.

RoHS compliance ensures environmental and safety standards adherence. Surface mount termination style facilitates automated PCB assembly. Packaged on reel to support mass production usages.

This Bourns SDR0604 inductor is well-suited for integration in electronic assemblies such as input/output filtering on DC/DC converters, power supply modules, and other compact industrial electronics requiring efficient, reliable magnetic components. Its engineering optimizes size while maintaining rigorous electrical and environmental standards.
