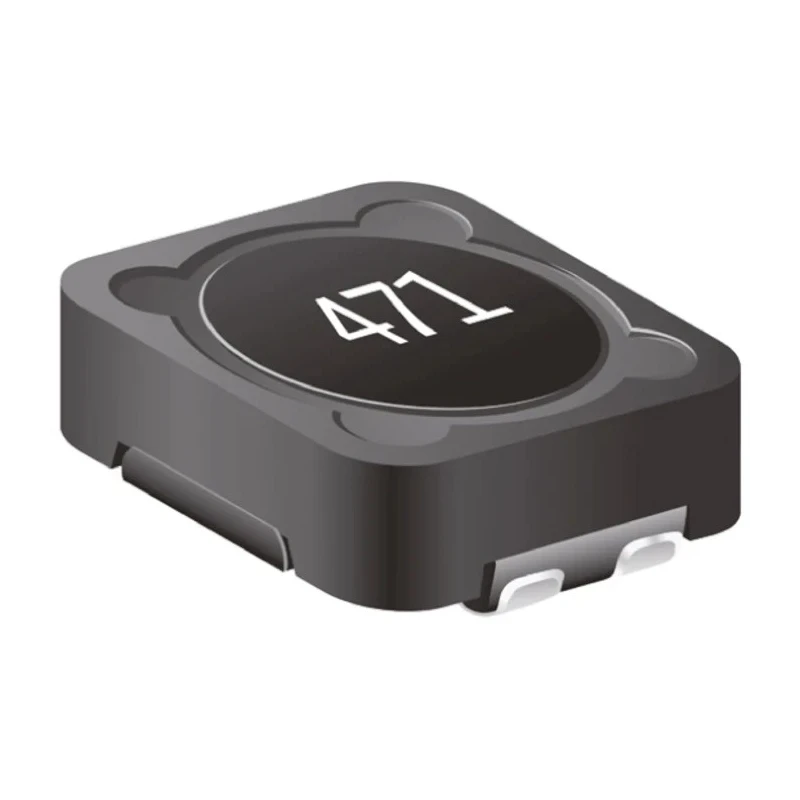

Bourns Shielded Wirewound Surface Mount Inductor with Ferrite Core 1 mH Dual ±20% 260 mA Idc 0703 Package SRF0703
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 3.4mm |
| Length | 7.6mm |
| Model | SRF0703 |
| Depth | 7.6mm |
| Packaging | Reel |
| Series | SRF0703 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 1mH |
| Standards/Approvals | RoHS |
| Package/Case | 0703 |
| Maximum DC Current | 260mA |
| Maximum DC Resistance | 24.42Ω |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Dual |
| Applications include | Sepic topology and Power supplies in portable and fixed equipment |
| Multiple applications | Parallel, series, dual inductor and transformer |
Key Features
- The inductor is magnetically shielded to reduce interference and radiation.
- It is constructed with dual windings suitable for parallel, series, and transformer applications.
- RoHS compliant with a maximum operating temperature of 125°C.
- Compact surface mount termination style with dimensions 7.6 mm length, 3.4 mm height, and 7.6 mm depth.
- Ideal for SEPIC topology and power supplies in portable and fixed electronic equipment.
- Formed on a ferrite core and moulded for durability and thermal stability.
- Has a maximum DC resistance of 24.42 Ω ensuring efficient performance.
Product Description
Bourns SRF0703 shielded wirewound surface mount inductor combines a ferrite core and dual windings to provide reliable inductance of 1 mH with ±20% tolerance. Its 0703 package size and surface mount termination make it compatible with compact PCB designs.
This magnetically shielded inductor limits electromagnetic interference and radiation, making it highly suitable for sensitive electronic circuits that require minimal noise. It can be used in parallel, series, or as a dual inductor or transformer in various circuits.
With a maximum DC current rating of 260 mA and a maximum operating temperature of 125°C, this inductor meets rigorous operational standards and is RoHS compliant. Its 24.42 Ω maximum DC resistance ensures stable performance with minimal losses.
The dimensions of 7.6 mm length, 3.4 mm height, and 7.6 mm depth provide compactness for high-density PCB mounting. It is molded for structural integrity and thermal resistance.
Common applications include SEPIC topology converters and power supplies used in both portable and fixed electronic devices where compact size, reliability, and low interference are crucial.
Designed for industrial, electronics manufacturing, telecommunications, and commercial electronic assembly environments, this inductor supports demanding electrical performance requirements.
The inductor is magnetically shielded to reduce interference and radiation. It is constructed with dual windings suitable for parallel, series, and transformer applications. RoHS compliant with a maximum operating temperature of 125°C.
Compact surface mount termination style with dimensions 7.6 mm length, 3.4 mm height, and 7.6 mm depth. Ideal for SEPIC topology and power supplies in portable and fixed electronic equipment. Formed on a ferrite core and moulded for durability and thermal stability.
Has a maximum DC resistance of 24.42 Ω ensuring efficient performance. Explore a wide range of Surface Mount Inductors and related electronic components on EnvMart for your specialized industrial and commercial electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Bourns SRF0703 has an inductance value of 1 mH with a tolerance of ±20%.
This inductor has a maximum DC current rating of 260 mA.
The dimensions of this model are 7.6 mm in length, 3.4 mm in height, and 7.6 mm in depth.
The maximum operating temperature for the SRF0703 is 125°C.
It is constructed with a ferrite core, which contributes to its performance and shielding capabilities.
This model features a surface mount termination style, suitable for compact PCB designs.
It is ideal for SEPIC topology converters and power supplies in both portable and fixed electronic equipment.
The maximum DC resistance is 24.42 Ω, ensuring efficient performance.
Yes, the SRF0703 is RoHS compliant, meeting environmental standards for electronic components.
The minimum operating temperature for this inductor is -40°C.
This inductor features a dual winding construction, making it suitable for various applications including parallel and series configurations.
The SRF0703 is packaged in a reel, which is common for surface mount components.
