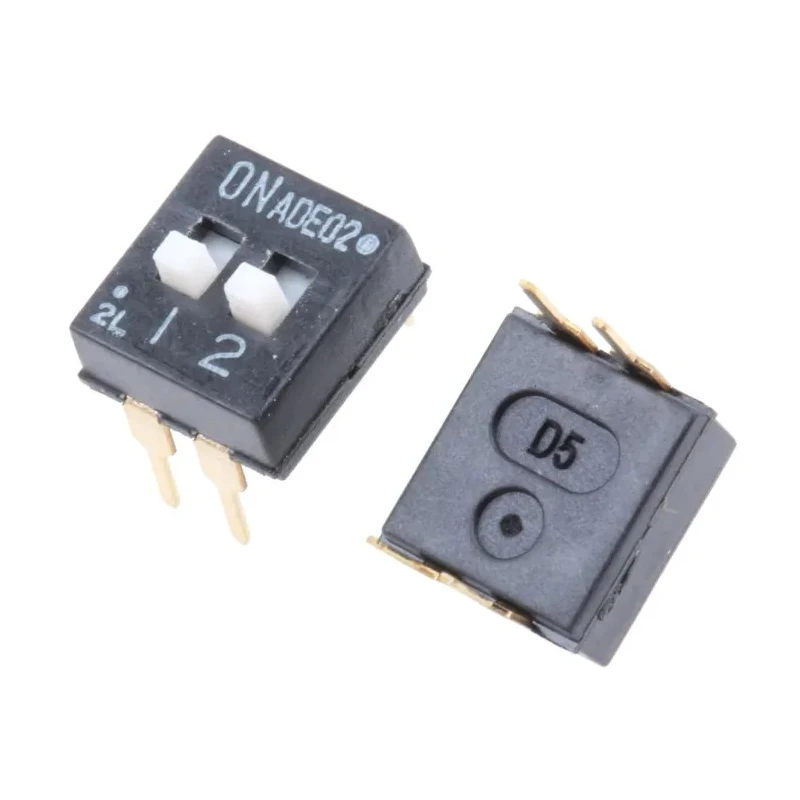

TE Connectivity Extended Slide Rotary Coded DIP Switch ADE02A04
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | ADE02A04 |
| Actuator Type | Extended Slide |
| Contact Resistance | 50mΩ |
Key Features
- The switch features an extended slide actuator for easy operation.
- Gold flash plated contacts ensure excellent conductivity and durability.
- Black PPS housing provides robust insulation and protection.
- High pressure contact system enables reliable connection and long life.
- Suitable for through hole mounting with a 7.5 x 3.5 mm size and 2.54 mm centerline pitch.
- Contact resistance is a low 50 milliohms ensuring minimal signal loss.
- Designed to withstand vapour phase reflow and wave soldering processes.
- High pressure wiping contacts allow aqueous or solvent cleaning without tape seal.
Product Description
TE Connectivity ADE02A04 Extended Slide Rotary Coded DIP Switch is a precision electrical switch designed for industrial and electronic applications requiring compact, reliable, and robust switching solutions. This switch is part of the ADE series which features extended slide actuators for easy manual operation and greater user convenience.
The DIP switch measures 7.5 x 3.5 mm with a 2.54 mm centerline, making it suitable for through hole mounting on printed circuit boards. It features gold flash plated contacts that provide excellent conductivity and resistance to corrosion, ensuring consistent performance over extended periods under demanding conditions.
The housing is made of black PPS (polyphenylene sulfide), a highly durable, heat-resistant plastic material, ideal for industrial environments. The ADE series uses a high pressure contact system which enhances electrical connectivity and mechanical stability. The switch has a contact resistance of 50 milliohms, providing low resistance paths and minimizing power loss.
The switch's design allows it to withstand typical manufacturing processes including vapor phase reflow and wave soldering. Additionally, the high pressure wiping contact technology enables cleaning with aqueous or solvent solutions without the need for a tape seal, contributing to ease of maintenance.
The switch features an extended slide actuator for easy operation. Gold flash plated contacts ensure excellent conductivity and durability. Black PPS housing provides robust insulation and protection. High pressure contact system enables reliable connection and long life.
Suitable for through hole mounting with a 7.5 x 3.5 mm size and 2.54 mm centerline pitch. Contact resistance is a low 50 milliohms ensuring minimal signal loss. Designed to withstand vapour phase reflow and wave soldering processes.
High pressure wiping contacts allow aqueous or solvent cleaning without tape seal.
This Rotary Coded DIP Switch is widely used in electronic control systems, measurement equipment, communication devices, and industrial automation products. Its compact size and durable construction make it ideal for precise setting and selection functions in various industrial, laboratory, and commercial applications.
Explore more electronic switching components in EnvMart's extensive catalog to find compatible and complementary products for your project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact resistance of this switch is 50 milliohms, ensuring minimal signal loss during operation.
This model features an extended slide actuator, which allows for easy manual operation.
The switch measures 7.5 x 3.5 mm and is suitable for through hole mounting with a 2.54 mm centerline pitch.
The housing is made from black PPS (polyphenylene sulfide), providing robust insulation and protection.
Yes, it is designed to withstand vapor phase reflow and wave soldering processes.
This switch is widely used in electronic control systems, measurement equipment, communication devices, and industrial automation products.
Yes, the high pressure wiping contact technology enables cleaning with aqueous or solvent solutions without the need for a tape seal.
Key features include an extended slide actuator, gold flash plated contacts for excellent conductivity, and a high pressure contact system for reliable connections.
The country of origin for this switch is India.
The gold flash plating on the contacts ensures excellent conductivity and resistance to corrosion, enhancing performance over time.
The high pressure contact system enhances electrical connectivity and mechanical stability, contributing to the switch's long life.
The switch's design allows for easy maintenance, particularly due to its ability to be cleaned with aqueous or solvent solutions without tape seal.
