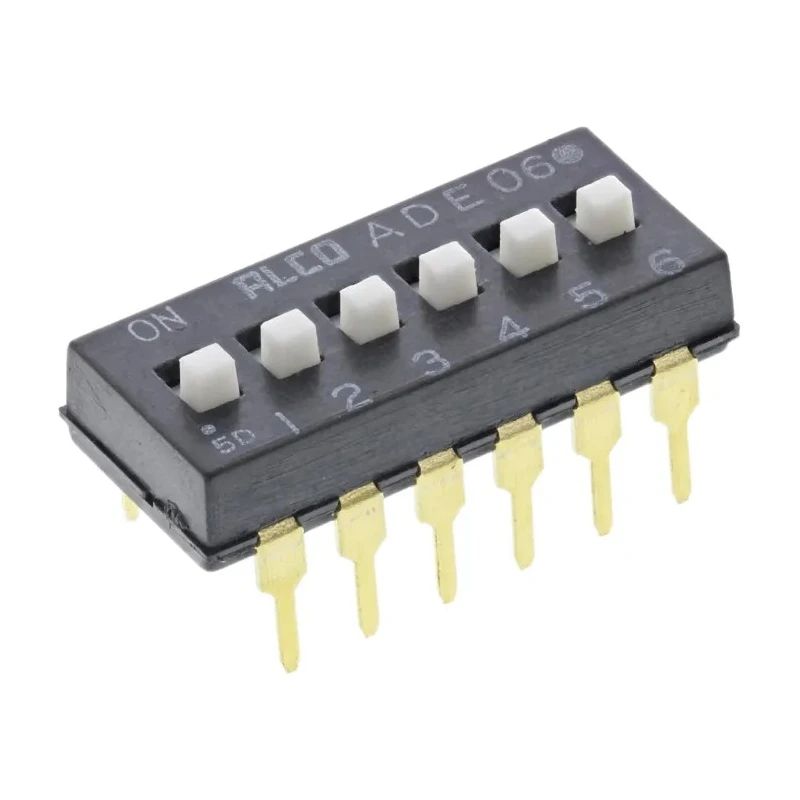

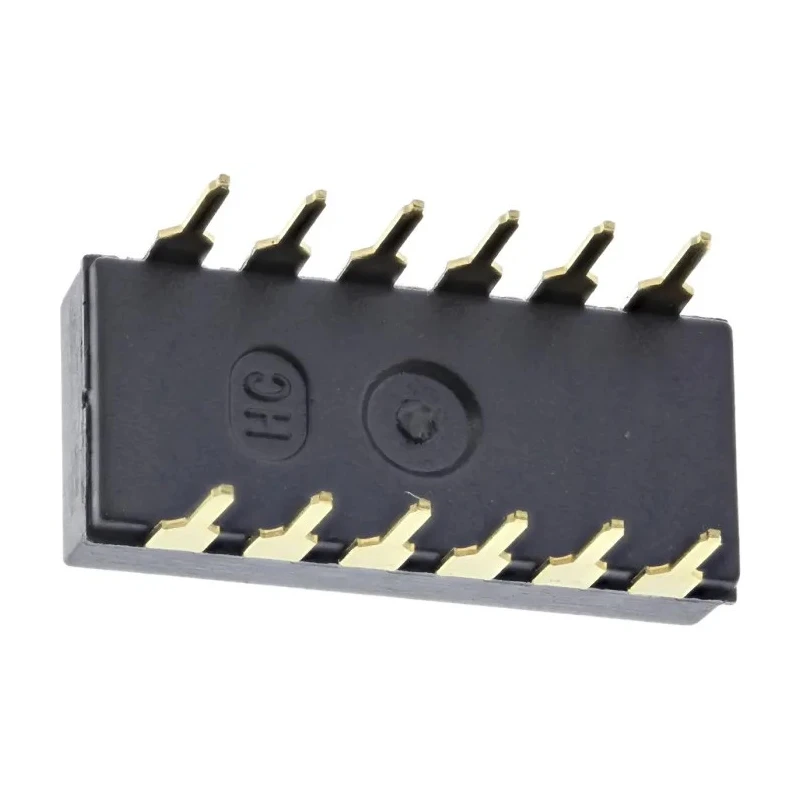

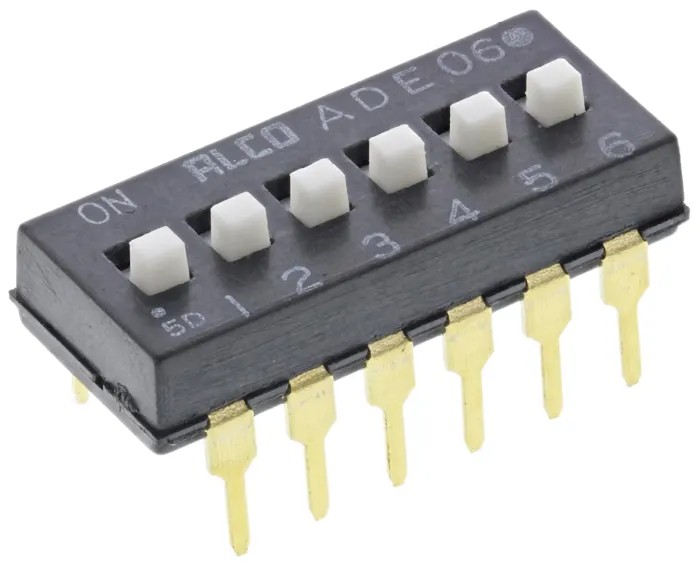

TE Connectivity Rotary Coded DIP Switch Through Hole Mount Extended Slide Actuator ADE06A04
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | ADE06A04 |
| Mount Type | Through Hole |
| Actuator Type | Extended Slide |
| Contact Resistance | 50mΩ |
Key Features
- This DIP switch offers gold flash plated contacts for enhanced conductivity and corrosion resistance.
- It has a 7.5 x 3.5 mm footprint with a 2.54 mm contact centerline suitable for through hole PCB mounting.
- The switch includes a high pressure wiping contact system ensuring low contact resistance of 50 mΩ.
- Extended slide actuator design provides easy and accurate switching operation.
- Durable black PPS housings provide stable mechanical and thermal properties.
- Capable of withstanding vapor phase reflow and wave soldering during assembly processes.
- Compatible with solvent and aqueous cleaning methods without tape sealing due to contact design.
- The product is ideal for use in electrical and automation applications requiring precise rotary-coded switching.
Product Description
TE Connectivity model ADE06A04 is a rotary coded DIP switch designed for through hole mounting applications in electrical and automation systems. It features an extended slide actuator that provides easy handling and precise switching in a compact 7.5 x 3.5 mm black PPS housing. The contacts employ gold flash plating to ensure high reliability and corrosion resistance during operation.
This switch uses a high pressure wiping contact system that maintains low contact resistance of approximately 50 milliohms, enhancing signal integrity and reducing power loss. The durable contacts allow the switch to endure vapor phase reflow and wave soldering processes without degradation, making it suitable for modern surface mount assembly lines.
The ADE06A04 is designed with a 2.54 mm pitch centerline for easy integration onto printed circuit boards using through hole mounting methods. Its extended slide actuator allows for enhanced tactile feedback and operator handling, making it ideal for rotary coded DIP switch applications requiring accurate input selection and position encoding.
In addition, the contact design supports both aqueous and solvent cleaning without the necessity for tape sealing, which improves manufacturing throughput and process flexibility.
This product is widely applicable across industrial automation, control panels, instrumentation, and general electronics where robust and reliable rotary coding switches are needed.
Gold flash plated contacts improve corrosion resistance and conductivity. Extended slide actuators enable easy and precise switching. High pressure wiping contact system maintains low resistance (50 mΩ). Black PPS housing provides mechanical durability and thermal stability.
Through hole mount type with 2.54 mm centerline pitch. Compatible with vapor phase reflow and wave soldering processes. Supports aqueous and solvent cleaning without tape seal. Ideal for electrical, automation, and industrial switch applications.
This TE Connectivity Rotary Coded DIP Switch enhances production efficiency and component reliability in diverse industrial electronic systems. Explore EnvMart's extensive selection of electrical switches and automation components for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact resistance of this model is approximately 50 milliohms, which helps maintain signal integrity and reduces power loss.
This switch has a compact footprint of 7.5 x 3.5 mm, making it suitable for space-constrained applications.
It supports through hole mounting, which is ideal for integration onto printed circuit boards.
The ADE06A04 features an extended slide actuator, which allows for easy handling and precise switching operations.
Yes, it is capable of withstanding vapor phase reflow and wave soldering processes without degradation.
The housing is made of durable black PPS, providing stable mechanical and thermal properties.
Yes, it is compatible with both aqueous and solvent cleaning methods without the need for tape sealing due to its contact design.
This rotary coded DIP switch is ideal for use in electrical and automation applications, including control panels and instrumentation.
The contact centerline pitch is 2.54 mm, facilitating easy integration into various PCB designs.
The ADE06A04 is manufactured in India.
Gold flash plated contacts enhance conductivity and corrosion resistance, improving the overall reliability of the switch during operation.
The high pressure wiping contact system ensures low contact resistance, enhancing signal integrity and reducing power loss.
