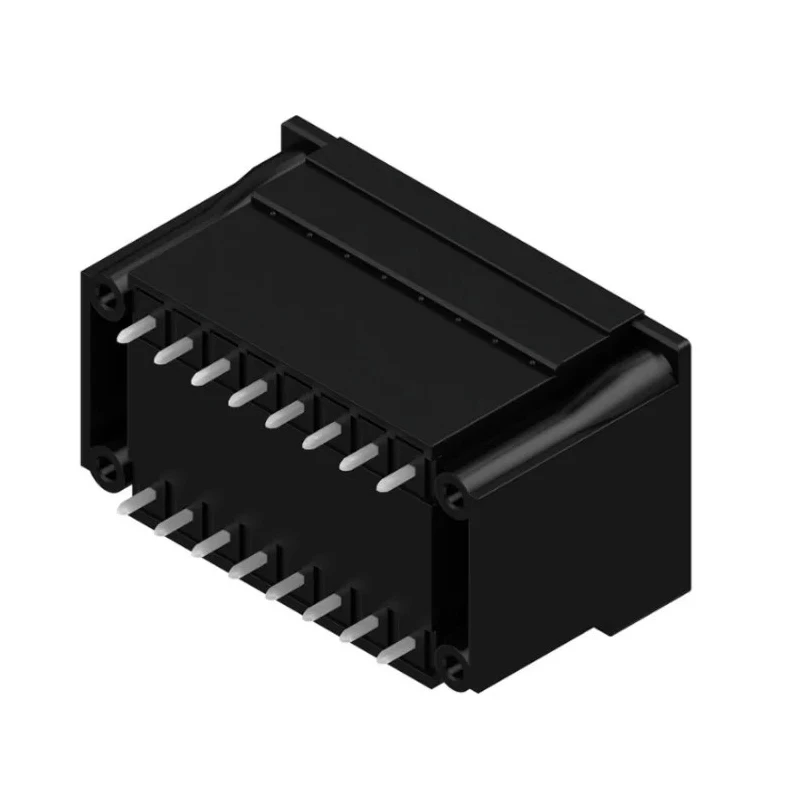

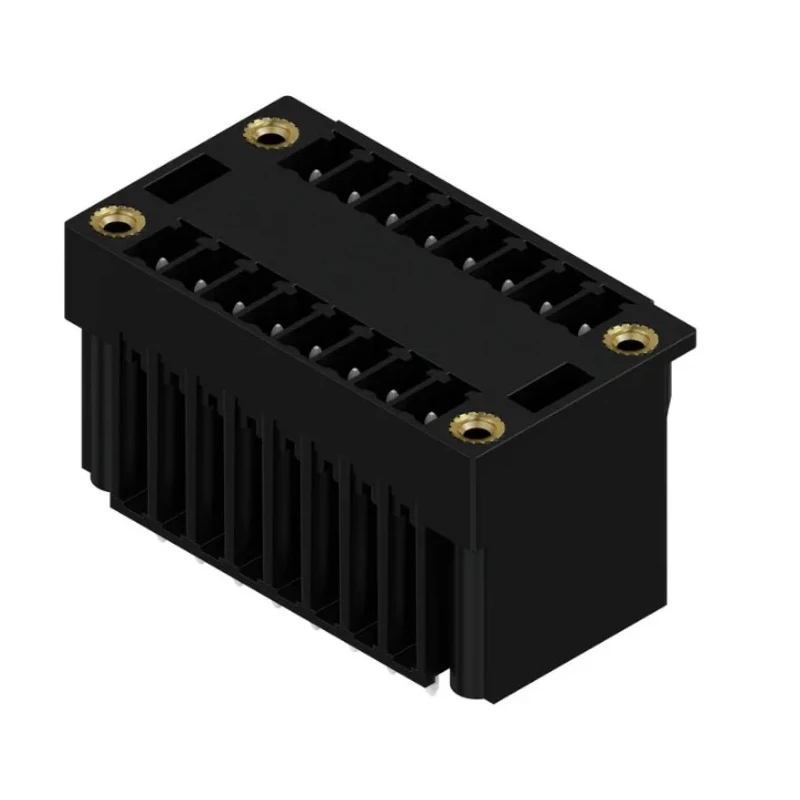

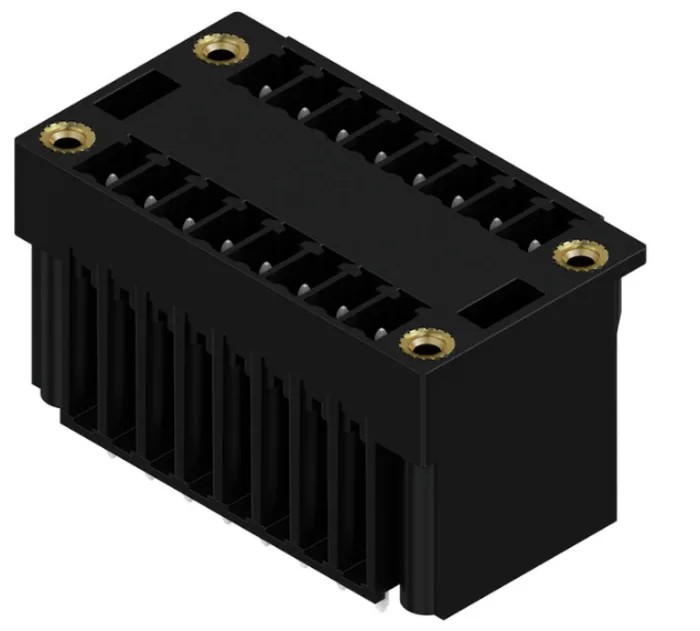

Weidmüller Pluggable Terminal Block SC-D Series 16-Contact 3.81 mm Pitch 2 Row Male Connector 320V 17.5A 1030850000
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 320V |
| Brand | Weidmüller |
| Colour | Black |
| Orientation | Straight |
| Current | 17.5A |
| Length | 25.1mm |
| Depth | 22.7mm |
| Width | 40.87mm |
| Housing Material | Copper Alloy, Polyamide Fibreglass |
| Series | SC-D |
| Number of Rows | 2 |
| Pitch | 3.81mm |
| Standards/Approvals | IEC 60664-1, IEC 61984 |
| Number of Contacts | 16 |
| Connector Gender | Male |
| Wire Connection Method | Solder |
Key Features
- Constructed with copper alloy contacts and polyamide fibreglass housing.
- Supports voltage rating of 320V and current rating of 17.5A.
- Straight body orientation with through-hole solder wire connection.
- Two-tier, 16-contact, 2-row design optimizes space utilization.
- Complies with IEC 60664-1 and IEC 61984 safety standards.
- Ideal for automation systems and electrical control panels.
- Black colour with excellent labelling space for coding.
Product Description
Weidmüller 1030850000 SC-D Series Pluggable Terminal Block is engineered for seamless connectivity in demanding electrical systems. Featuring a 16-contact configuration with a 3.81 mm pitch across two rows, this terminal block delivers reliable and versatile performance for industrial applications.
This male connector is constructed with copper alloy contacts to provide excellent electrical conductivity, while the housing is made from durable polyamide fibreglass materials that resist environmental stress and maintain stability.
The straight orientation and through-hole solder wire connection method ensure straightforward mounting and firm PCB fixation, facilitating integration into various electronic assemblies. The two-tier design optimizes space by allowing connections at the same level, promoting rapid assembly and reducing workflow interruptions during installation.
Rated for 320V and 17.5A, it meets IEC 60664-1 and IEC 61984 standards, offering certified reliability and safety compliance for industrial and automation environments. Its black colour and excellent labelling space simplify identification and coding in complex control panels.
This terminal block is widely used in automation systems, electrical control installations, manufacturing equipment, and electronic devices demanding consistent solder connections and adaptable PCB layouts.
Constructed with copper alloy contacts and polyamide fibreglass housing. Rated for 320V voltage and 17.5A current for industrial usage. Straight body orientation with through-hole solder wire connection. Two-tier, 16-contact, 2-row design for efficient space utilization.
Complies with IEC 60664-1 and IEC 61984 safety standards. Suitable for automation, electrical control panels, and PCB applications. Black colour with ample labelling for easy identification. Explore more high-quality electrical connectors and terminal blocks at EnvMart for your industrial and automation system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block is rated for a voltage of 320V and a current of 17.5A.
The contacts in this model have a pitch of 3.81 mm.
It features a total of 16 contacts.
This model uses a through-hole solder wire connection method.
It is constructed with copper alloy contacts and a polyamide fibreglass housing.
The dimensions are 25.1 mm in length, 22.7 mm in depth, and 40.87 mm in width.
It complies with IEC 60664-1 and IEC 61984 safety standards.
The terminal block has a straight body orientation.
The terminal block is black in color.
It is suitable for use in automation systems, electrical control panels, and PCB applications.
The two-tier design optimizes space by allowing connections at the same level, promoting rapid assembly and reducing workflow interruptions during installation.
The connector gender of this terminal block is male.
