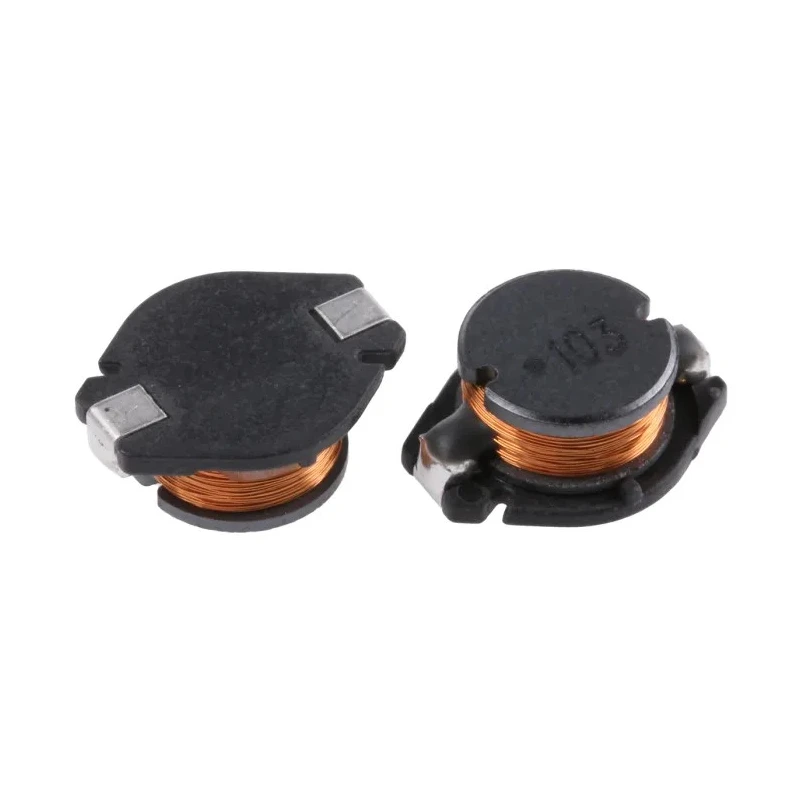

Bourns Unshielded Wirewound Surface Mount Inductor with Ferrite DR Core 10 mH ±10% 100 mA 1 MHz SDR1005
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 5mm |
| Length | 12.7mm |
| Model | SDR1005 |
| Depth | 10mm |
| Packaging | Reel |
| Series | SDR1005 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite DR |
| Inductance | 10mH |
| Standards/Approvals | JEDEC, RoHS |
| Package/Case | 1005 |
| Maximum DC Current | 100mA |
| Maximum DC Resistance | 39Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 1MHz |
| Minimum Quality Factor | 102 |
| Inductor Construction | Wirewound |
Key Features
- This inductor supports a maximum DC current of 100 mA.
- It has a maximum DC resistance of 39 Ω, ensuring efficient current flow.
- The device operates reliably within a temperature range of -40°C to 125°C.
- Its compact 1005 package size and surface mount termination style make it ideal for PCB mounting.
- The inductor exhibits a high quality factor of 102 and a maximum self-resonant frequency of 1 MHz.
- The construction utilizes wirewound technology on a ferrite core for stable inductance.
- Compliant with JEDEC and RoHS standards for quality and environmental safety.
- Packaging on reels facilitates automated assembly processes.
Product Description
Bourns SDR1005 unshielded wirewound Surface Mount Inductor offers precise 10 mH inductance with ±10% tolerance, tailored for electronics applications requiring stable power management components. This component is built on a ferrite DR core, enabling a high quality factor of 102 and a maximum current of 100 mA, ensuring reliable performance in DC/DC converters and power supplies.
The compact 1005 package with dimensions of 12.7 mm length, 5 mm height, and 10 mm depth, along with surface mount termination style, supports easy PCB assembly using reel packaging. With a maximum DC resistance of 39 Ω, the inductor minimizes power loss.
Operating temperatures span from -40°C to 125°C, providing dependable operation across harsh industrial environments. The device meets JEDEC and RoHS standards, demonstrating compliance with regulatory quality and environmental requirements.
This wirewound inductor design ensures robust electrical characteristics including a maximum self-resonant frequency of 1 MHz, making it suitable for filtering and noise suppression in power electronics.
This inductor supports a maximum DC current of 100 mA. It features a maximum DC resistance of 39 Ω for efficient operation. Inductance tolerance is ±10%, ensuring reliable circuit behavior. Operating temperature range of -40°C to 125°C supports industrial usage.
The compact 1005 package enables space-saving PCB design. High quality factor of 102 enhances performance at resonant frequencies. Ferrite DR core construction ensures stable inductance under varying conditions. Compliance with JEDEC and RoHS standards assures product reliability and safety.
This product is ideal for use in industrial, electronic manufacturing, power supply, and laboratory applications requiring compact and reliable inductors. It enables engineers to design optimized power electronics and filtering circuits.
Explore our extensive range of inductors and other electronic components at EnvMart for trusted quality and technical support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Bourns SDR1005 has an inductance value of 10 mH with a tolerance of ±10%.
This inductor supports a maximum DC current of 100 mA.
The maximum DC resistance of this model is 39 Ω, which helps ensure efficient current flow.
It operates reliably within a temperature range of -40°C to 125°C.
The maximum self-resonant frequency of the SDR1005 is 1 MHz.
The dimensions of this model are 12.7 mm in length, 10 mm in depth, and 5 mm in height.
This inductor utilizes a ferrite DR core for stable inductance.
The inductor exhibits a minimum quality factor of 102, enhancing its performance.
This model is compliant with JEDEC and RoHS standards, ensuring quality and environmental safety.
It is packaged on reels, which facilitates automated assembly processes.
The termination style of this inductor is surface mount, suitable for PCB mounting.
This inductor is suitable for applications in industrial, electronic manufacturing, power supply, and laboratory settings.
