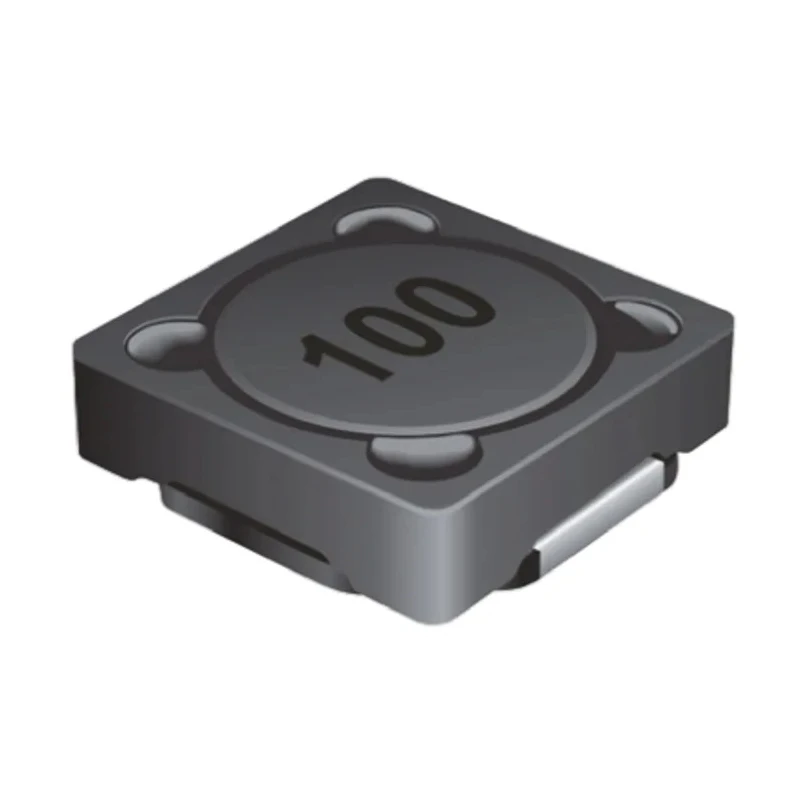

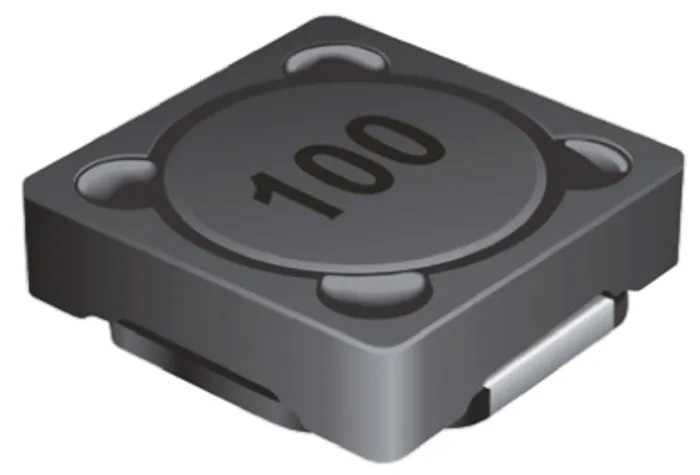

Bourns 1240 Shielded Wirewound Surface Mount Inductor with Ferrite Core 15 μH ±20% 3.5 A Idc Q16 SRR1240
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 4mm |
| Length | 12.5mm |
| Model | SRR1240 |
| Depth | 12.5mm |
| Packaging | Reel |
| Series | SRR1240 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 15μH |
| Standards/Approvals | RoHS |
| Package/Case | 1240 |
| Maximum DC Current | 3.5A |
| Maximum DC Resistance | 47mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 22MHz |
| Minimum Quality Factor | 16 |
| Inductor Construction | Wirewound |
Key Features
- Features a 1240 package size for compact PCB mounting.
- Constructed with a ferrite core to provide magnetic shielding.
- Operates reliably between -40°C and 125°C temperature range.
- Surface mount termination style designed for automated assembly.
- Maximum DC resistance of 47 mΩ ensures efficient current flow.
- Maximum self-resonant frequency of 22 MHz suitable for high-frequency applications.
- Moulded wirewound construction enhances durability and performance.
- RoHS compliant meeting environmental standards.
Product Description
Bourns SRR1240 is a magnetically shielded wirewound surface mount inductor featuring a ferrite core and a 1240 package size. It offers an inductance of 15 μH with a tolerance of ±20% and supports a maximum DC current of 3.5 A. The component is designed with a compact height of 4mm and a depth of 12.5mm, making it an ideal solution for applications requiring a low-profile inductor.
This inductor is suitable for use in high-frequency power supply circuits such as DC/DC converters used in portable communications, camcorders, LCD TVs, and car radios. The ferrite core provides effective magnetic shielding to minimize electromagnetic interference in sensitive electronic devices.
The SRR1240 offers high quality with a minimum quality factor (Q) of 16, and it operates reliably over a temperature range of -40°C to 125°C. Surface mount termination facilitates automated manufacturing processes, enhancing assembly efficiency.
This product is moulded for mechanical robustness and meets RoHS standards, ensuring compliance with environmental regulations. With a maximum DC resistance of 47 milliohms and a maximum self-resonant frequency of 22 MHz, it delivers excellent electrical performance in demanding industrial and commercial electronic applications.
Use Bourns SRR1240 inductors in industrial, communication, consumer electronics, and automotive electronic applications requiring high current rating and efficient power management. This Surface Mount Inductor helps designers achieve compact, high-performance circuit designs.
Features a 1240 package size for compact PCB mounting. Constructed with a ferrite core to provide magnetic shielding. Operates reliably between -40°C and 125°C temperature range. Surface mount termination style designed for automated assembly.
Maximum DC resistance of 47 mΩ ensures efficient current flow. Maximum self-resonant frequency of 22 MHz suitable for high-frequency applications. Moulded wirewound construction enhances durability and performance. RoHS compliant meeting environmental standards.
Discover more inductors and electronic components at EnvMart to support your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SRR1240 inductor has an inductance value of 15 μH with a tolerance of ±20%.
This model supports a maximum DC current of 3.5 A.
The maximum self-resonant frequency of the SRR1240 is 22 MHz, making it suitable for high-frequency applications.
The SRR1240 has a height of 4 mm and a length and depth of 12.5 mm.
It operates reliably within a temperature range of -40°C to 125°C.
The SRR1240 features a surface mount termination style designed for automated assembly.
The maximum DC resistance of the SRR1240 is 47 mΩ, ensuring efficient current flow.
This inductor is constructed with a ferrite core, which provides effective magnetic shielding.
Yes, the SRR1240 is RoHS compliant, meeting environmental standards.
This model is suitable for high-frequency power supply circuits, including DC/DC converters in portable communications and consumer electronics.
The minimum quality factor (Q) of this inductor is 16.
The SRR1240 is packaged in a reel format, facilitating easy handling and assembly.
