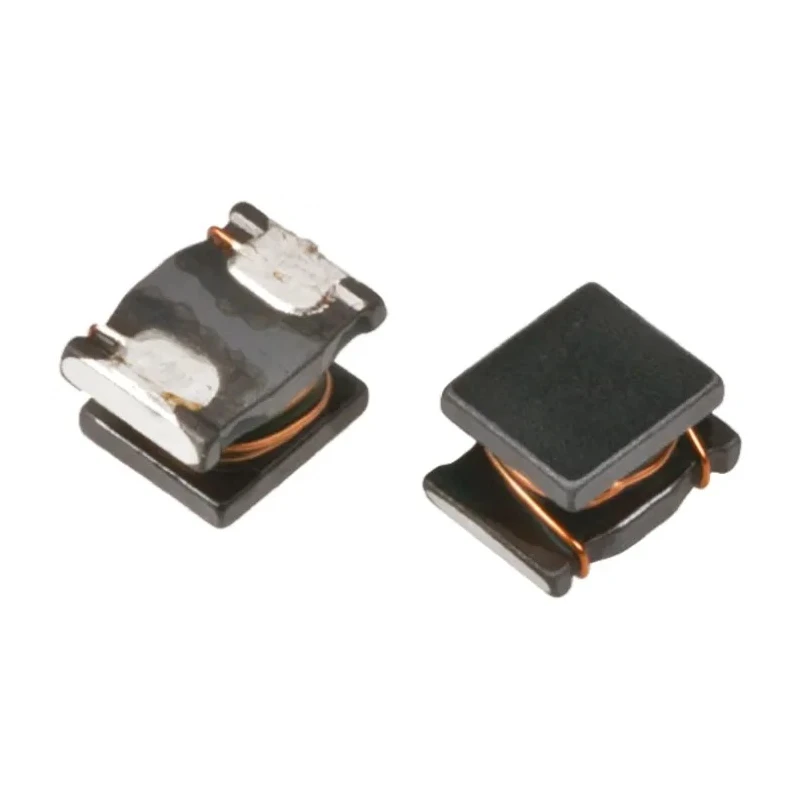

Murata 1812 Wirewound Unshielded Surface Mount Inductor with Ferrite Core 1 mH ±5% 50 mA Idc Q:40 LQH43MN102J03L

Murata LQH43MN102J03L is a precision wirewound unshielded surface mount inductor in an 1812 package with a ferrite core, delivering 1 mH inductance with a ±5% tolerance and supporting a maximum DC current of 50 mA. This inductor is manufactured with high-quality materials to ensure performance in high-frequency electronic circuits.

Its compact form factor of 4.5 mm length, 3.2 mm depth, and 2.6 mm height makes it suitable for dense PCB layouts in electronics manufacturing. The wirewound construction on ferrite core provides stable inductance and low DC resistance of 25 ohms, enhancing efficiency and reducing power losses.

With a minimum quality factor of 40 and a maximum self-resonant frequency of 2 MHz, it supports applications requiring signal integrity and low noise in electronic devices. The component is moulded and RoHS-compliant, making it environmentally friendly and durable for industrial and commercial electronics use.

This inductor is supplied in embossed tape packaging, facilitating ease of automated assembly in manufacturing setups. Typical use cases include power management, signal filtering, and impedance matching in industrial electronics, consumer devices, and automotive electronics (non-automotive grade).

Operating temperature ranges from -40°C to 85°C, ensuring reliable functionality in a variety of environments and applications. Being made in Japan guarantees precise quality control and excellent fabrication standards.

Compact 1812 SMD package for high-density PCB designs. Wirewound construction on ferrite core for precision inductance. 1 mH inductance with ±5% tolerance for consistent performance. Low DC resistance of 25 ohms minimizes power loss.

Max DC current rating of 50 mA suitable for low power circuits. Quality factor of 40 ensures efficient high-frequency operation. RoHS compliant and moulded design for environmental and mechanical reliability. Embossed tape packaging compatible with automated assembly lines.

Operating temperature from -40°C to 85°C supports diverse applications. Manufactured in Japan for guaranteed quality and reliability. Explore the wide range of Murata Surface Mount Inductors and other electronic components available at EnvMart for industrial, commercial, and laboratory applications.
