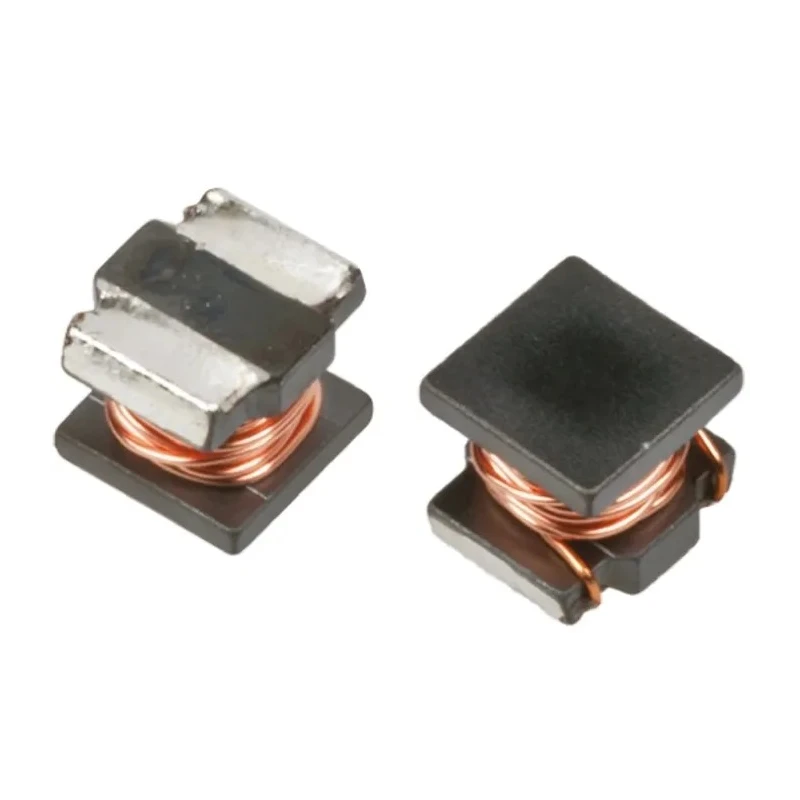

Murata Wirewound Surface Mount Inductor 2220 Case Ferrite Core 10 mH ±20 % 50 mA DC Max LQH55DN103M03L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 4.7mm |
| Length | 5.7mm |
| Model | LQH55DN103M03L |
| Depth | 5mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10mH |
| Standards/Approvals | RoHS |
| Package/Case | 2220 |
| Maximum DC Current | 50mA |
| Maximum DC Resistance | 140Ω |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 500kHz |
| Inductor Construction | Wirewound |
Key Features
- Constructed with a ferrite core to provide reliable magnetic characteristics.
- Comes in the 2220 package/case size suitable for surface mounting.
- Designed with a wirewound construction and solder termination style.
- Maximum DC resistance of 140 ohms ensures efficient current flow.
- Operates reliably between -40°C to 80°C temperature range.
- Maximum self-resonant frequency is 500 kHz enabling stable operation in frequency-sensitive applications.
- Compliant with RoHS standards ensuring environmental safety.
- Packaged in embossed tape for automated assembly processes.
Product Description
Murata LQH55DN103M03L Wirewound Surface Mount Inductor in 2220 case with ferrite core delivers 10 mH inductance ±20 % tolerance for compact electronics requiring precise inductive components.
This inductor is ideal for choke and DC-DC converter applications where low direct current resistance and stable inductance are crucial. Its wirewound construction enhances current capacity and maintains performance under thermal stress.
Featuring a maximum DC current rating of 50 mA and high maximum DC resistance of 140 ohms, it suits power supply circuits demanding efficient energy management. The component withstands operating temperatures from -40°C up to 80°C, making it suitable for industrial and commercial electronics exposed to varying conditions.
With a maximum self-resonant frequency of 500 kHz, this inductor operates reliably across medium frequencies and ensures low electromagnetic interference. The product meets RoHS compliance, supporting environmentally conscious manufacturing and usage standards.
Packaged in embossed tape, it is optimized for surface mount technology (SMT) automated production lines, enhancing assembly speed and accuracy.
Manufactured in Japan, the Murata LQH55DN103M03L ensures premium quality and consistent performance in electronic components for industrial, automotive, laboratory, and consumer electronics applications.
Constructed with ferrite core for enhanced magnetic properties. Wirewound design for low DC resistance and high current handling. Suitable for choke and power supply circuits. RoHS compliant ensuring environmental safety.
Reliable performance between -40°C to 80°C operation temperature range. Embossed tape packaging for efficient automated SMT assembly. High self-resonant frequency supports medium frequency circuits. Compact 2220 package/case ideal for space-sensitive installations.
Explore additional Murata Surface Mount Inductors and electronic components at EnvMart for diverse industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Murata LQH55DN103M03L has an inductance value of 10 mH with a tolerance of ±20%.
This model has a maximum DC current rating of 50 mA.
The maximum DC resistance is 140 ohms, which ensures efficient current flow.
It operates reliably between -40°C and 80°C.
The maximum self-resonant frequency is 500 kHz, enabling stable operation in frequency-sensitive applications.
This inductor features a wirewound construction, which enhances current capacity and maintains performance under thermal stress.
It comes in a 2220 package/case size, suitable for surface mounting.
The inductor is packaged in embossed tape, which is optimized for automated assembly processes.
Yes, it is compliant with RoHS standards, ensuring environmental safety.
The dimensions are 5.7 mm in length, 5 mm in depth, and 4.7 mm in height.
The core material is ferrite, which provides reliable magnetic characteristics.
It is suitable for choke and DC-DC converter applications where low direct current resistance and stable inductance are crucial.
