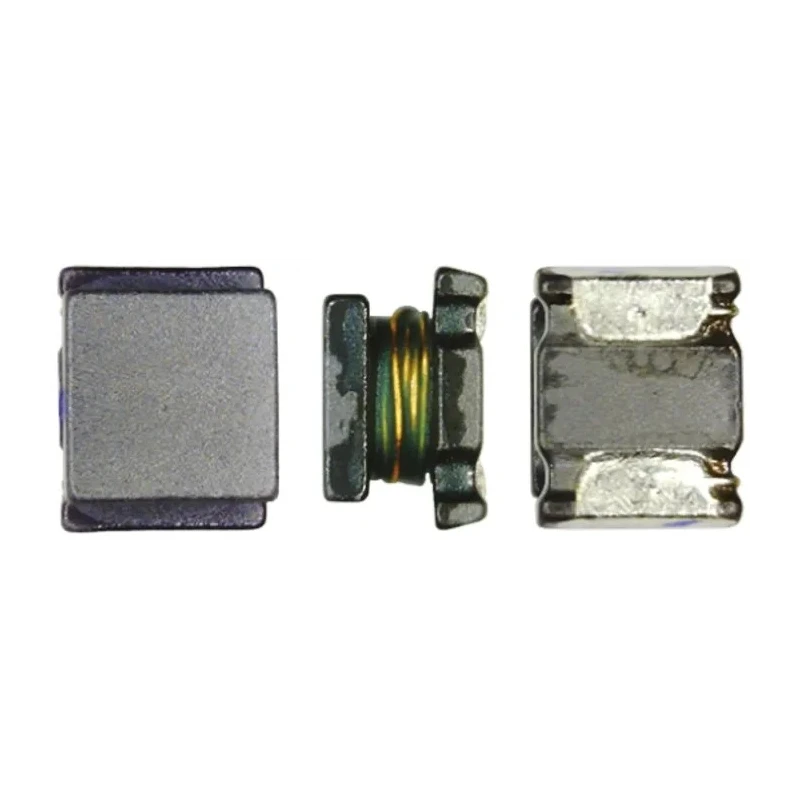

Murata 10 μH ±10% 450 mA 1210 Unshielded Wirewound Surface Mount Inductor with Ferrite Core LQH32CN100K53L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 1.55mm |
| Length | 3.2mm |
| Model | LQH32CN100K53L |
| Depth | 2.5mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 450mA |
| Maximum DC Resistance | 390mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 26MHz |
| Inductor Construction | Wirewound |
Key Features
- Provides stable inductance with low DC resistance for efficient power management.
- Constructed with a ferrite core ensuring high performance in filtering applications.
- Compact 1210 surface mount package suitable for PCB mounting.
- Rated for operation between -40°C and 85°C for reliability under various conditions.
- RoHS compliant ensuring environmental and safety standards.
- Embossed tape packaging supports efficient automated assembly.
- Maximum self-resonant frequency of 26 MHz suitable for high-frequency circuits.
- Termination style uses solder for secure electrical connection.
Product Description
The Murata LQH32CN100K53L is a 1210 size unshielded wirewound surface mount inductor featuring a ferrite core designed for electronic applications requiring efficient power filtering and energy storage. It offers a nominal inductance of 10 μH with a tolerance of ±10%, supporting a maximum DC current of 450 mA. The inductor is characterized by a low DC resistance of 390 mΩ, ensuring minimal voltage drop and heat generation during operation.
This component has been manufactured to meet RoHS standards, reflecting compliance with environmental safety regulations. It is moulded and constructed wirewound for stability and durability. Operating temperature ranges from -40°C to 85°C, enabling use in diverse industrial and commercial electronic equipment.
The 1210 package size with dimensions 3.2 mm in length, 1.55 mm in height, and 2.5 mm in depth offers compactness ideal for modern PCB layouts. Its ferrite core provides high magnetic permeability, enhancing inductive performance in switching power supplies, filters, and other signal processing circuits.
Stable inductance performance with low DC resistance for efficiency. Ferrite core construction for high magnetic performance. Compact, standard 1210 package designed for surface mounting. Wide operating temperature range (-40°C to 85°C) for reliability.
RoHS compliant ensuring safe material usage. Embossed tape packaging optimized for automated manufacturing. High self-resonant frequency (26 MHz) supporting high-frequency applications. Solder termination for secure and reliable electrical connection.
This inductor is ideal for industrial, consumer electronics, automotive power control, and telecommunications applications. Murata’s LQH series combines quality, small size, and dependable performance, supporting advanced electronic circuit designs.
Explore a wide range of Surface Mount Inductors and related electronic components at EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal inductance of this model is 10 μH with a tolerance of ±10%.
This inductor is rated for a maximum DC current of 450 mA.
The maximum self-resonant frequency is 26 MHz, making it suitable for high-frequency applications.
The dimensions of the 1210 package are 3.2 mm in length, 1.55 mm in height, and 2.5 mm in depth.
It operates within a temperature range of -40°C to 85°C, ensuring reliability under various conditions.
This inductor features a ferrite core, which provides high magnetic permeability and performance.
The maximum DC resistance is 390 mΩ, ensuring minimal voltage drop during operation.
It is packaged in embossed tape, which supports efficient automated assembly processes.
The termination style uses solder for secure electrical connections.
Yes, this model is RoHS compliant, meeting environmental and safety standards.
It is suitable for applications in industrial, consumer electronics, automotive power control, and telecommunications.
The inductor is constructed as wirewound, providing stability and performance in its applications.
