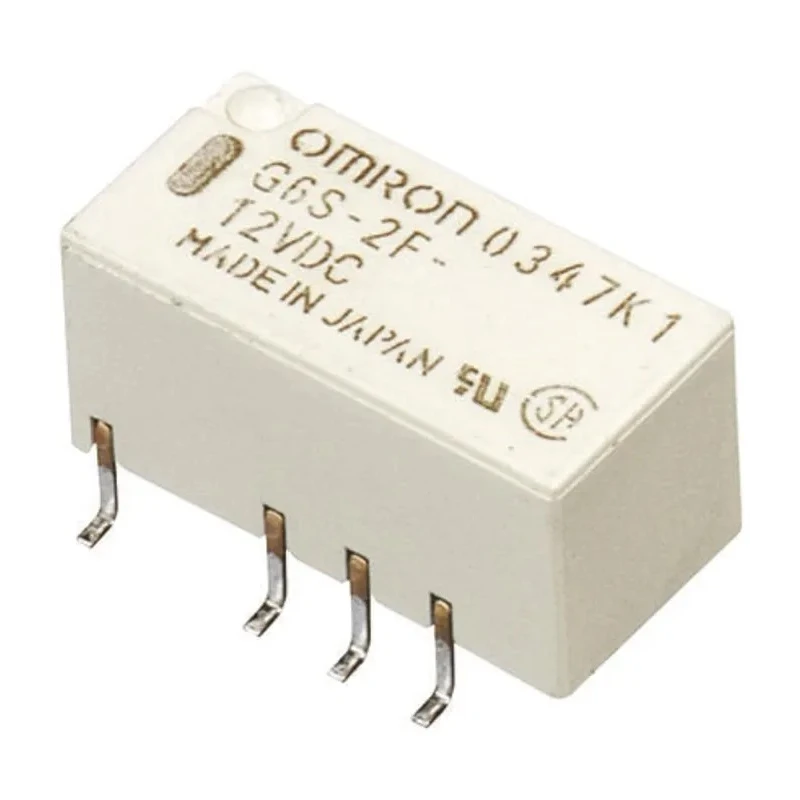

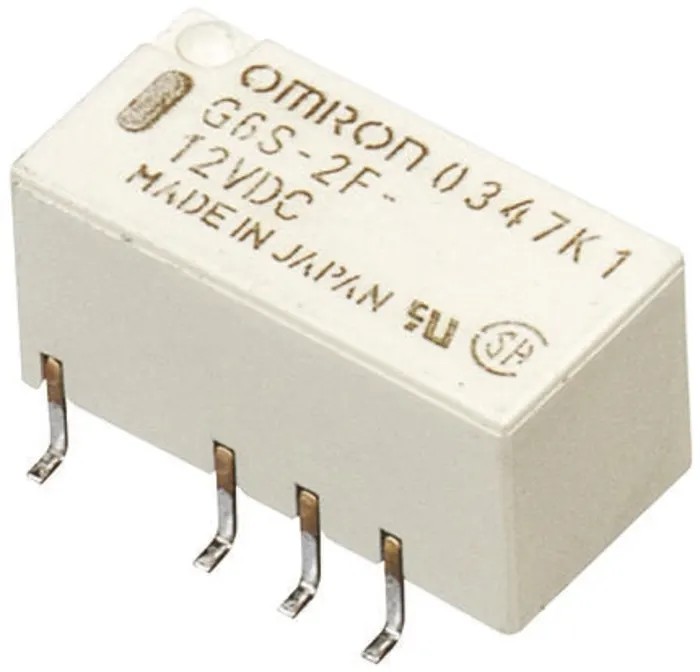

Omron Surface Signal Relay 12V DC Coil 2A DPDT G6S-2F-Y DC12
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 9.2mm |
| Length | 14.8mm |
| Model | G6S-2F-Y DC12 |
| Width | 7.3mm |
| Mount Type | Surface |
| Contact Material | Silver Alloy |
| Series | HFD31 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Coil Resistance | 720Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 200mW |
Key Features
- Fully sealed construction ensures durability and protection against environmental factors.
- High dielectric strength with 2000Vac between coil and contacts.
- High impulse withstand voltage of 2500V to meet Bellcore requirements.
- Operating temperature range from -40°C to 85°C suitable for diverse industrial environments.

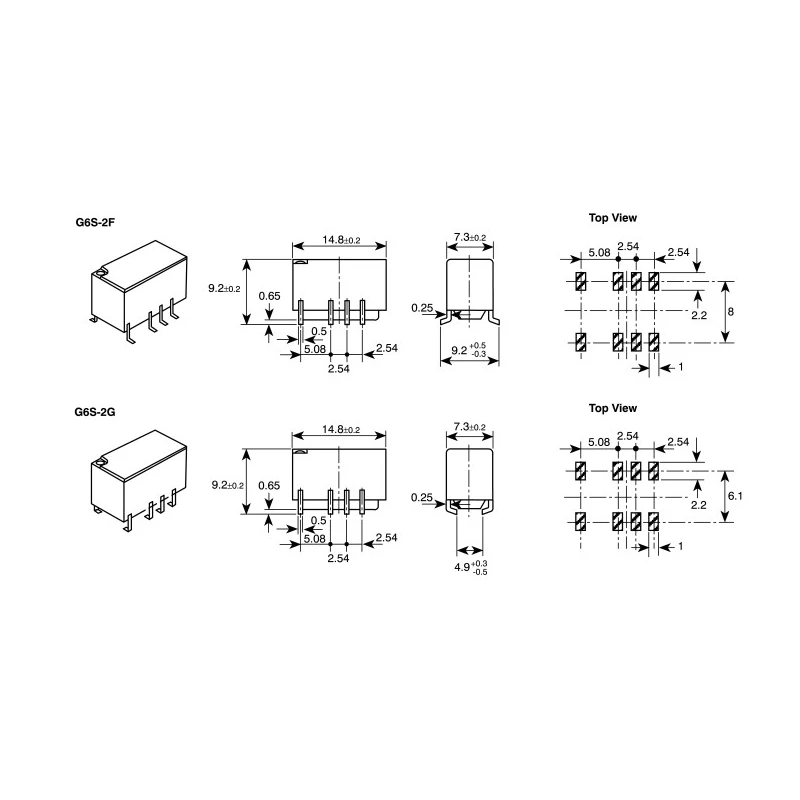

- Compact surface-mount design with dimensions 14.8mm length, 9.2mm height, and 7.3mm width.
- Silver alloy contact material provides excellent conductivity and long service life.
- Low coil power consumption at 200mW with coil resistance of 720Ω.
- Compliance with RoHS standards ensuring environmental safety.
Product Description
Omron G6S-2F-Y DC12 Surface Signal Relay is engineered to provide high reliability and performance in industrial, automation, and electrical control systems. This relay features a 12V DC coil and a double pole double throw (DPDT) contact configuration, ideal for complex signal switching applications.
The relay offers a fully sealed construction for effective insulation and protection against dust and moisture. It boasts high dielectric strength of 2000Vac between coil and contacts and 1500Vac between contacts of different polarity, ensuring safety and signal integrity in critical circuits.
Designed to withstand high impulse voltages up to 2500V (2x10 μs), it meets stringent Bellcore requirements, suited for telecom and industrial use. The operating temperature range from -40°C to 85°C allows usage in harsh environmental conditions.
This compact surface mount relay measures 14.8mm in length, 9.2mm in height, and 7.3mm in width, enabling efficient PCB space utilization. Silver alloy contacts provide excellent electrical conductivity and longevity, while the coil consumes just 200mW power with 720Ω resistance.
Fully sealed construction ensures durability and protection against environmental factors. High dielectric strength with 2000Vac between coil and contacts. High impulse withstand voltage of 2500V to meet Bellcore requirements.
Operating temperature range from -40°C to 85°C suitable for diverse industrial environments. Compact surface-mount design for efficient PCB integration. Silver alloy contact material provides excellent conductivity and long service life.
Low coil power consumption at 200mW with coil resistance of 720Ω. RoHS compliant for environmental safety and industry standards.
This relay is widely used in automation control, industrial machinery, HVAC systems, signal conditioning, and electrical equipment where reliable and precise switching is critical.
Explore our broad selection of relays and signal conditioning products at EnvMart for comprehensive industrial and commercial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay features a double pole double throw (DPDT) contact configuration, which is suitable for complex signal switching applications.
The maximum operating temperature is 85°C, allowing it to function effectively in various industrial environments.
The coil voltage for this relay is 12V DC, making it compatible with low-voltage control systems.
This relay has a compact design with dimensions of 14.8mm in length, 9.2mm in height, and 7.3mm in width.
The relay can handle a switching current of up to 2A, suitable for various applications in automation and control.
The coil resistance is 720Ω, which contributes to its low power consumption.
It has a high impulse withstand voltage of 2500V, meeting stringent Bellcore requirements for safety in critical circuits.
Yes, the relay complies with RoHS standards, ensuring it meets environmental safety requirements.
The relay uses silver alloy as the contact material, which provides excellent conductivity and longevity.
The minimum operating temperature is -40°C, allowing it to operate in extreme conditions.
The coil power consumption is 200mW, which is relatively low and efficient for its operation.
This relay is widely used in automation control, industrial machinery, HVAC systems, and signal conditioning where reliable switching is critical.
