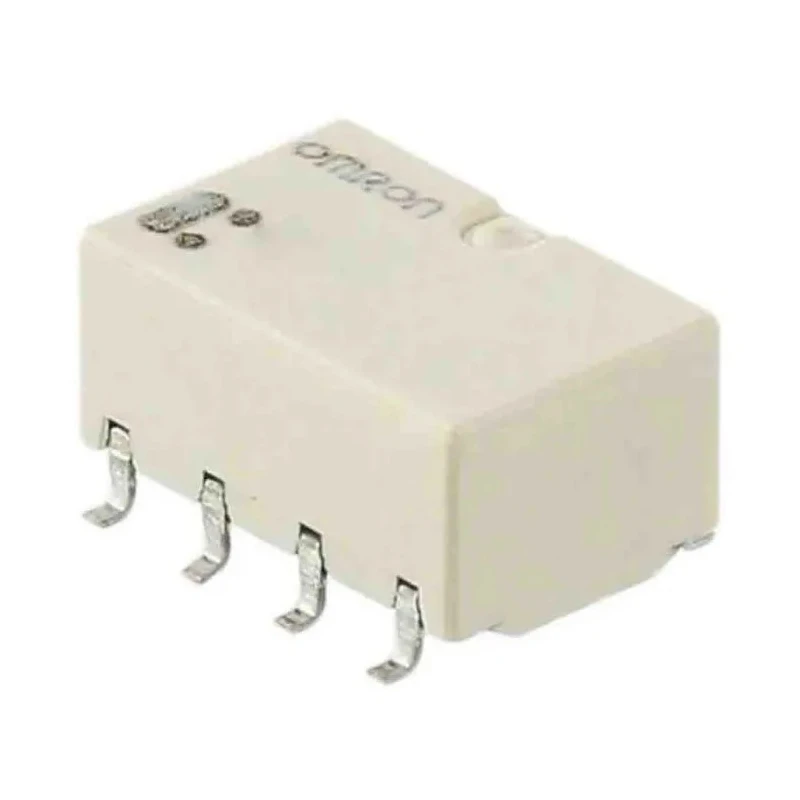

Omron Surface Signal Relay 12V DC Coil 1A DPDT G6K-2F-TR DC12
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 5.2mm |
| Length | 10mm |
| Model | G6K-2F-TR DC12 |
| Width | 6.5mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | G6K |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | Surface Mount |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1300Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 100mW |
| Switching Power | 30W |
Key Features
- Compact sub miniature surface mount relay for high-density PCB mounting.
- Operates within temperature range of -40°C to 70°C.
- Gold plated contacts ensure reliable switching and low contact resistance.
- Coil power consumption is only 100mW with 1300Ω coil resistance.
- Extremely low contact resistance at max 100mΩ to ensure signal integrity.
- Compliant with RoHS standards for environmental safety.
Product Description
Omron G6K-2F-TR DC12 Surface Signal Relay is a high-performance, sub miniature relay designed for PCB surface mounting. It features a 12V DC coil and a DPDT contact configuration, which supports switching current up to 1A making it versatile for various signal relay applications.
The relay is designed with a very compact footprint of 5.2 mm (H) x 6.5 mm (W) x 10 mm (L), ideal for high-density mounting in space-constrained electronic assemblies. Its gold plated contacts provide excellent electrical conductivity, minimizing contact resistance to a maximum of 100 milliohms.
Operating temperature ranges from minus 40°C to plus 70°C, supporting reliable performance in harsh industrial environments. It supports switching AC voltage up to 125V and DC voltage up to 60V with a switching power of 30W, suitable for signal conditioning tasks in automation and electronic control systems.
The coil has resistance of 1300 ohms and a coil power of only 100 milliwatts, ensuring low power consumption during operation. The surface mount terminal type makes installation easier in modern electronic circuits.
Being RoHS compliant, the relay meets environmental and safety standards, ideal for use in industrial automation, electronics manufacturing, instrumentation, and control applications.
Compact surface mount relay for high-density PCB assembly. Gold plated contacts reduce electrical resistance and increase reliability. Wide operating temperature range supports industrial uses. Low coil power consumption for energy efficient circuits.
DPDT contact configuration for versatile signal switching. Suitable for automation, electronic control, and instrumentation. RoHS compliant for environmental safety.
This Omron surface signal relay offers reliability and compactness, making it an ideal choice for engineers designing advanced automation and electronic systems. Explore our Electronics & Electricals category at EnvMart for more Signal Relays and industrial components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile signal switching applications.
The maximum switching current for this relay is 1A, making it suitable for various signal relay tasks.
It operates at a coil voltage of 12V DC with a low power consumption of only 100mW.
The relay has a compact footprint measuring 5.2 mm in height, 6.5 mm in width, and 10 mm in length, making it ideal for high-density PCB mounting.
It operates effectively within a temperature range of -40°C to 70°C, suitable for harsh industrial environments.
This unit features a surface mount terminal type, facilitating easier installation in modern electronic circuits.
The contact resistance is extremely low, at a maximum of 100 milliohms, ensuring signal integrity during operation.
It can switch AC voltage up to 125V and DC voltage up to 60V, with a maximum switching power of 30W.
Yes, the Omron G6K-2F-TR DC12 is compliant with RoHS standards, ensuring it meets environmental safety regulations.
The contacts of this relay are made from gold plated material, which enhances electrical conductivity and reliability.
This model is part of the G6K series of relays, known for their compact design and performance in signal switching applications.
It is suitable for use in industrial automation, electronics manufacturing, instrumentation, and control applications due to its reliable performance.
