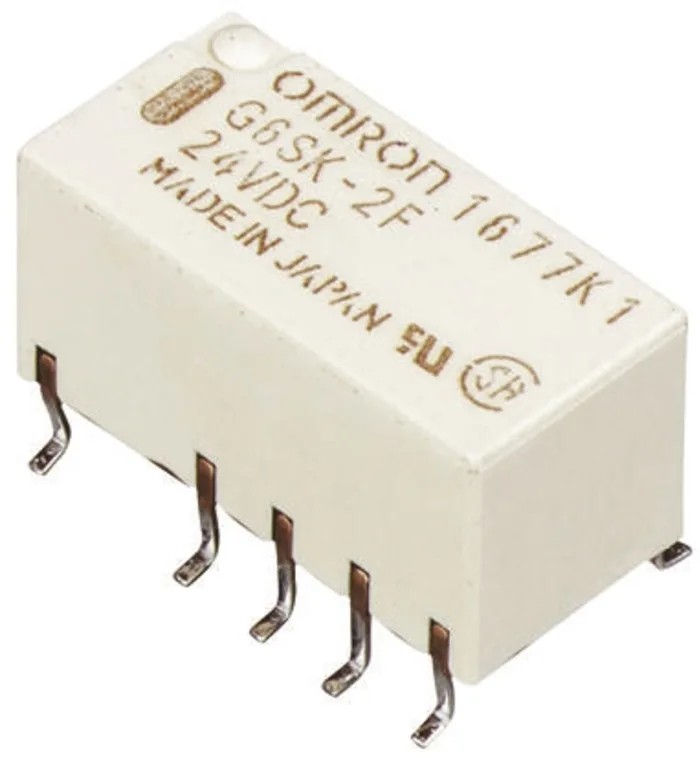

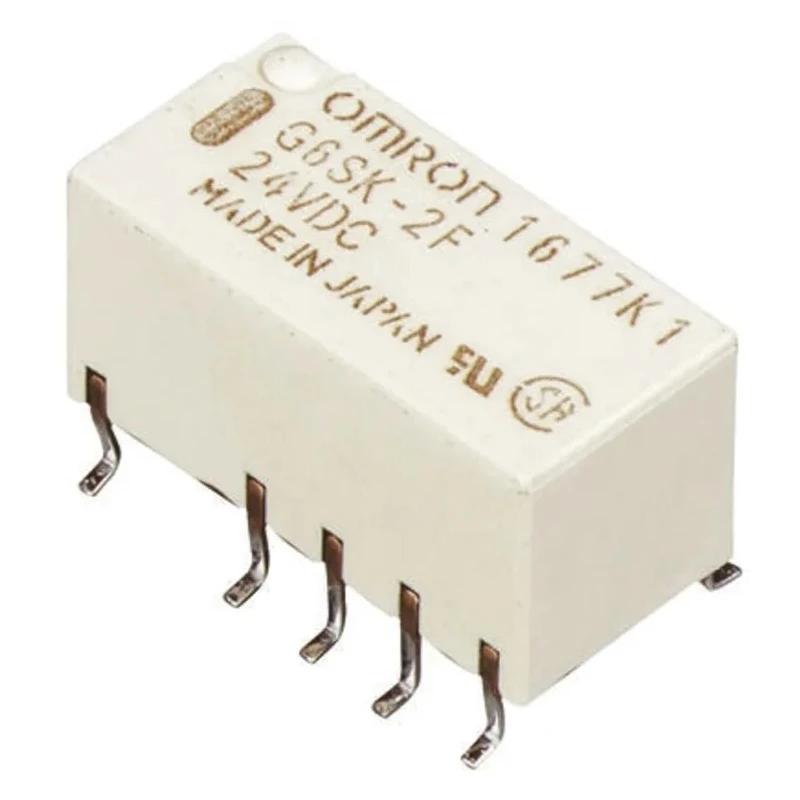

Omron Surface Signal Relay 3V DC Coil 2A DPDT, Gold Plated Contacts, 9.2mm x 9.2mm x 14.8mm G6SK-2F DC3
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 9.2mm |
| Length | 14.8mm |
| Model | G6SK-2F DC3 |
| Width | 9.2mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | G6S |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Surface Mount |
| Contact Resistance | 75mΩ |
| Standards/Approvals | CSA, UL |
| Coil Voltage | 3V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 200mW |
Key Features
- Features a surface mount design for efficient PCB integration.
- Gold plated contacts ensure low contact resistance and enhanced durability.
- Operates at coil power of 200mW to minimize energy consumption.
- Wide operating temperature range from -40°C to 70°C for versatile use.
- Suitable for switching AC voltage up to 250V and DC voltage up to 220V.

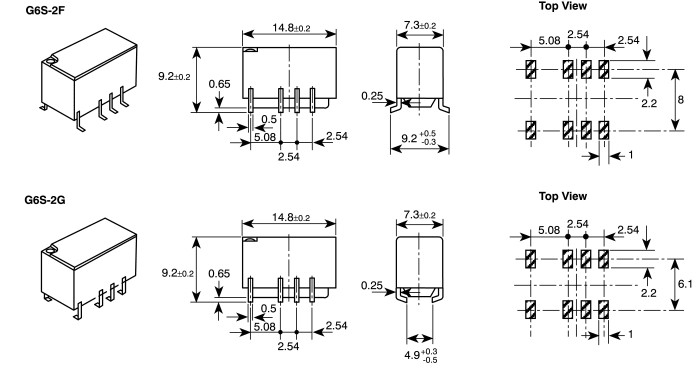

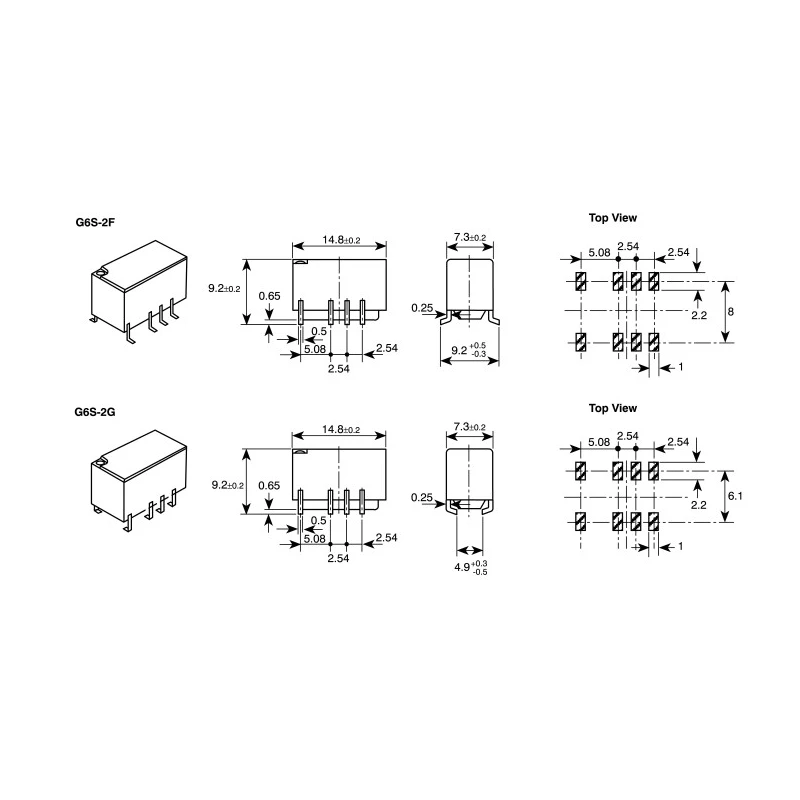

- Compact dimensions of 9.2mm width, 9.2mm height, and 14.8mm length.
- Complies with CSA and UL safety standards for industrial use.
- High dielectric strength for reliable insulation and performance.
Product Description
Omron G6SK-2F DC3 is a surface signal relay featuring a 3V DC coil and double-pole double-throw (DPDT) contact configuration, ideal for precise switching applications in automation, electrical control, and signal conditioning.
This relay provides a switching current capacity of 2A and supports AC voltages up to 250V and DC voltages up to 220V, suitable for various industrial and commercial use cases. Designed for PCB surface mounting, it offers compact dimensions of 9.2mm x 9.2mm x 14.8mm, enabling space-efficient integration into electrical assemblies.
With gold plated contacts, the relay ensures low contact resistance of 75mΩ and high reliability across extensive operating temperatures ranging from -40°C to 70°C. The coil power consumption is 200mW, contributing to energy-efficient operation. Its fully sealed construction provides excellent dielectric strength between coil and contacts (2000Vac) and among contacts of different polarity (1500Vac).
Certified to meet CSA and UL standards, the G6SK-2F DC3 relay is manufactured in Japan, guaranteeing stringent quality and performance standards. Its high impulse withstand voltage, compliance with Bellcore requirements, and available insulation options make it an excellent choice for demanding industrial and electrical control environments.
Features a surface mount design for efficient PCB integration. Gold plated contacts ensure low contact resistance and enhanced durability. Operates at coil power of 200mW to minimize energy consumption. Wide operating temperature range from -40°C to 70°C for versatile use.
Suitable for switching AC voltage up to 250V and DC voltage up to 220V. Compact dimensions of 9.2mm width, 9.2mm height, and 14.8mm length. Complies with CSA and UL safety standards for industrial use. High dielectric strength for reliable insulation and performance.
Manufactured in Japan, ensuring high quality and precision.
The Omron G6SK-2F DC3 is well-suited for use in industrial automation, electrical machinery, HVAC controls, manufacturing equipment, and other commercial electrical applications requiring reliable signal relay performance. Explore more products in the Signal Relay category on EnvMart for comprehensive electrical control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Omron G6SK-2F DC3 operates with a coil voltage of 3V DC.
This relay supports a maximum switching current of 2A.
The dimensions of this relay are 9.2mm in width, 9.2mm in height, and 14.8mm in length.
The relay features a double-pole double-throw (DPDT) contact configuration.
It operates within a temperature range of -40°C to 70°C.
The G6SK-2F DC3 is designed for surface mounting on PCBs.
It is suitable for switching AC voltages up to 250V and DC voltages up to 220V.
The contacts of this relay are made of gold plating, which ensures low contact resistance.
The coil power consumption for this relay is 200mW.
This relay complies with CSA and UL safety standards.
The contact resistance is rated at 75mΩ, ensuring efficient performance.
This relay is manufactured in Japan, ensuring high quality and precision.
