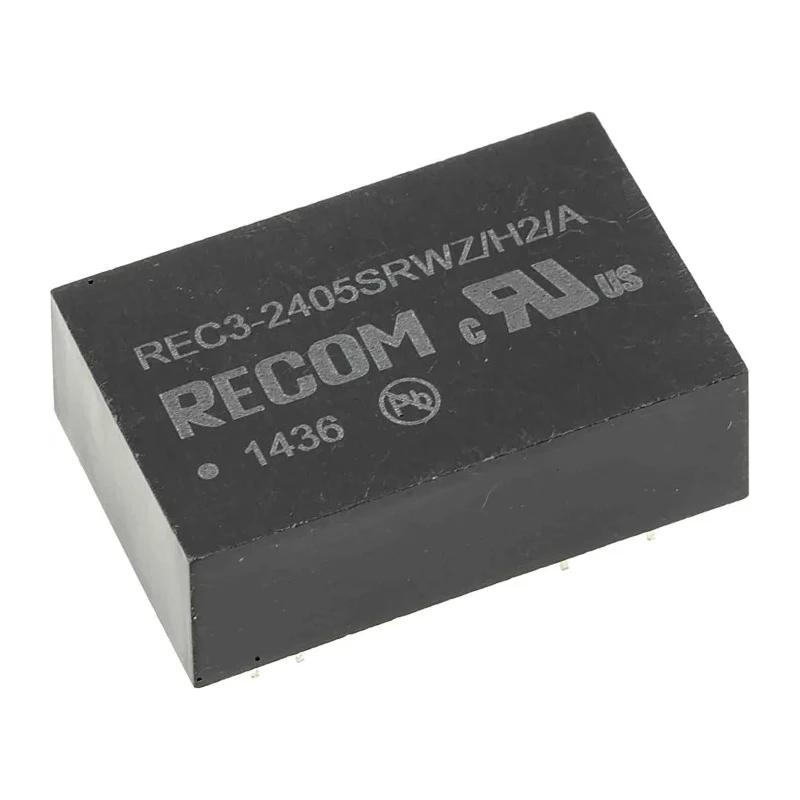

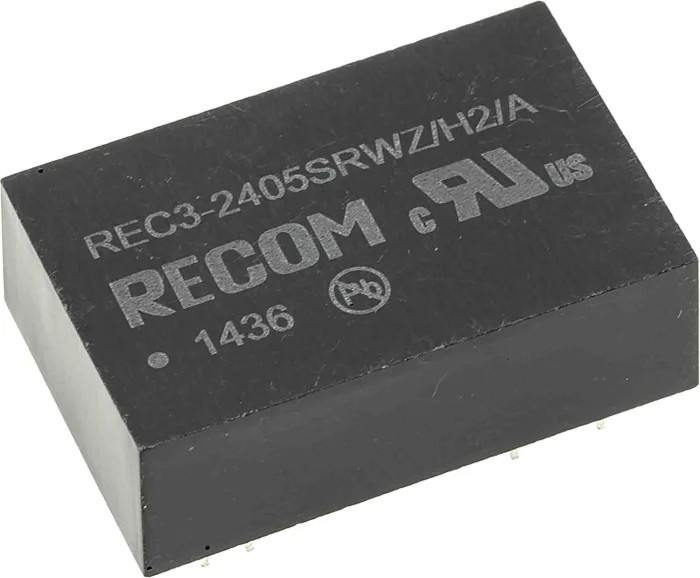

Recom DC/DC Converter 5V DC 600mA Output 3W Through Hole DIP Package 24V Max Input REC3

Recom REC3 model DC/DC Converter is a compact, DIP package, isolated converter delivering regulated 5V DC output at 600 mA with a maximum output power of 3 watts. This through-hole mounted converter accepts a wide DC input voltage range from 18V to 24V, allowing adaptability in various power supply environments.

Designed with industrial reliability in mind, the unit operates safely within a temperature range of -40°C to 85°C without derating, making it ideal for demanding industrial, manufacturing, automation, and electronic equipment applications. The wide 4:1 input voltage range supports varying power sources.

This converter features continuous short circuit protection and a feedback regulated output to maintain stable voltage under load. It has an isolation voltage rating of 1kV AC, ensuring protection and noise reduction between input and output circuits.

Its low 50mV peak-to-peak ripple and noise output quality is advantageous in sensitive electronics and precise instrumentation. High efficiency rated at 80%, helps reduce heat generation and improve power utilization efficiency.

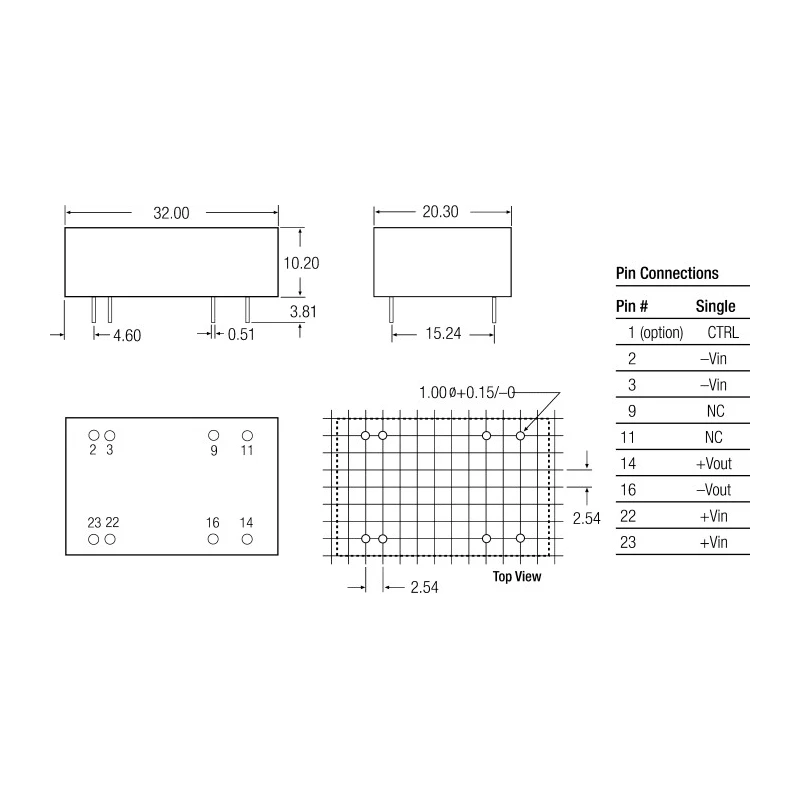

The package type is a standard DIP with 24 pins, facilitating easy integration on PCBs through through-hole mounting. With a compact size of 32 mm length, 10.2 mm width, and 10.2 mm depth, it fits well in limited space layouts.

The device complies with UL, IEC, and CSA standards and is UL recognized, assuring safety and quality. It has an MTBF of 186,000 hours, signifying long operational life and durability under continuous use.

Common industrial use cases include embedded systems, instrumentation power supplies, industrial control systems, and any application requiring reliable isolated DC/DC conversion in a small form factor.

Each unit weighs 13 grams and is made in Taiwan, Province Of China, combining quality manufacturing with robust design. The converter accepts wide input voltage from 18V to 24V DC. It features a single output with an output current of 600 mA.

Operating temperature range is from -40°C to 85°C suitable for industrial applications. Includes continuous short circuit protection and feedback regulated output for reliability. The device has 1kV isolation voltage and a 24-pin DIP package for easy PCB mounting.

High efficiency of approximately 80% ensures minimal power loss during operation. The module offers low ripple and noise with 50mV peak-to-peak output ripple. Designed to meet UL, IEC, and CSA approvals for safety standards compliance.

MTBF is rated at 186,000 hours indicating high reliability. Compact dimensions of 32mm length, 10.2mm width, and 10.2mm depth make it suitable for space-constrained designs. Explore more DC/DC Converters and power supply solutions at EnvMart for industrial, laboratory, and commercial use.
