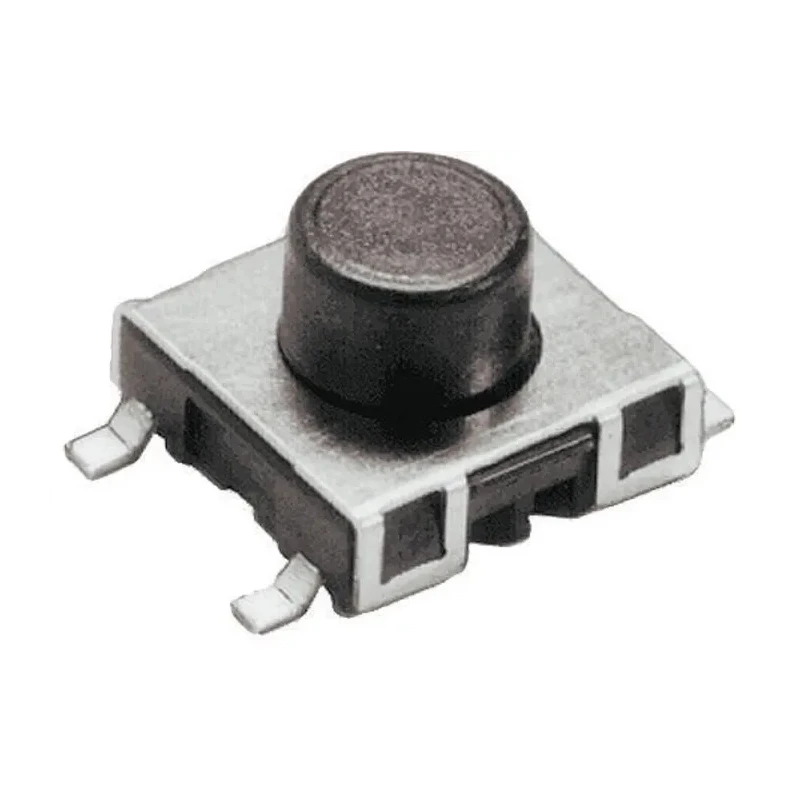

Schurter IP67 Black Tactile Switch Button 4.1 mm SPST 50mA 32 V dc Surface 1241.1618.11

Name: Schurter IP67 Black Tactile Switch Button 4.1 mm SPST 50mA 32 V dc Surface 1241.1618.11
Brand: Schurter
SKU: 407242
Price: 207.8 INR
Availability: InStock



Category Tactile Switch Brand Schurter Condition New

Specifications

Country of Origin	Czech Republic
Brand	Schurter
Operating Temperature	-40 to + 85°C
Height	7.75mm
Length	11.4mm
IP Rating	IP67
Width	11.4mm
Mount Type	Surface
Contact Material	Gold
Series	SMS
Maximum Switching Current	50mA
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Minimum Operating Temperature	-40°C
Terminal type	Surface Mount
Standards/Approvals	RoHS
Actuator Colour	Black
Actuator Length	4.1mm
Contact DC Voltage	32V dc
Actuator Style	Button
Switch Contact Current	50mA
Operating Force	2.2N
Mechanical Life	1000000Cycles
Rated breaking capacity	0.12W

Key Features

The actuator is black and styled as a button delivering a tactile response.
This switch is rated IP67, making it waterproof and dust tight.
It has a mechanical life of 1,000,000 cycles ensuring long durability.
Operating force is 2.2N for precise actuation and reliable switching.
Designed for surface mount installation suitable for SMT IR-Reflow soldering.
Supports ambient temperature from -40°C to 85°C, suitable for harsh environments.
Contact material is gold, ensuring superior conductivity and resistance to corrosion.
Compact dimensions of 11.4 mm length and width with a height of 7.75 mm.

Product Description

Schurter 1241.1618.11 tactile switch button is a dependable surface mount tactile switch designed for industrial and electronic applications requiring a miniature push button with a tactile response. The black actuator measures 4.1 mm in length and is styled as a button. It features SPST contact configuration with a contact rating of 50mA at 32 V dc, ensuring low power control capability.

This switch complies with IP67 standards, providing full protection against dust ingress and temporary immersion in water, making it ideal for rugged environments and applications involving exposure to harsh conditions. The operating temperature range from -40°C to 85°C broadens its applicability in both cold and warm industrial settings.

The Schurter SMS series is engineered for surface mounting using SMT IR-Reflow soldering processes, improving assembly efficiency and reliability in mass production. The mechanical life exceeds one million cycles, delivering extended service life for demanding operational requirements.

The operating force is 2.2N, designed to provide a tactile, momentary switching action that can be utilized in various control panels, keyboards, and electronic instrumentation. Gold contact material is used for enhanced electrical performance and reliability.

Compact with dimensions of 11.4 mm length and width, and a height of 7.75 mm, this switch fits well in space-constrained designs. The IP67 protection level also ensures it can be exposed to soldering and cleaning processes without damage, making it suitable for automated manufacturing lines.

The actuator colour is black, providing a discreet and professional appearance on circuit boards. Contact configuration is single pole single throw (SPST), enabling simple on/off switching functions. It offers a rated breaking capacity of 0.12W for low power switching needs.

The switch supports a maximum switching voltage of 32V dc with a current rating of 50mA. Certified RoHS compliant, ensuring adherence to environmental and safety regulations.

This Schurter tactile switch is manufactured in the Czech Republic, reflecting high-quality European manufacturing standards and robust design for industrial, electronic assembly, and automation applications.
