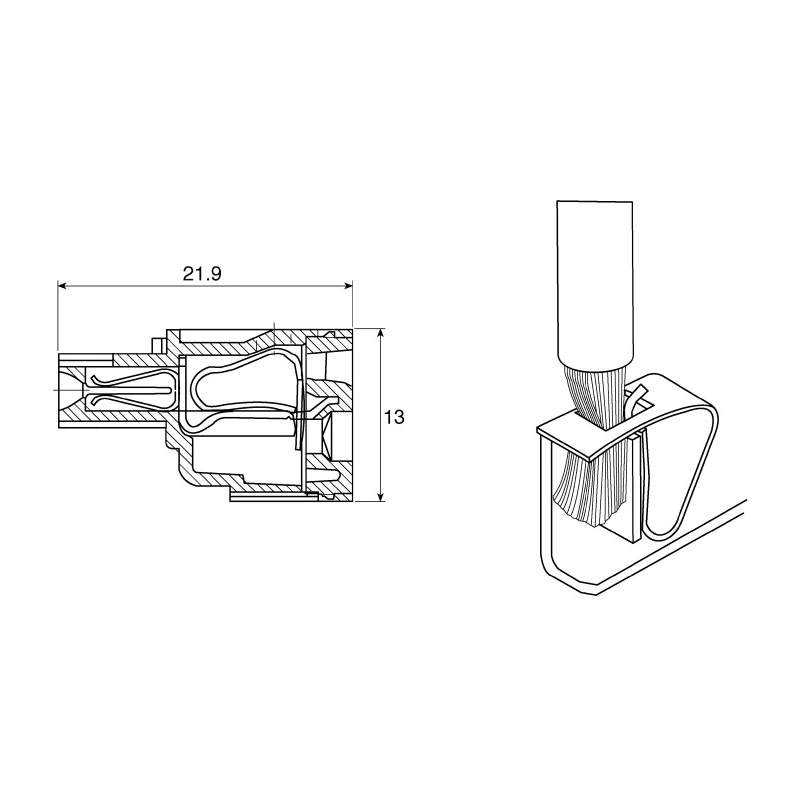

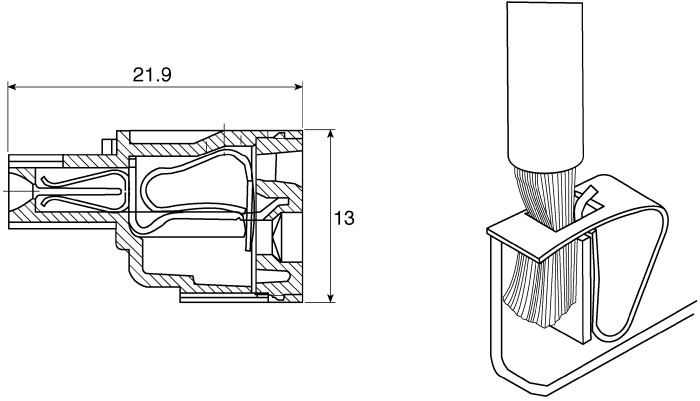

Weidmüller BL Series Pluggable Terminal Block, 2-Contact, 3.5 mm Pitch, 1 Row, 320 V, 14.5 A, Polybutylene 1690190000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Weidmüller |
| Colour | Orange |
| Orientation | 180° |
| Current | 14.5A |
| Depth | 22mm |
| Width | 7mm |
| Housing Material | Polybutylene Terephthalate |
| Series | BL |
| Number of Rows | 1 |
| Pitch | 3.5mm |
| Number of Contacts | 2 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.13mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Tension Clamp Spring |
Key Features
- Constructed with polybutylene terephthalate housing providing durability and electrical insulation.
- Features female connector gender with tension clamp spring wire connection method.
- Designed with 180° orientation and an orange color for easy identification.
- Supports wire sizes from 0.13 mm² to 1.5 mm² (28 AWG to 16 AWG).
- Compact dimensions with width of 7 mm and depth of 22 mm suit space-saving applications.
- Ideal for industrial and electronic applications requiring secure and reliable connections.
- Series BL product manufactured in Germany ensuring high quality standards.
Product Description
Weidmüller 1690190000 BL Series pluggable terminal block with 2 contacts, 3.5 mm pitch, one row, rated at 320 V and 14.5 A current capacity. This terminal block features a durable polybutylene terephthalate housing in orange color, designed to offer excellent electrical insulation and mechanical stability.
The female connector utilizes a tension clamp spring mechanism to securely hold wires sized between 0.13 mm² (28 AWG) and 1.5 mm² (16 AWG), enabling reliable connections in electronic and industrial applications.
Its compact dimensions - 7 mm width and 22 mm depth - make it suitable for tight PCB layouts and space-constrained environments. The 180° orientation and single row configuration facilitate easy integration with mating harness connectors.
Manufactured under the BL series in Germany, this product meets high-quality and durability standards essential for power connectors in automation, control systems, and electronic device assemblies.
Constructed with polybutylene terephthalate housing providing durability and electrical insulation. Features female connector gender with tension clamp spring wire connection method. Designed with 180° orientation and an orange color for easy identification.
Supports wire sizes from 0.13 mm² to 1.5 mm² (28 AWG to 16 AWG). Compact dimensions with width of 7 mm and depth of 22 mm suit space-saving applications. Ideal for industrial and electronic applications requiring secure and reliable connections.
Series BL product manufactured in Germany ensuring high quality standards. This pluggable terminal block is widely used in electronics, telecommunications, manufacturing automation, control panels, and power distribution systems.
Explore the range of Weidmüller products and Pluggable Terminal Blocks on EnvMart for reliable and efficient electrical connection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Weidmüller BL Series pluggable terminal block is rated for 320 V.
This terminal block has a current capacity of 14.5 A.
It supports wire sizes from 0.13 mm² to 1.5 mm² (28 AWG to 16 AWG).
The pitch of this model is 3.5 mm.
The connector is designed with a 180° orientation.
The housing is constructed from polybutylene terephthalate, providing electrical insulation and mechanical stability.
It has a width of 7 mm and a depth of 22 mm, making it suitable for space-saving applications.
It utilizes a tension clamp spring wire connection method for secure wire retention.
This model features 2 contacts.
This terminal block is manufactured in Germany.
The terminal block is orange in color, designed for easy identification.
It is ideal for industrial and electronic applications requiring secure and reliable connections.
