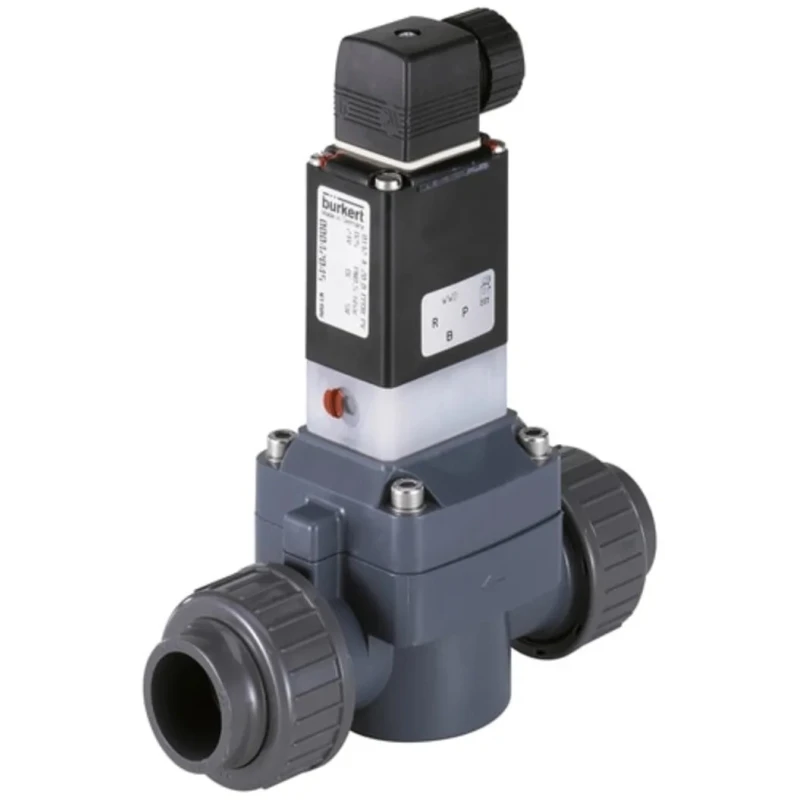

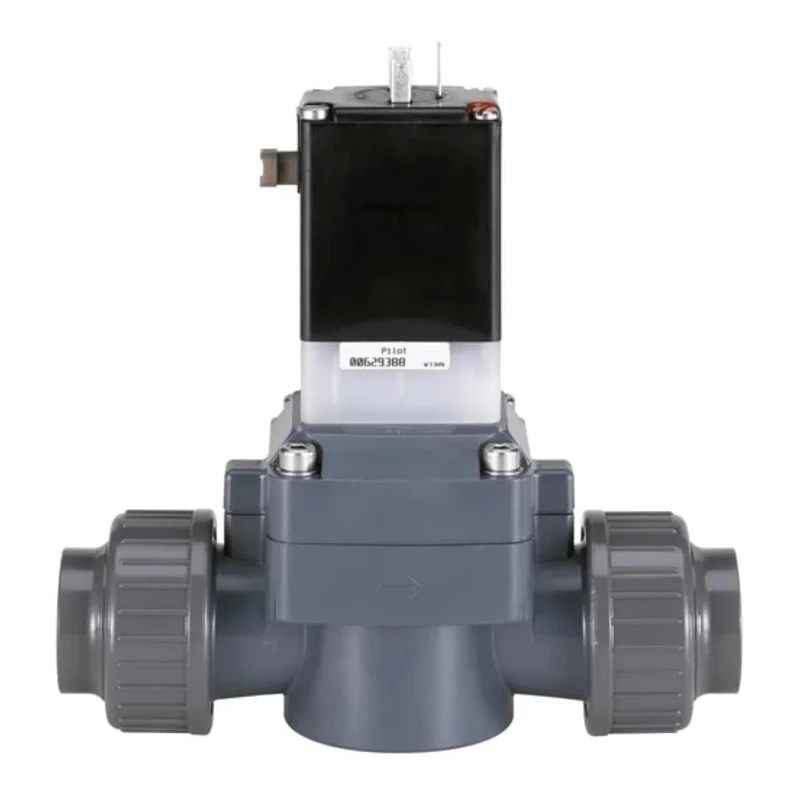

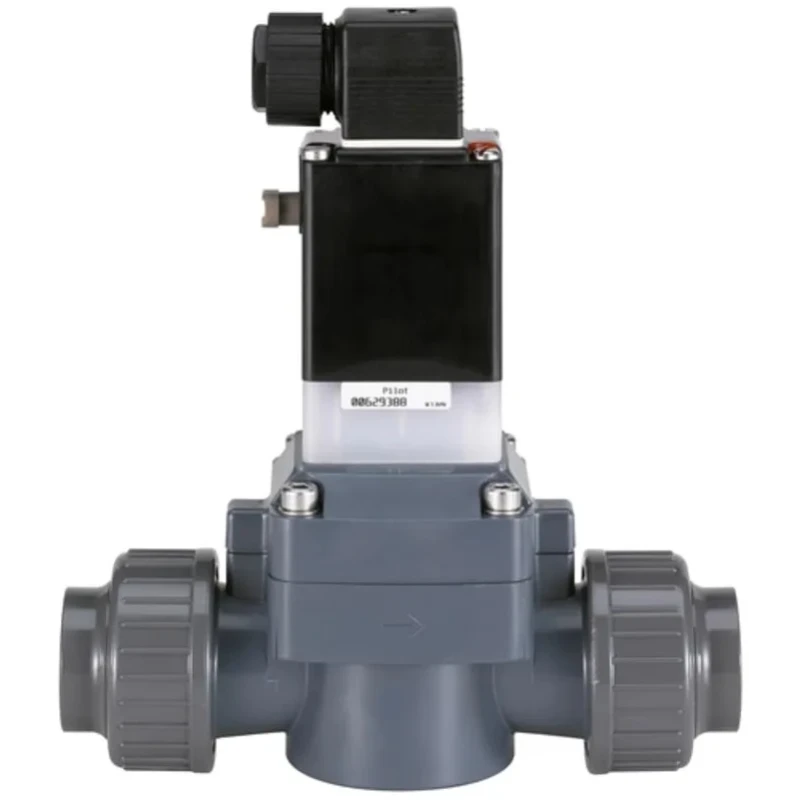

Burkert 2 Port NC Solenoid Valve DN 20 Polyvinyl Chloride Body 24V DC 6 Bar 042045

Burkert 042045 is a high-quality 2 Port Normally Closed (NC) solenoid valve manufactured with a polyvinyl chloride body to ensure robust chemical resistance and durability.

Operating at 24V DC, this valve supports flow regulation of aggressive media, including acids, bases, and aggressive gases, making it ideal for water treatment, chemical cleaning, and food and beverage processing industries.

The valve features a 20mm orifice diameter allowing a flow factor Kv of 6 m³/h, and it supports a maximum operating pressure of 6 bar. It is engineered for industrial environments requiring precise control with a maximum opening time of 800ms and maximum closing time of 4 seconds.

The valve body and lid are made from PVC with internal parts composed of PVDF and EPDM seals, providing double sealing to the valve interior and ensuring leak-free operation even with contaminated fluids except sharp, solid, or long fibers.

Additional features include a lockable manual override and servo assist, enabling manual operation during power failure or maintenance.

Certified to strict standards such as cURus coil approval, DIN EN 175301-803, and hazardous area certifications including ATEX and IECEx, the valve guarantees safety and compliance in demanding environments.

The unit is designed for ambient temperature operation from 0 to 40°C with ingress protection up to IP65, making it suitable for industrial, laboratory, water treatment, chemical, and food & beverage applications requiring reliable valve control under aggressive media exposure.

Features a polyvinyl chloride body for chemical resistance. Two-port design with normally closed (NC) valve position. Operates at a supply voltage of 24V DC and maximum pressure of 6 bar. Equipped with a 20mm orifice diameter for balanced flow.

Suitable for use with acids, bases, and other aggressive media. Contains a lockable manual override and servo assist functionality. Meets cURus coil approval, DIN EN 175301-803, ATEX, and IECEx hazardous area certifications.

Ambient temperature operational range from 0 to 40°C ensures versatile industrial use. Ingress protection to IP65 when used with cable plug Type 1051. Explore the wide range of Burkert Solenoid Valves and industrial valve solutions at EnvMart for enhanced fluid control and automation equipment.
