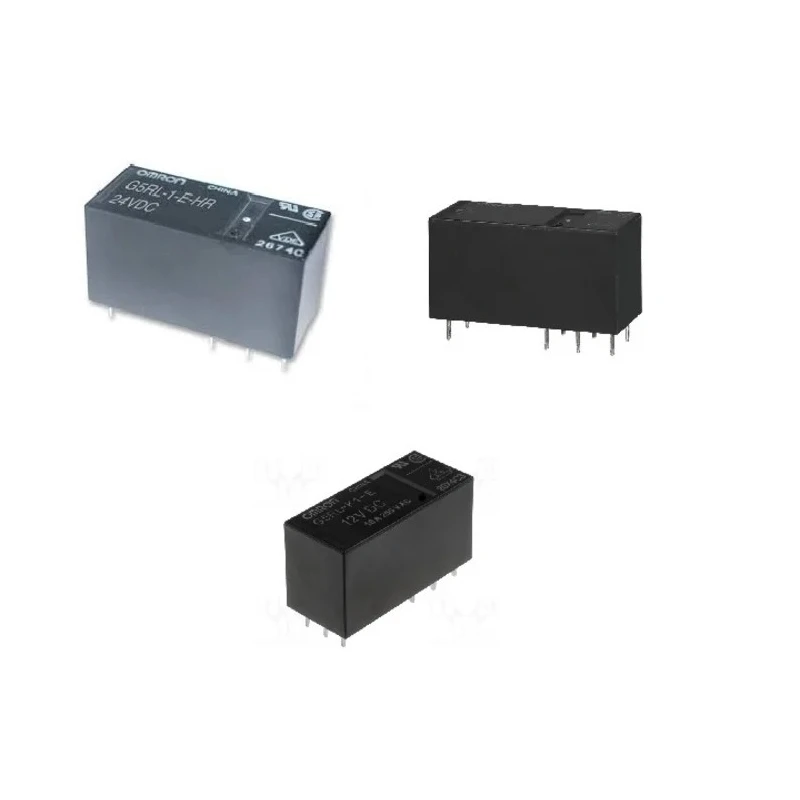

Omron PCB Relay 5V dc Coil 16A Switching Current SPDT G5RL-1-E-HR DC5

Omron G5RL-1-E-HR DC5 PCB Relay is a low-profile power relay designed for industrial and electronic applications requiring a single pole double throw (SPDT) contact configuration. It operates with a 5V dc coil voltage and has a coil resistance of 62.5 ohms which results in a coil current of approximately 80 mA, ensuring efficient operation with minimal power consumption of 750 milliwatts.

The relay supports switching currents up to 16A and switching voltages of 24V dc and 24V ac, handling demanding electrical loads with a switching power capacity of 4 kVA. The contacts are coated with a silver alloy to minimize contact resistance to 100 milliohms, enhancing conductivity and longevity in signal switching applications.

It is intended for PCB mounting and features solder-type terminals for secure and reliable connections. The compact size of 29 mm in length, 15.7 mm in height, and 12.7 mm in width allows for space-efficient designs in automation, control panels, and power supplies. The relay is capable of operating in a wide ambient temperature range from −40°C to 85°C to suit harsh environments.

This Omron relay series conforms to RoHS environmental standards ensuring compliance with global regulatory requirements. The 8 mm creepage distance between coil and contacts enhances insulation safety during switching operations.

Common industrial applications include automation equipment, HVAC controls, manufacturing systems, and power control circuits. It provides reliable, precise switching capabilities crucial for modern control systems.

The relay offers reliable operation with a coil resistance of 62.5 ohms. It supports switching voltages of 24V dc and 24V ac for versatile usage. Constructed with silver alloy contacts to ensure low contact resistance of 100 milliohms.

Designed for PCB mounting with solder-type terminals for easy integration. Rated for ambient operating temperatures from -40°C to 85°C for durable performance. The relay provides a switching power of 4 kVA suitable for power relay applications.

The compact dimensions are 29mm length, 15.7mm height, and 12.7mm width allowing space-efficient PCB design. Coil power consumption is low at 750 mW improving energy efficiency. The product complies with RoHS standards indicating environmental compliance.

Manufactured in China under the Omron G5RL series known for quality relays. Explore more power relay products in EnvMart’s Electronics & Electricals category for professional and industrial-grade components.
