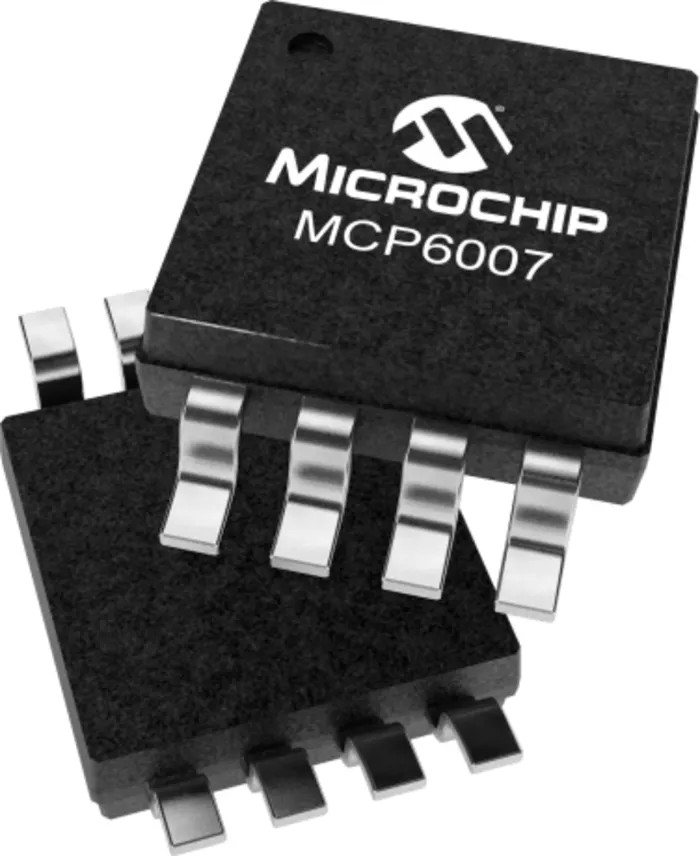

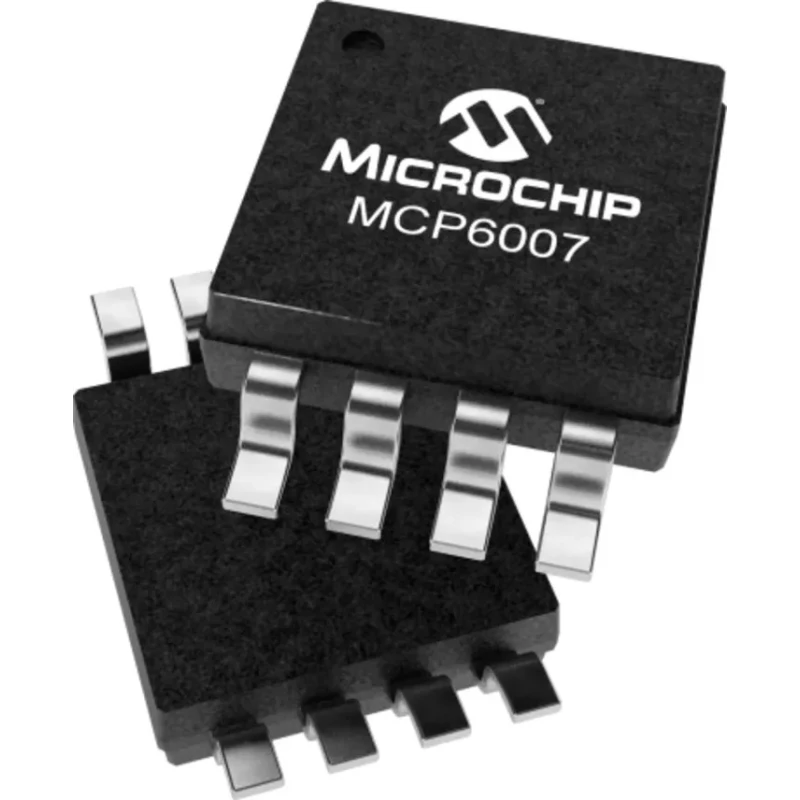

Microchip Operational Amplifier MCP6007-E/SN 1 MHz Gain Bandwidth Product, 8-Pin MSOP, 5.5V MAX

Free Delivery in India | Lowest Global Shipping Charges

Microchip Operational Amplifier MCP6007-E/SN 1 MHz Gain Bandwidth Product, 8-Pin MSOP, 5.5V MAX

Name: Microchip Operational Amplifier MCP6007-E/SN 1 MHz Gain Bandwidth Product, 8-Pin MSOP, 5.5V MAX
Brand: Microchip
SKU: 405870
Price: 0.36 USD
Availability: InStock



Category Operational Amplifier Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1.1mm
Length	3mm
Model	MCP6007-E/SN
Width	3mm
Mount Type	Surface
Series	MCP6007
Output Current	30mA
Maximum Operating Temperature	125°C
Package Type	MSOP
Minimum Operating Temperature	-40°C
Supply Voltage	1.8V to 5.5V
Standards/Approvals	RoHS
Pin Count	8
Automotive Standard	AEC-Q100
Minimum Supply Voltage	5.5V
Supply Current	50 μA (typical)
GBP - Gain Bandwidth Product	1MHz
Input Bias Current	±1 pA
Vos - Input Offset Voltage	1.6 mV
Slew Rate	1.9V/μs
Gain bandwidth product	1 MHz (typical)
Input offset voltage	1.6 mV (maximum)
EMIRR at 1.8 GHz	95 dB (typical)

Key Features

Offers a maximum supply voltage of 5.5V ensuring robust performance.
Features low input bias current of ±1 picoampere for precision applications.
Typical supply current is 50 microamperes supporting low power consumption.
Operating temperature range spans from -40°C to 125°C for demanding environments.
Input offset voltage maximum of 1.6 mV contributes to accurate signal amplification.
Typical slew rate of 1.9 V/μs provides fast response for dynamic signals.
Compact 3mm x 3mm x 1.1mm MSOP package facilitates space-saving PCB layouts.
Integrated EMI filtering enhances device reliability in noisy environments.

Product Description

Microchip MCP6007-E/SN is a high-performance Operational Amplifier featuring a 1 MHz gain bandwidth product, ideal for industrial, automotive, and instrumentation applications. Packaged in an 8-pin MSOP surface-mount package, this device supports single-supply operation up to a maximum of 5.5V, providing flexibility for low voltage designs.

The amplifier offers low input bias current of ±1 picoampere and an input offset voltage maximum of 1.6 mV, making it suitable for precision measurement and signal conditioning tasks. Its typical slew rate of 1.9 V/μs enables swift response for dynamic signals encountered in control systems and audio processing.

Designed to operate over an extended temperature range of -40°C to 125°C, the MCP6007-E/SN meets rigorous industrial and automotive temperature requirements. With integrated EMI filtering and robust output current capability of 30 mA, it ensures reliable performance in harsh electrical environments and supports diverse load conditions.

The compact 3mm by 3mm by 1.1mm MSOP footprint allows space-efficient PCB layouts, essential for tightly packed electronic assemblies. This product complies with RoHS environmental standards and is qualified to the automotive AEC-Q100 standard, confirming its suitability for automotive electronics.

Maximum supply voltage of 5.5V for versatile applications. Low quiescent current of 50 μA promotes energy efficiency. Wide operating temperature range for harsh environments. Compact and reliable 8-pin MSOP surface-mount package.

Integrated EMI filtering for enhanced noise immunity. AEC-Q100 automotive qualification assures high quality. Typical gain bandwidth product of 1 MHz for wide frequency operation. Input offset voltage maximum 1.6 mV for signal accuracy.

Output current capability of 30 mA supports various loads. Slew rate of 1.9 V/μs for rapid signal changes.

Ideal for use in industrial instrumentation, automotive electronics, and general-purpose amplification tasks, the MCP6007-E/SN combines precision, reliability, and compact design. Explore the full range of Microchip semiconductor products on EnvMart for advanced electronic components.
