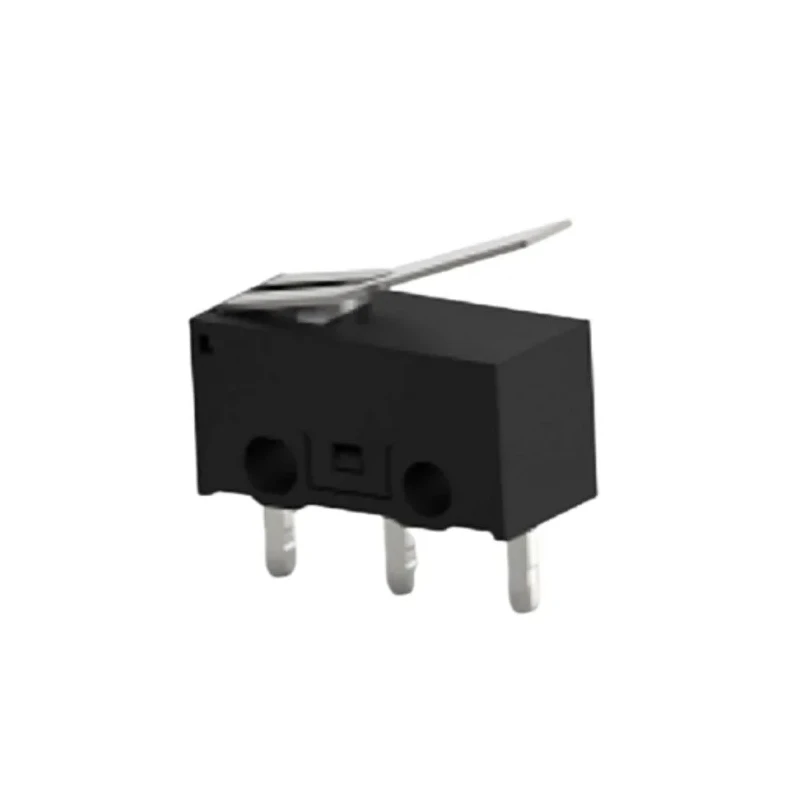

TE Connectivity Lever Snap Action Micro Switch, PCB Terminal, 3A, SPDT SAJ13XXBL0N88SDTPTQ
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ13XXBL0N88SDTPTQ |
| Series | SAJ |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPDT |
| Actuator Type | Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Switch Contact Current | 3A |
| Operating Force | 0.75N |
| Mechanical Life | 500000Cycles |
| Microswitch Type | Miniature |
Key Features
- The miniature micro switch features a lever type actuator for precision control.
- It is designed for reliable operation with a mechanical life of 500,000 cycles.
- The switch supports a maximum contact current of 3A and has Single Pole Double Throw contacts.
- Operating force is 0.75N ensuring sensitive actuation.
- Suitable for a wide operating temperature range from -25°C to 75°C.
- Complies with RoHS standards ensuring environmental safety.
- PCB terminal type is resistant to flux, making it ideal for printed circuit board applications.
- Highly reliable and extensively used in home appliances, consumer electronics, and industrial automation.
Product Description
TE Connectivity SAJ13XXBL0N88SDTPTQ lever snap action micro switch is a high-quality, miniature snap action switch featuring a lever actuator and PCB terminal connections. It carries a current rating of 3A and a Single Pole Double Throw (SPDT) contact configuration, suitable for various electrical and electronics applications.
This micro switch is engineered for durability with a mechanical life expectancy of 500,000 cycles, ensuring long-term reliable operation in demanding conditions. The operating force of 0.75N allows for precise and sensitive actuation, important for control systems and safety mechanisms.
Endurance across a broad temperature range from -25°C to 75°C makes this switch adaptable for both domestic appliances and industrial environments. The PCB terminal type is designed to resist flux, offering excellent reliability when mounted on printed circuit boards.
The product complies with RoHS standards, affirming its environmental safety and regulatory adherence. Its miniature form factor allows it to fit easily into compact designs, and its dimensional compatibility with other popular brand switches simplifies replacements and upgrades.
The miniature micro switch features a lever actuator for precision control. Mechanical life of 500,000 cycles for durability. 3A maximum contact current suitable for varied applications. SPDT contact configuration for flexible circuit design.
Operating force of 0.75N ensures sensitive response. Operating temperature range from -25°C to 75°C. RoHS compliant for environmental safety. PCB terminal resistant to flux for reliability in electronic circuits. Compatible dimensions with popular micro switch brands.
This lever snap action micro switch by TE Connectivity is widely used in industrial automation, home appliances, consumer electronics, manufacturing equipment, HVAC controls, and other electrical devices requiring dependable, miniature switching solutions.
Explore our extensive range of Micro Switches and other electronic components at EnvMart to find the optimal solution for your project's requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact current for this micro switch is 3A.
This model operates within a temperature range of -25°C to 75°C.
The switch has a mechanical life expectancy of 500,000 cycles.
It features a lever type actuator for precision control.
The operating force required for actuation is 0.75N.
The contact configuration of this switch is Single Pole Double Throw (SPDT).
Yes, it complies with RoHS standards, ensuring environmental safety.
This model uses PCB terminals that are resistant to flux, making it suitable for printed circuit board applications.
It is widely used in home appliances, consumer electronics, and industrial automation.
The country of origin for this product is China.
This micro switch belongs to the SAJ series.
This switch is classified as a miniature micro switch.
