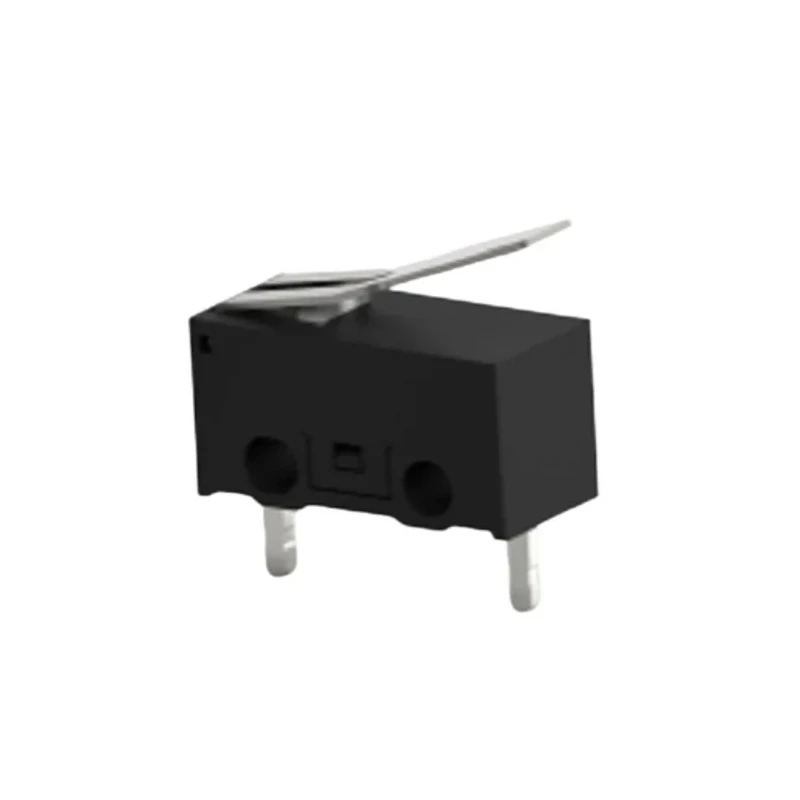

TE Connectivity Lever Snap Action Micro Switch PCB Terminal 0.1A SPST SAJ101XBL0N74SNCPTQ
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ101XBL0N74SNCPTQ |
| Series | SAJ1 |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPST |
| Actuator Type | Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Switch Contact Current | 0.1A |
| Operating Force | 0.75N |
| Mechanical Life | 1000000Cycles |
| Microswitch Type | Miniature |
Key Features
- The lever actuator design allows quick and reliable mechanical to electrical action conversion.
- It operates at a contact current of 0.1A suitable for low power applications.
- Features a durable mechanical life of one million cycles for extended reliability.
- Designed for industrial and domestic uses including factory automation and consumer electronics.
- PCB terminals provide excellent resistance to flux, ensuring longevity in circuit boards.
- Operating force is a precise 0.75N to ensure consistent actuation performance.
- Works effectively within temperatures ranging from -25°C to 75°C.
- Complies with RoHS environmental standards ensuring safe use.
Product Description
TE Connectivity SAJ101XBL0N74SNCPTQ Lever Snap Action Micro Switch is a highly reliable miniature snap action switch featuring a lever type actuator and PCB terminal connections. Rated for a switch contact current of 0.1A and a single-pole, single-throw (SPST) configuration, this component is engineered for converting mechanical actions into precise electrical signals.
This micro switch is designed with an operating force of 0.75 Newtons, providing consistent and sensitive response suitable for diverse applications such as home appliances, consumer electronics, factory automation, and other industrial environments. It offers a robust mechanical life of one million cycles, ensuring long-term durability in demanding conditions.
The PCB terminal construction is resistant to flux, supporting reliable soldering and circuit board mounting quality. Operating temperature ranges from -25°C to 75°C allow deployment in varying ambient conditions common in both domestic and industrial setups. The switch complies with RoHS standards, promoting environmentally responsible manufacturing and use.
Dimensionally identical with other leading brands, the SAJ101XBL0N74SNCPTQ switch seamlessly integrates into existing product designs without modification. Its miniature size and precise SPST configuration make it ideal for control systems where space and dependability are critical.
The lever actuator provides quick and reliable switching action. 0.1A current rating suits low power signal applications. One million mechanical cycles ensure longevity. Wide operating temperature range from -25°C to 75°C.
Complies with RoHS directives for environmental safety. Miniature size for versatile industrial and consumer applications. PCB terminals resist flux and enhance soldering quality. Suitable for home appliance, automation, and industrial control use.
Dimensionally compatible with widely used switch designs.
Explore the complete range of Micro Switches from TE Connectivity at EnvMart for industrial and commercial applications to ensure precision, reliability, and compliance with modern specifications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch has a contact current rating of 0.1A, making it suitable for low power applications.
The operating force for this model is 0.75 Newtons, providing consistent and sensitive response.
It features a mechanical life of one million cycles, ensuring long-term reliability in various applications.
This model operates effectively within a temperature range of -25°C to 75°C, suitable for diverse environments.
It uses a lever type actuator, which allows for quick and reliable mechanical to electrical action conversion.
The switch is configured as a single-pole, single-throw (SPST), which is common for various applications.
This model features PCB terminals, which provide excellent resistance to flux and enhance soldering quality.
Yes, it complies with RoHS environmental standards, promoting safe use and responsible manufacturing.
It is designed for use in home appliances, consumer electronics, factory automation, and other industrial environments.
The country of origin for this model is China.
This model is dimensionally identical to other leading brands, allowing for seamless integration into existing designs without modification.
