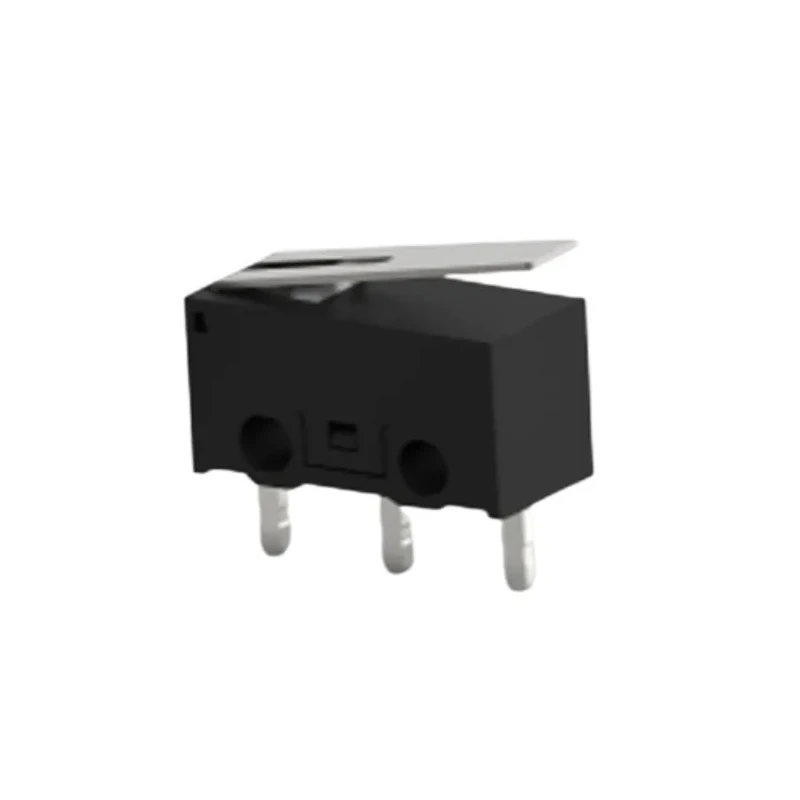

TE Connectivity Lever Snap Action Micro Switch, PCB Terminal, 0.1A, SPDT SAJ101XHL0N74SDTPTQ
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ101XHL0N74SDTPTQ |
| Series | SAJ1 |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPDT |
| Actuator Type | Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Switch Contact Current | 0.1A |
| Operating Force | 0.75N |
| Mechanical Life | 1000000Cycles |
| Microswitch Type | Miniature |
Key Features
- The actuator type is lever for efficient mechanical operation.
- Designed with miniature form factor suitable for compact assemblies.
- Features a mechanical life of 1,000,000 cycles for extended durability.
- Operating force is 0.75N ensuring responsive switch action.
- Designed to work within a temperature range from -25°C to 75°C.
- PCB terminals resistant to flux enhance soldering quality and reliability.
- RoHS compliant ensuring environmental safety standards.
- This switch is dimensionally compatible with popular brand equivalents for easy integration.
Product Description
TE Connectivity SAJ101XHL0N74SDTPTQ is a lever snap action micro switch with a PCB terminal designed for converting mechanical actions into electrical signals. It supports a switching contact current of 0.1A and features SPDT contact configuration.
The miniature switch offers excellent reliability with a mechanical life of 1,000,000 cycles and an operating force of 0.75N. It is engineered to perform under temperature conditions ranging from -25°C to 75°C, fitting varied application environments.
The PCB terminal type is resistant to flux, which ensures high-quality soldering and durability. Its dimensional compatibility with other popular brands makes it highly suitable for use in existing designs.
This micro switch finds applications across multiple industries including home appliances, consumer electronics, factory automation, and other domestic or industrial uses. The device meets RoHS standards, ensuring environmental compliance and reduction of hazardous substances.
The actuator type is lever providing effective mechanical operation. Contact configuration is SPDT for versatile switching. Mechanical life rated at one million cycles guarantees long-term usage. Operating force rated at 0.75N assures precise action.
Temperature rating from -25°C up to 75°C allows diverse application conditions. Flux resistant PCB terminals improve durability and solderability. Miniature size ideal for compact space requirements.
Manufactured in China, this product offers robust performance and reliability for electrical switching applications. Browse more Micro Switches and other precision components on EnvMart for industrial and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this micro switch is 75°C.
This model has a mechanical life rating of 1,000,000 cycles, ensuring long-term usage.
It uses a lever actuator type for efficient mechanical operation.
The contact configuration is SPDT (Single Pole Double Throw).
The operating force for this switch is rated at 0.75N, ensuring responsive action.
The minimum operating temperature is -25°C, allowing it to function in diverse conditions.
It features PCB terminals that are resistant to flux, enhancing soldering quality and reliability.
Yes, this switch is RoHS compliant, ensuring it meets environmental safety standards.
This micro switch is suitable for applications in home appliances, consumer electronics, and factory automation.
The product is designed in a miniature form factor, making it suitable for compact assemblies, though specific dimensions are not provided.
The country of origin for this micro switch is China.
With a mechanical life of 1,000,000 cycles, it offers extended durability compared to many standard switches, though specific comparisons are not detailed.
