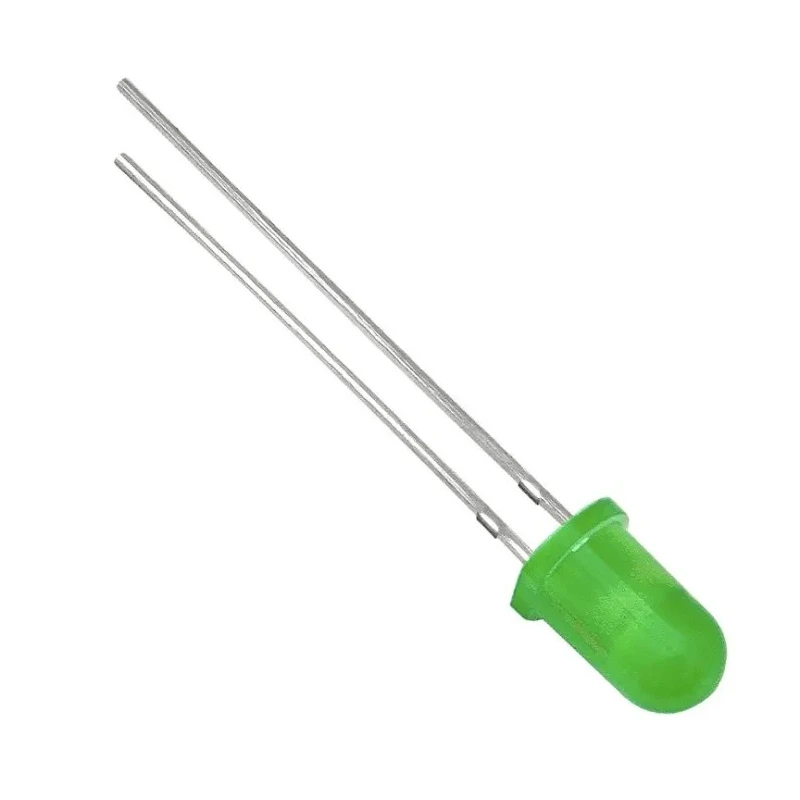

Kingbright 5 mm Green LED Through Hole Resistor LED 6.5 V Forward Voltage 11.5 mA Maximum Forward Current L-53GD-5V

Kingbright L-53GD-5V is a high-quality 5 mm green LED with a T-1 3/4 round diffused lens designed for through hole mounting applications. It features an integral current limiting resistor, which eliminates the need for an external resistor when operated at 12 volts, resulting in simpler circuit design and space savings.

This LED has a forward voltage of 6.5 V and supports a maximum forward current of 11.5 mA, delivering reliable illumination with a luminous intensity of 20 millicandela and a viewing angle of 60 degrees. The dominant wavelength is 568 nm, producing a vivid green light suitable for indicators, displays, and various signaling applications.

The lens dimensions are 5 mm diameter by 8.6 mm length, with a diffused lens finish that provides uniform light distribution to reduce glare. The component is supplied in bulk packaging and has two pins for easy through hole mounting on PCBs. It complies with RoHS environmental standards and is manufactured in China.

The resistor LED series from Kingbright offers dependable performance across a range of electronics projects, industrial controls, and display systems where durable and efficient light-emitting diodes are required.

This LED is ideal for electronic indicators and status lights. Suitable for industrial, laboratory, and commercial electronics assemblies. Provides cost-effective integration without the need for external resistors. Offers a wide viewing angle for clear visibility.

Meets environmental compliance with RoHS certification. Explore more Kingbright LEDs and compatible components for your electronic design needs at EnvMart.
