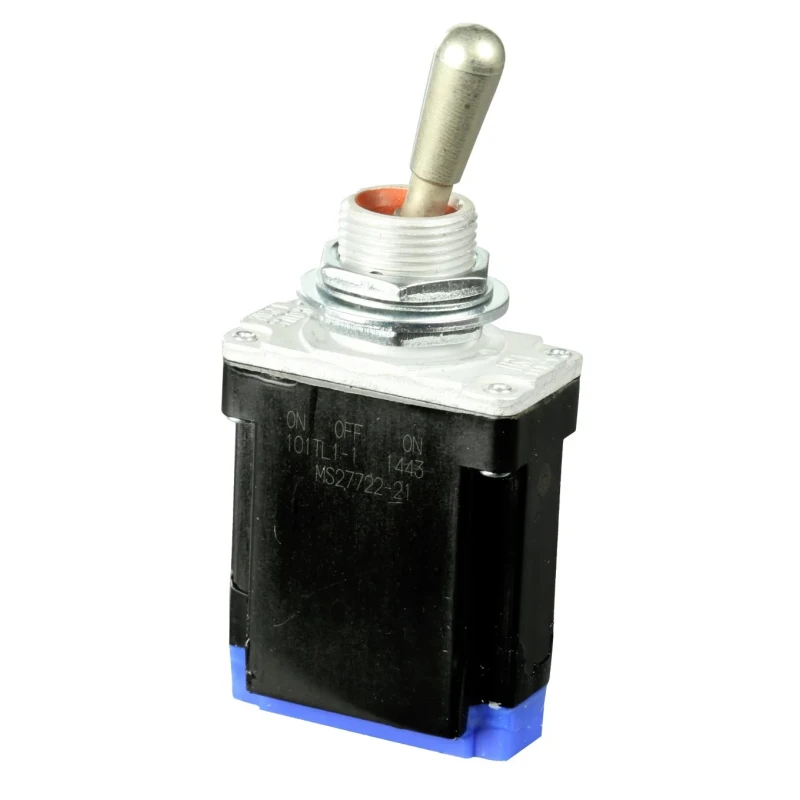

Honeywell Technologies Toggle Switch Bushing Mount On-Off-On SPDT 20A Contact 28V DC 125V AC 101TL1-1

Honeywell 101TL1-1 Toggle Switch Bushing Mount On-Off-On SPDT 20A Contact 28V DC 125V AC is designed to provide reliable manual control for electrical circuits in demanding industrial and automation environments. Its robust bushing mount is ideal for secure panel mounting and is compatible with standard fastening methods, ensuring stable installation in control panels and distribution racks.

This toggle switch features a Single Pole Double Throw (SPDT) configuration with On-Off-On switch operation, allowing selective routing of power between two circuits. It comfortably handles a high switch contact current of 20A, making it suitable for controlling power feeds and motor starters. The device is rated for 28V DC and 125V AC contact voltages, accommodating both low voltage DC and mains-level AC loads.

The actuator is non-illuminated and measures 17.27mm in length, providing tactile feedback during operation. Designed to perform within extreme temperature environments, it operates from -65°C to 71°C, ensuring durability and consistent performance in various industrial conditions.

Key dimensions include a width of 33.5mm, length of 30mm, and height of 26.7mm, maintaining a compact footprint. The toggle switch complies with international safety standards including CSA, CE, and UL, ensuring secure and certified operation.

This toggle switch is commonly used in industrial automation systems, electrical distribution racks, test and measurement rigs, and retrofit equipment requiring panel-mounted bushing switches. It is an essential component for industries demanding reliable, high-current manual switching with recognized safety compliance.

This toggle switch features a bushing mount for secure panel installation. The SPDT contact configuration enables switching between two circuits efficiently. It supports a contact current of 20A for high-current circuit control.

Terminal type is designed for wire connections with IWTS terminal format. Supports 28V DC and 125V AC contact voltages for versatile electrical loads. Operates reliably within a temperature range of -65°C to 71°C. Non-illuminated actuator with a length of 17.27mm for tactile user operation.

Compact dimensions: 33.5mm width, 30mm length, and 26.7mm height. Complies with recognized safety standards including CSA, CE, and UL approvals. Explore more in the Electronics & Electricals category for Switches & Sockets and find suitable Toggle Switches for your industrial and commercial automation needs at EnvMart.
