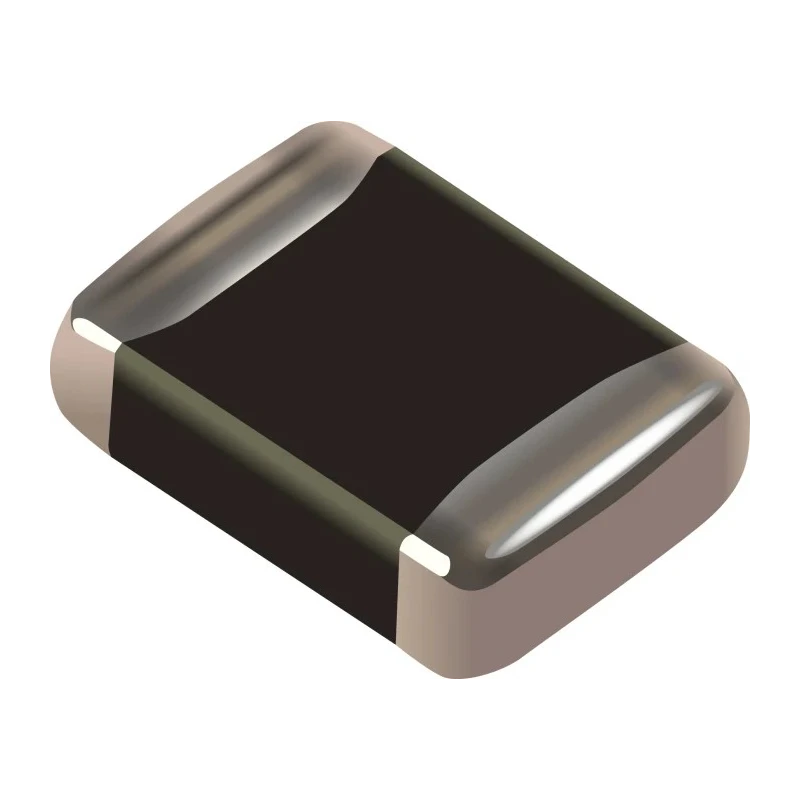

Bourns Low Voltage Surface Mount Varistor 165 pF 1 A Clamping 65 V 39 V 0603 ZV25K0603300NIR1

Bourns ZV25K0603300NIR1 low voltage surface mount varistor provides reliable transient voltage suppression and protection for sensitive electronics. Featuring a capacitance of 165 pF and capable of clamping currents up to 1 A, this device protects circuits by clamping voltages at 65 V with a varistor voltage of 39 V. Packaged in the widely used 0603 size, it is ideal for compact electronic applications.

The varistor is constructed from metal material and uses surface mount termination style, facilitating easy integration into automated assembly lines. Its dimensions are 1.6 mm in length, 0.95 mm thickness, and 0.8 mm depth, making it suitable for space-constrained PCBs.

This component operates reliably in extreme temperature environments from -55°C to +125°C, making it suitable for industrial, automotive, telecommunications, and consumer electronics applications. It supports a maximum AC voltage of 25 V and a maximum DC voltage of 31 V, with the capability to withstand surge currents up to 30 A.

The energy rating of 0.1 joules ensures effective absorption of transient events, protecting downstream electronics from damage. The varistor is compliant with UL and RoHS standards, confirming its safety and environmental friendliness.

Packaged in tape and reel format, the product supports efficient automated handling and placement. Originating from Slovenia, this varistor is ideal for use in industrial surge protection, power supplies, telecommunications equipment, and other critical electronic devices requiring reliable transient voltage suppression.

Designed for low voltage protection in electronic circuits. Metal material with surface mount termination style. Operating temperature range from -55°C to +125°C. Maximum AC voltage rating of 25 V and maximum DC voltage of 31 V.

Capable of handling a maximum surge current of 30 A. Energy rating of 0.1 J suitable for transient voltage suppression. Complies with UL and RoHS standards for quality and safety. Compact 1.6 mm length, 0.95 mm thickness, and 0.8 mm depth dimensions.

Packaging is tape and reel for automated assembly processes. Explore more high-quality electronic components including Varistors on EnvMart for diverse industrial and laboratory applications.
