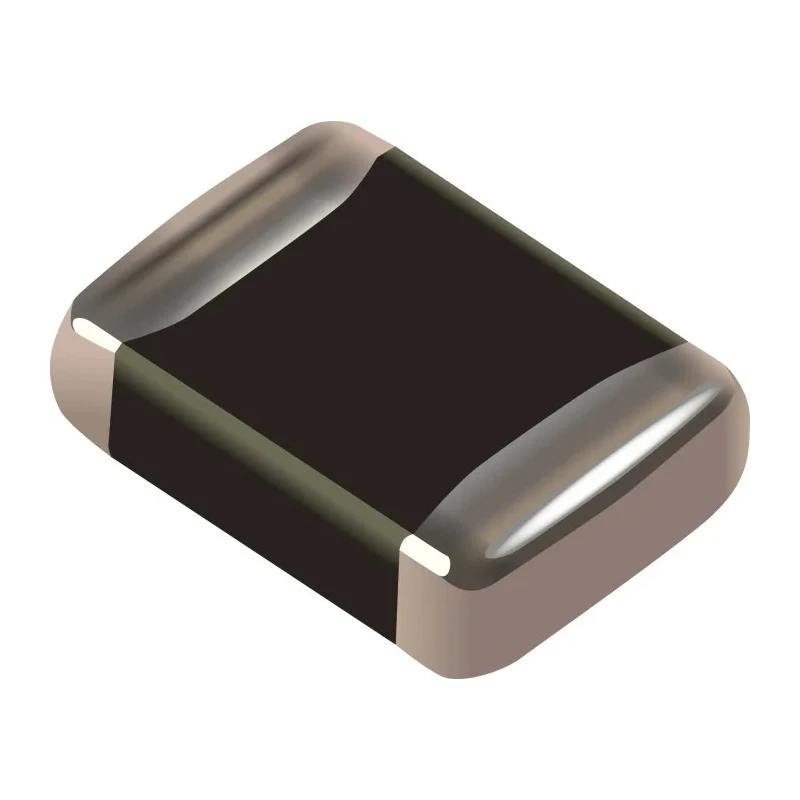

Bourns Surface Mount AVHT Varistor 1.1 nF Capacitance 2.5 A Clamping Voltage 77 V Varistor Voltage 47 V AV30K1210401NIR1HT
Specifications
| Country of Origin | Slovenia |
|---|---|
| Brand | Bourns |
| Material | Metal |
| THICKNESS | 1.3mm |
| Length | 3.2mm |
| Model | AV30K1210401NIR1HT |
| Depth | 2.5mm |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | AVHT |
| Energy Rating | 2.3J |
| Maximum Operating Temperature | 150°C |
| Capacitance | 1.1nF |
| Minimum Operating Temperature | -55°C |
| Maximum dc Voltage | 34V dc |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Termination Style | Surface Mount |
| Maximum AC Voltage | 30V ac |
| Clamping Voltage VC | 77V |
| Clamping Current | 2.5A |
| Maximum Surge Current | 400A |
| Varistor Voltage | 47 V |
Key Features
- Features a capacitance of 1.1 nF for effective surge protection.
- Clamping voltage is 77 V with varistor voltage rated at 47 V.
- Supports clamping current of 2.5 A ensuring reliable transient absorption.
- Constructed in compact 1210 package suitable for surface mounting.
- Operates across a wide temperature range from -55°C to 150°C.
- Metal material construction offers durability and performance.
- Compliant with RoHS standards for environmental safety.
- Designed for use in automotive electronic systems and transient voltage suppression.
Product Description
Bourns AV30K1210401NIR1HT is a surface mount AVHT series varistor designed to provide transient voltage suppression in electronic circuits. This component features a capacitance of 1.1 nF and is capable of handling a clamping current of 2.5 A, making it ideal for automotive and industrial applications requiring reliable surge protection from voltage transients.
The varistor voltage is rated at 47 V with a clamping voltage of 77 V, ensuring effective suppression of destructive voltage surges. It operates efficiently within a temperature range of -55°C to 150°C, supporting harsh environmental conditions encountered in automotive electronics such as anti-lock brake systems and direct ignition systems.
Its compact 1210 package type supports surface mount technology, saving PCB space while maintaining electrical performance. Constructed from metal material, the Varistor offers robust durability and consistent operation under continuous exposure to surges and voltage spikes. Additionally, it is RoHS compliant, promoting environmental safety and adherence to industry regulations.
The device is supplied in tape and reel packaging, facilitating automated pick-and-place assembly processes. Its series designation is AVHT, known for excellent transient energy distribution and a wide range of current and energy handling capabilities.
Features a capacitance of 1.1 nF for efficient surge protection. Withstands clamping current of 2.5 A ensuring security against power spikes. Compact 1210 surface mount package suitable for dense PCB layouts. Wide operating temperature range from -55°C to 150°C supports harsh environments.
Metal material construction for enhanced durability and performance. Compliance with RoHS directives for eco-friendly usage. Tape and reel packaging for streamlined assembly automation. Compatible with automotive electronic protection circuits such as ABS and ignition systems.
This product is ideal for industrial electronics, automotive systems, and other applications requiring reliable transient voltage suppression and surge protection. Explore additional Bourns components and surge protection solutions on EnvMart for comprehensive electronics protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this varistor is 1.1 nF, providing effective surge protection.
The clamping voltage for the AV30K1210401NIR1HT is 77 V, which helps suppress voltage transients.
It can handle a clamping current of 2.5 A, ensuring reliable transient absorption.
The operating temperature range is from -55°C to 150°C, suitable for harsh environments.
This varistor has dimensions of 3.2 mm in length, 2.5 mm in depth, and a thickness of 1.3 mm.
The maximum surge current for this varistor is 400 A, providing robust protection against voltage spikes.
It is supplied in tape and reel packaging, which facilitates automated assembly processes.
This varistor is constructed from metal material, which contributes to its durability and performance.
Yes, it is compliant with RoHS standards, promoting environmental safety.
It is designed for use in automotive electronic systems and transient voltage suppression applications.
The varistor voltage is rated at 47 V, which is crucial for effective surge protection.
The series designation is AVHT, known for excellent transient energy distribution capabilities.
